Diversity Setup

Diversity is a DSQD feature that safeguards against loss of audio signal caused by RF interference. The DSQD archi-
tecture allows three different types of diversity reception. Once chosen, the diversity mode is shown on other screens
with a link icon. (Visit the DSQD page on lectrosonics.com for a video with more details on Diversity.)

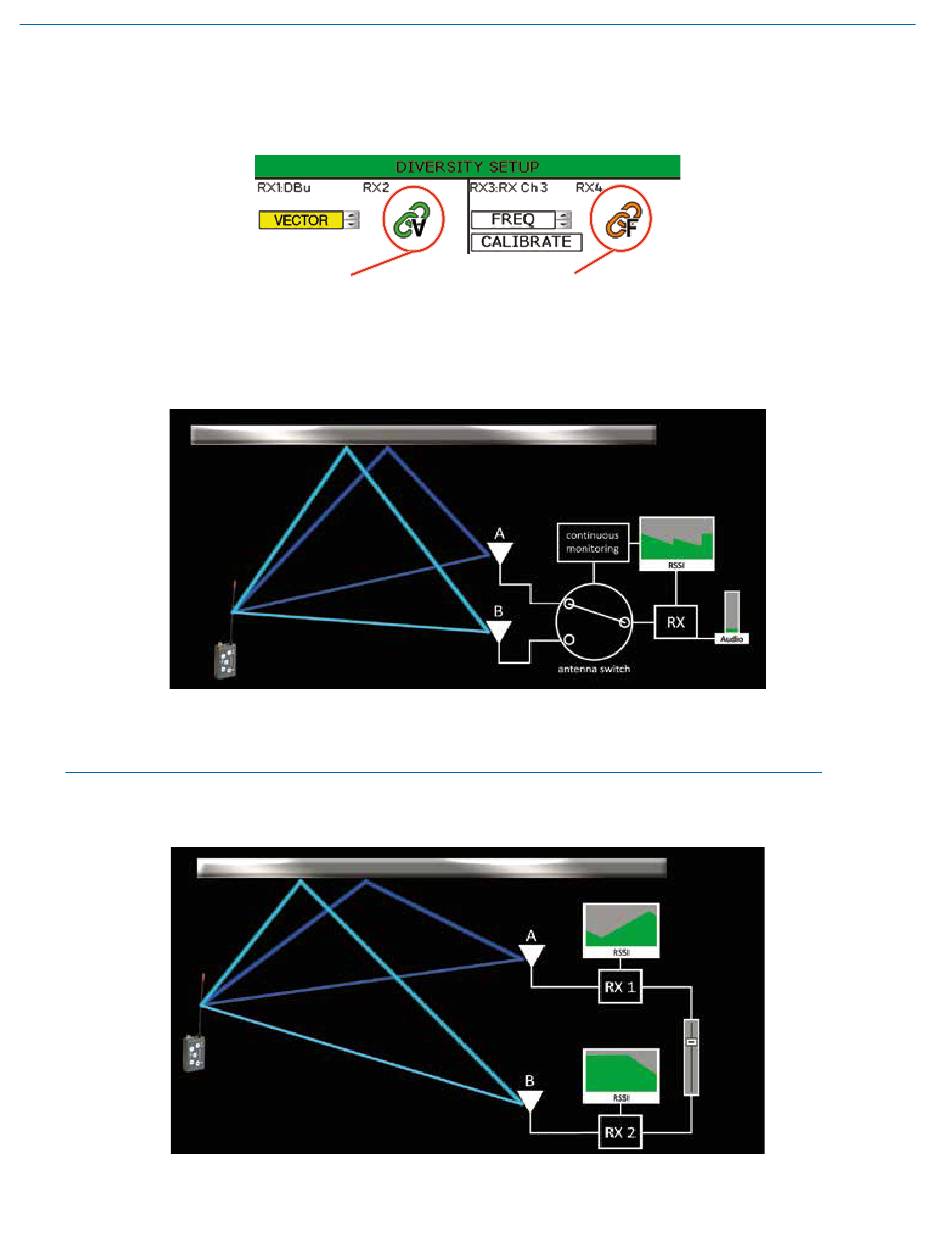

• Switched: Of the two antennas available on the DSQD, the receiver selects the antenna with the best signal. In
this mode, there are four receivers available.
• Vector: In this mode, two receiver channels can be "paired" as one receiver. Either Channels 1 and 2 or channels 3
and 4 can be combined into a pair. One receiver in a pair is fixed on Antenna A and the other receiver in a pair is fixed
on Antenna B. The DSQD automatically and optimally combines the intermediate frequency signals.
NOTE: Vector diversity is available in units with serial numbers higher than 6500661 in DSQD and 6500601 in
DSQD/AES3. In units with earlier serial numbers, ratio diversity is available.
