Instruction Manual
Q
uick
S
tart
G
uide

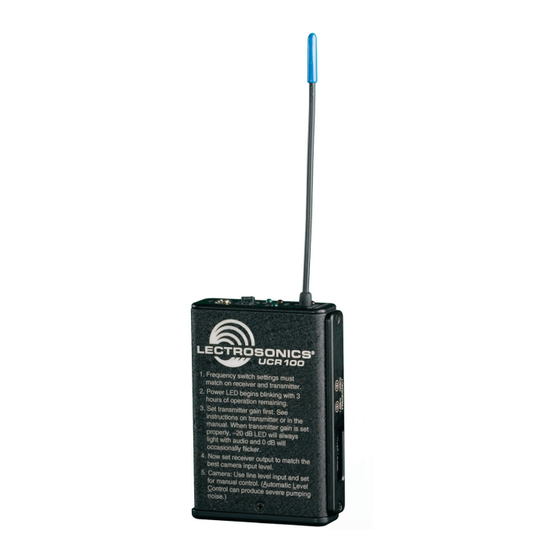

Compact Receiver
UCR100
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/manuals
U.S. Patent 7,225,135
07 july 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics UCR100
Summary of Contents for Lectrosonics UCR100
- Page 1 Compact Receiver UCR100 U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down- load the most current...
- Page 2 Important Note: Before using transmitters with Important Note: Before using transmitters with Important Note: Before using transmitters with the UCR100 Receiver, make sure they are set to the UCR100 Receiver, make sure they are set to the UCR100 Receiver, make sure they are set to 100 Series Compatibility Mode.
- Page 3 Selecting a Clear Frequency, Checking for Interference Turn all transmitters OFF. Turn the UCR100 ON. Slide open the door to expose the frequency select switches. Set the 100 kHz switch to “8.” Rotate the 1.6 MHz switch to a position where the green RF LED on the front panel does NOT light up.
- Page 4 8. Set the manual input level control on the camera or mixer to a point just above the middle of the control range (i.e. set it at “7” on a scale of 1 to 10). LECTROSONICS, INC.
- Page 5 UCR100 must be set by listening rather than using the LEDs. This will reduce the “breathing” effect on the audio caused by the AGC (automatic gain control).
- Page 6 LECTROSONICS, INC.
- Page 7 XLR unbal; pin 2 (+) with pins 1 and 3 jumpered; 100 ohm resistor MC55 - 3.5mm mono mini plug to XLR male; 15” long; converts unbalanced line level to balanced mic level; 45dB attenuator; built-in caps bypass phantom power www.lectrosonics.com...
