Q
uick
S
tart
G
uide

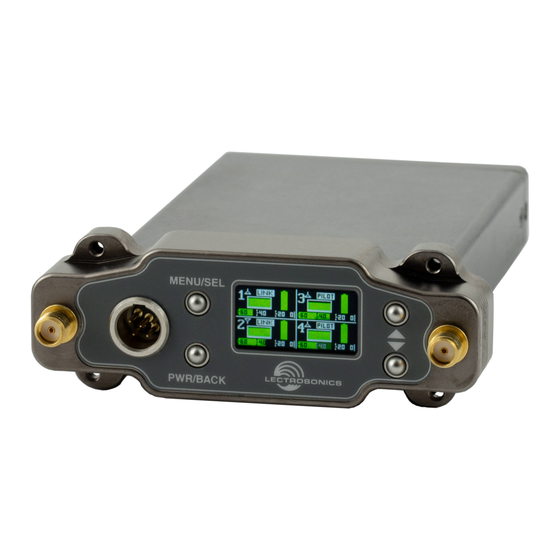

DSR4
Four Channel Digital Slot Receiver
DSR4-A1B1, DSR4-B1C1, DSR4-941, DSR4-961
scan for our DSR4
Deep Dive product videos
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist
with initial setup and operation of
your Lectrosonics product.
For a detailed user manual,
download the most current
www.lectrosonics.com
version at:
30 August 2023
Advertisement
Table of Contents
Related Manuals for Lectrosonics DSR4
Summary of Contents for Lectrosonics DSR4
- Page 1 DSR4 Four Channel Digital Slot Receiver DSR4-A1B1, DSR4-B1C1, DSR4-941, DSR4-961 scan for our DSR4 Deep Dive product videos Fill in for your records: This guide is intended to assist with initial setup and operation of Serial Number: your Lectrosonics product.
- Page 2 DSR4 draws up to 700mA at 7VDC. DO NOT drop it in the camera to “see what happens.” Consult with your camera manufacturer FIRST before attempting to use this receiver in-slot.
-
Page 3: Technical Description
Technical Description The DSR4 digital 4-channel receiver is a versatile slot receiver, equally appropriate for bag use, as well as reality TV and run and gun applica- tions. Extremely high Third Order Intercept (IP3) performance of +15 dBm, 24-bit/48 kHz audio performance, and AES-256 CTR mode en- cryption ensure that professionals in all audio disciplines have the tools needed to get the job done, even in extremely tough environments. -
Page 4: Audio Output Level
To assist in matching the audio levels of equipment connected to the DSR4, a 1 kHz audio test tone, adjustable from -50 to +7 dBu in 1 dB increments, is available at the outputs. If using AES3 outputs, the level is fixed and cannot be adjusted. - Page 5 Settings can be transferred between transmitter and receiver or receiv- er and receiver. USB Port (just under the front panel) The microB USB port can be used to connect the DSR4 to the Lectro- sonics Wireless Designer software and to perform firmware updates. www.lectrosonics.com...
-
Page 6: Main Window Display
Menu Map on the following pages. IR Reflector Purpose & Installation Some users, especally those who plan to use the DSR4 in a rack or closely-packed bag, may find syncing difficult due to the close spacing near the IR window. For these users, we include an IR Reflector (P/N 27372) and Adhesive Strip (P/N 27373). - Page 7 “IR PORT” engraving. Press firmly with fingers to adhere the reflec- tor to the DSR4. The bond is strong but can be removed if needed. You will need another adhesive strip to re-adhere (see Accessory pages for re-order information).
- Page 8 DSR4 LCD Menu Map The menus presented on the LCD are ar- ranged in a straightforward manner, with those that are likely to be used more often located at the top of the tree. You’ll notice that the menu headers are now in color, with symbols indicative of the menu section.
- Page 9 Y e s gle. A b o u t D S R 4 A b o u t B a n d A 1 B 1 to go back. V 1 . 0 5 / 1 . 0 1 www.lectrosonics.com...
-
Page 10: Supplied Parts And Accessories
Reflector. Swivelling Whip Antenna with Standard SMA Connector, Block 28979 19. Ships with A1B1 units only. Replacement screws (4) for 36016 DSR4 mounting bezel kit. AMJ22 Swivelling Whip Antenna with ACOAXTX Standard SMA Connector, Block Antenna, Coaxial, SMA Plug; 22. Ships with A1B1 and B1C1 Specify Block. - Page 11 MCTA5TA3F2 DSR4EXT Audio cable for portable digital Adapter kit for DSR4 re- receivers, TA5F to two TA3F con- ceiver, two TA5 audio output nectors, 18” cable. For two analog jacks, locking power con- balanced receiver outputs, or nector, includes 6’ power two AES digital pairs (four audio cord.
- Page 12 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
