6. Install one side of the front tie bracket (Part
#25991) into the side panel opening in one of the
receivers. Insert the screws, but do not tighten
them completely at this point.
7. Remove the four cap screws from the adjacent rear panels, and then use them to attach the rear tie
bracket. Do not tighten the screws completely.
8. After front and rear tie brackets are installed, place
the receivers on a flat surface so the that the front
panels are even with each other. Hold the receivers
in place and tighten all cap screws on the front and
rear brackets.
Rio Rancho, NM

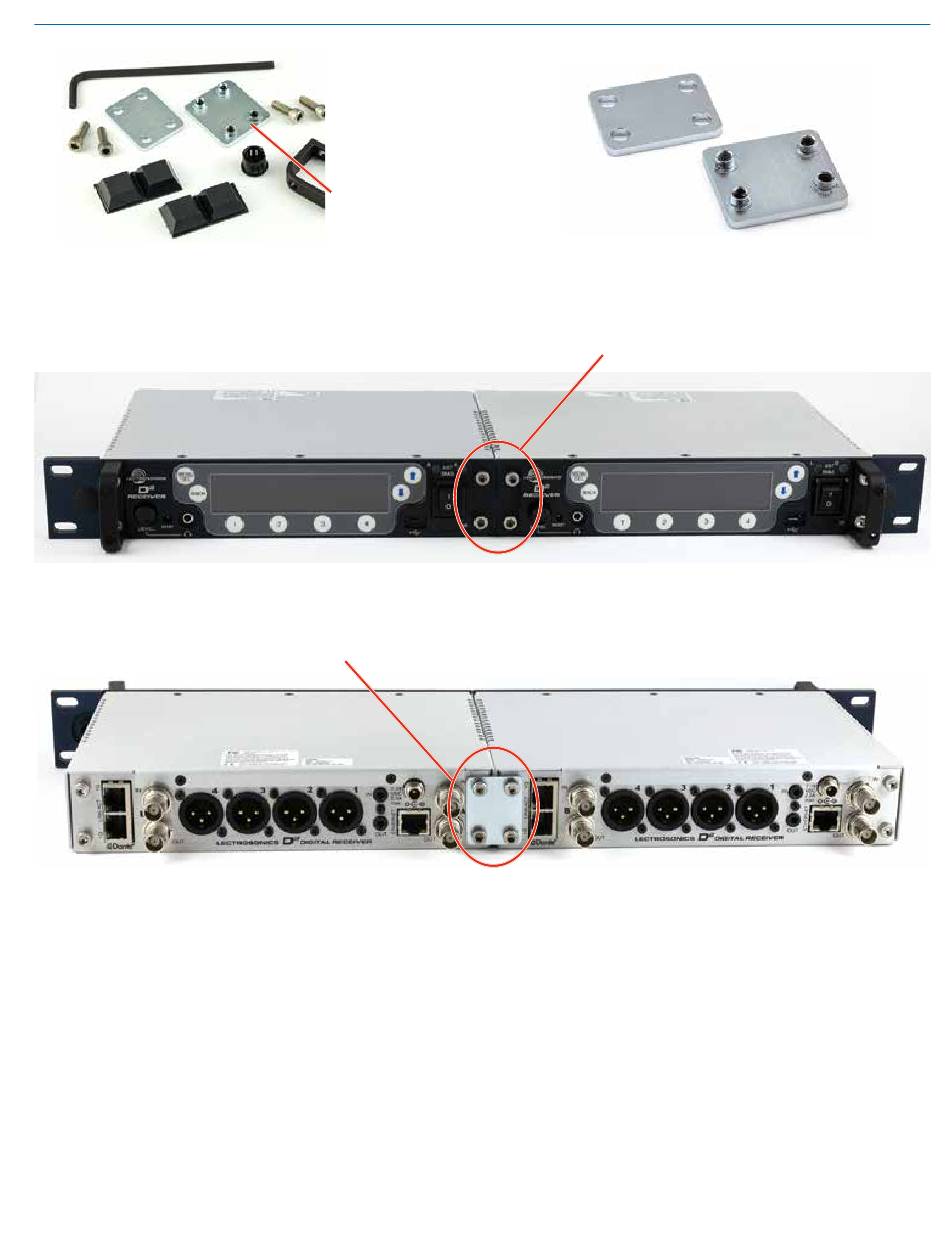

Tensioning lock
nuts on the rear
side of the bracket
Rear tie bracket
Front tie bracket
(Part #25991)
Slide the other receiver over the tie bracket
and insert the screws, but do not tighten
them completely until the rear tie bracket is
installed.
NOTE: If the supplied rubber feet are installed
on under side of DSQD, it will not fit in a rack
unless there is an empty space below it.
Digital Receiver
(Part #25990)
