Lectrosonics M2R Instruction Manual

Digital iem receiver with encryption
Hide thumbs Also See for M2R:
Table of Contents

Advertisement

Quick Links

Download this manual

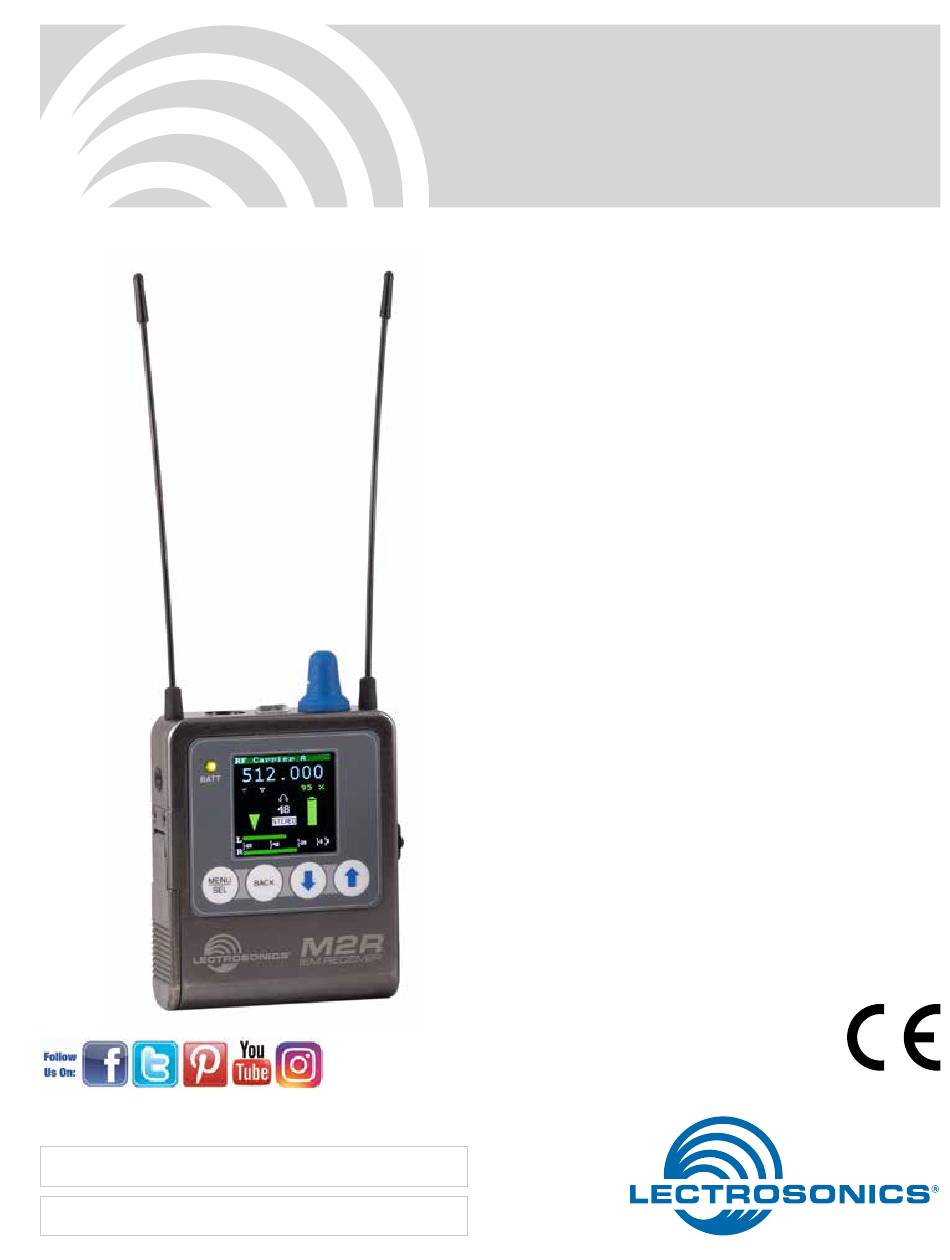

M2R-X*
Digital IEM Receiver with Encryption
Fill in for your records:
Serial Number:
Purchase Date:
* M2R-X is a firmware option for the
M2R allowing encryption and removing
the flexlist feature and analog IFB capability.

Quick Start Summary

1) Install receiver batteries (pg. 6).
2) Power unit on with On/Off and Volume knob (pg. 4).
3) Scan for an available frequency (pg.9).
4) Sync the receiver with a transmitter (pg. 10).
5) Enable RF in transmitter (see transmitter manual).
6) Send audio (pg. 9).
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2R and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics M2R

Summary of Contents for Lectrosonics M2R

  • Page 1: Quick Start Summary

    INSTRUCTION MANUAL M2R-X* Digital IEM Receiver with Encryption * M2R-X is a firmware option for the M2R allowing encryption and removing the flexlist feature and analog IFB capability. Quick Start Summary 1) Install receiver batteries (pg. 6). 2) Power unit on with On/Off and Volume knob (pg. 4).
  • Page 2 M2R-X LECTROSONICS, INC.

  • Page 3: Table Of Contents

    Digital IEM Receiver with Encryption Table of Contents Quick Start Summary ............1 M2R Digital IEM Receiver ..........4 Encryption ................4 Smart Tuning (SmartTune ) ..........4 ™ RF Front-End with Tracking Filter ........4 Panels and Features ............5 Battery Status LED ............6 RF Link LED ...............6 On/Off and Volume Knob ...........6...

  • Page 4: M2R Digital Iem Receiver

    Truly entropic encryption keys are first cre- ated by the M2T-X Transmitter. The key is then synced with the M2R-X via the IR port. The audio will be en- crypted and can only be decoded and heard if both the transmitter and the receiver have a the matching key.

  • Page 5: Panels And Features

    Digital IEM Receiver with Encryption Panels and Features RF Link LED On/Off and volume knob IR (infrared) Headphone port output Belt clip Battery status mounting sockets port Battery compartment door When on Main Screen, UP Button will turn LEDs on and DOWN Button will turn LEDs off.

  • Page 6: Battery Status Led

    M2R-X Battery Status LED Keypad and LCD Interface When the battery status LED on the keypad glows green the batteries are good. The color changes to red at a midpoint during the runtime. When the LED begins to blink red, only a few minutes remain.

  • Page 7: Installing Batteries

    Digital IEM Receiver with Encryption Installing Batteries LCD Main Window Receiver Diversity Power is provided by two AA batteries. The batteries Name Activity Frequency are connected in series by a plate in the battery door. It is suggested that you use lithium or high capacity NiMH rechargeable batteries.

  • Page 8: Navigating The Menus

    M2R-X Navigating the Menus From the Main Window, press MENU/SEL to enter the menu, then navigate with the UP and DOWN arrows to highlight the desired setup item. Press MENU/SEL to enter the setup screen for that item. Refer to the menu map on the following page.

  • Page 9: M2R-X Lcd Menu Map

    Digital IEM Receiver with Encryption wait Tuning Automatic tuning to SmartTune to... available frequency M2R-X LCD BACK scan Menu Map wait pause Use arrow keys Press BACK to zoom Keep scan freq? Scan BACK scan to tune to desired keep or revert back...

  • Page 10: System Setup Procedure

    It is suggested the IR ports. Hold the M2R receiver IR port close to that you use lithium or high capacity NiMH recharge- the front panel IR port on the transmitter and press GO able batteries.

  • Page 11: Menu Item Descriptions

    Digital IEM Receiver with Encryption Menu Item Descriptions Use the UP and DOWN arrows to roughly tune the receiver by moving the cursor to an open spot. Press MENU/SELECT to zoom in for fine tuning. SmartTune SmartTune™ automates the discovery of a clear operating frequency.

  • Page 12: Frequency

    M2R-X Frequency Limiter Allows manual selection of the operating frequency in Limiter function allows the user to set volume and MHz and KHz, tunable in 25 kHz steps. dynamic range for headphone use. Gain - The default setting (0) is linear, but if volume...

  • Page 13: Clear Scan Data

    About M2R-X being used: Alkaline or Lithium so the remaining Displays general information battery meter on the home about the M2R, including screen is as accurate as serial number and the possible. versions for both FPGA and main firmware running in the receiver.

  • Page 14: Default

    (synced) by the M2R-X with other encryption ca- pable transmitters/receivers via the IR port. When the M2R-X is set to this key type, a menu item named SEND KEY is available to transfer the key to another device.

  • Page 15: Accessories

    (with batteries) Specifications subject to change without notice. Part 35854 LRSHOE This optional kit includes the accessories needed to mount the M2R on a standard cold shoe using the wire belt clip that comes with the receiver. Rio Rancho, NM...

  • Page 16: Wireless Designer Software

    Firmware Update Instructions Firmware updates are made with a file downloaded from the web site and the M2R connected via USB. The USB port on the receiver requires a micro-B male plug on the connecting cable. The other end of the...
  • Page 17 Digital IEM Receiver with Encryption Rio Rancho, NM...

  • Page 18: Service And Repair

    There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping.
  • Page 19 Digital IEM Receiver with Encryption Rio Rancho, NM...
  • Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
