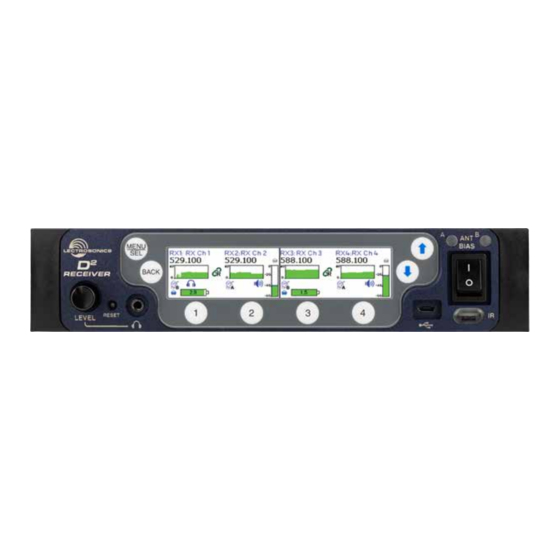

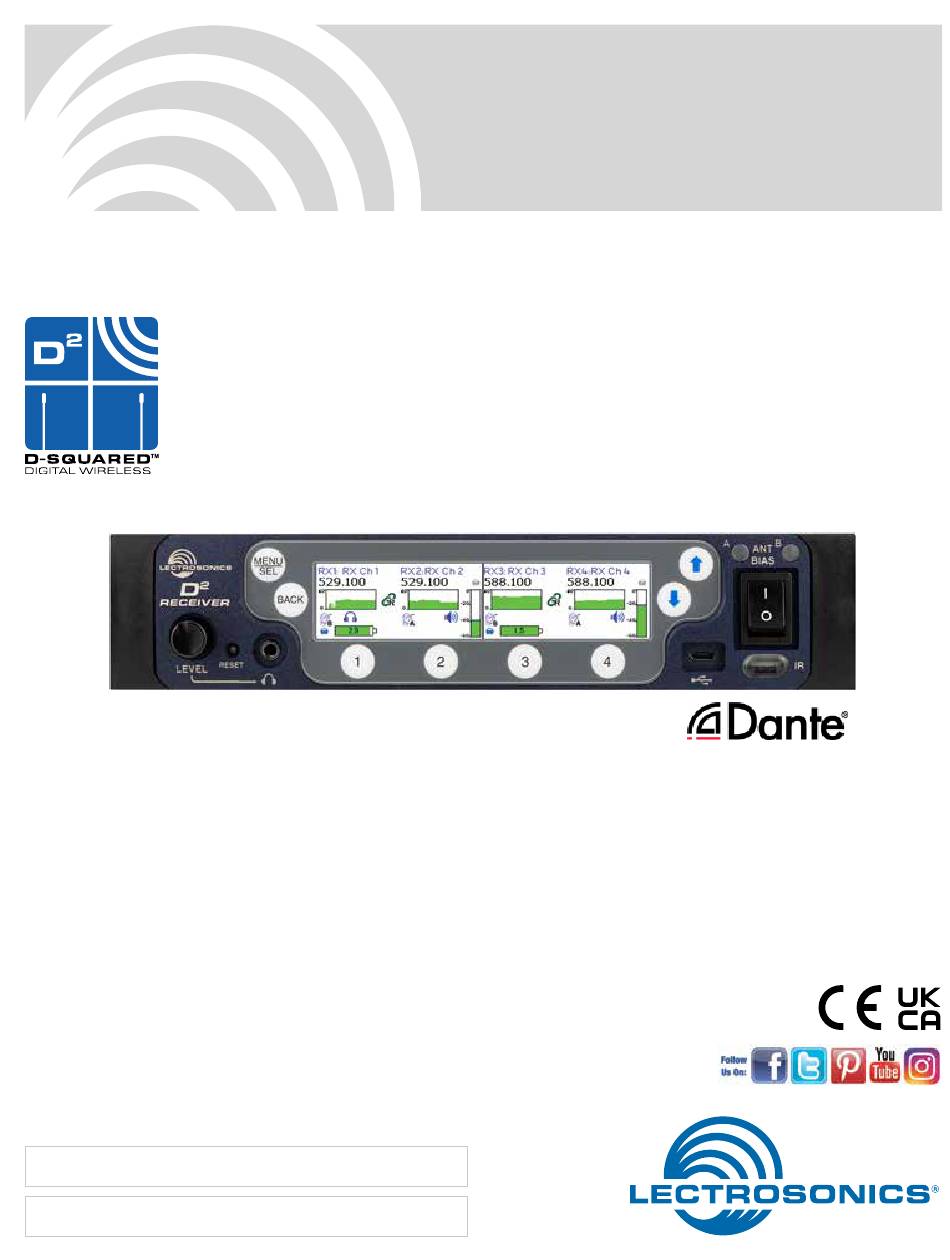

- Page 1 INSTRUCTION MANUAL DSQD 4 Channel Digital Receiver DSQD, DSQD/AES3 Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Table Of Contents
Wireless Designer ..............15 Firmware Update Instructions..........15 without sacrificing audio quality, Lectrosonics imple- Supplied Hardware ..............16 ments AES256 encryption in our digital wireless micro- Unpacking the Unit ............. 16 phone systems. -
Page 3: Digital Hybrid Wireless Technology
Digital Receiver Digital Hybrid Wireless Technology What is Dante? ® All wireless links suffer from channel noise to some degree, Audinate’s patent pending Dante™ technology is a and all wireless microphone systems seek to minimize the flexible Internet Protocol (IP) and Ethernet based digital impact of that noise on the desired signal. -
Page 4: Panels And Features
50 Ohm BNC Antenna B XLR Analog Output Multi-Frame Ethernet Antenna A Or AES3 Outputs on 2 Loop-thru Output Connectors Communication Port Loop-thru Output TA3M Jacks (in Place 50 Ohm BNC of The 2 Dante Ports 50 Ohm BNC Shown) LECTROSONICS, INC. -
Page 5: Ir (Infrared) Port
Digital Receiver IR (infrared) Port Power Inlet Frequency and settings can be transferred to and from The locking DC coaxial inlet requires 7-18 VDC and the DSQD receiver via this port to an IR enabled trans- draws a maximum of 2.5 A at 7 V (with all channels pow- mitter to simplify setup. -
Page 6: Lcd Menu Map
DSQD Manual LCD Menu Map LECTROSONICS, INC. - Page 7 Digital Receiver Press SEL to Use arrow keys to select desired highlight desired SYNC SETTINGS function command BACK Press SEL to IR Sync & Use arrow keys to select desired highlight desired SYNC KEY Encryption BACK function command Press SEL to Use arrow keys to ENCRYPTION KEY confirm...
-
Page 8: Navigating The Menus
Press the UP and DOWN ar- rows to tune the channel into the area of lowest RF activity. Press BACK to save frequency to channel Press BACK to return to the previous screen and save selected settings LECTROSONICS, INC. -
Page 9: Tuning Groups
Digital Receiver Tuning Groups Assign a tuning group to a channel. Tuning Group Setup Tuning groups allow the user to set up a list of frequen- cies, allowing for easy tracking of frequency tuning in the transmitters. Use MENU/SEL to move through the options and UP arrow to make a selection. -
Page 10: Diversity Setup
Diversity is a DSQD feature that safeguards against loss of audio signal caused by RF interference. The DSQD archi- tecture allows three different types of diversity reception. Once chosen, the diversity mode is shown on other screens with a link icon. (Visit the DSQD page on lectrosonics.com for a video with more details on Diversity.) Vector Diversity... - Page 11 Digital Receiver • Frequency: Again, the receiver channels are paired. In this mode, each channel is set to a different frequency. The DSQD automatically uses whichever receiver’s RF signal quality is better. The use of separate frequencies helps minimize dropouts caused by multi-path phenomenon. This technique uses both switched and vector diversity for maximum effectiveness.
-
Page 12: Audio Setup Menu
• Universal: This is the most convenient en- cryption option available. All encryption-capable • D2: Encrypted digital wireless channel Lectrosonics transmitters and receivers contain • DCHX: Two channel encrypted mode. the Universal Key. The key does not have to be generated by the DSQD. -
Page 13: Ir Sync & Encryption Menu
Digital Receiver Choose Transmitter: Choose one of four Rx chan- nels by using the Channel Selector Buttons, 1, 2, 3 or 4. Hold and press the Channel Selector Button to initiate sync. 2. The DSQD will then display a warning to indicate that there is NO KEY! Select CREATE KEY to gen- erate a new key. -
Page 14: Tools And Settings Menu
• DHCP Enable - this is checked if DHCP is used to assign an IP address, Netmask and Default Gate- way to the device. Uncheck this to use “static” IP addressing. • IP Address - This is in “dotted quad” format. If DHCP is enabled, this is read only. LECTROSONICS, INC. -
Page 15: Restore Defaults
USB jack used on computers. a new copy. Refer to Help in Wireless Designer software for the pro- cedure. Links QR codes with links to the Lectrosonics website, the DSQD User Manual online and YouTube video tutorials. Rio Rancho, NM... -
Page 16: Supplied Hardware
• (28885) (4) SCR10 cap screw two (2) DSQD receivers in a rack. • (28951) (2) Short spacer tubes • (28950) (2) Long cap screw • (35664) (4) Rubber foot large • (35959) Hole plug • (A500RA20) (2) Antenna • (A500RA22) (2) Antenna LECTROSONICS, INC. -
Page 17: Optional Accessories
Digital Receiver Optional Accessories 27080 Dante Port Cover ALP690 Antenna Broad bandwidth for multi-channel systems; directional pattern with 4 dBd RF gain; built-in RF amplifier; versatile mounting options SNA600a Antenna Adjustable elements tune center frequency from 550 to 800 MHz; 3/8” x 16 threaded socket and stud with mounting strap included Coaxial Antenna Cable: ARG 15... -
Page 18: Installing Two Dsqd Receivers Into A Singlerack Space
You will usually feel resistance as you tighten the screws - this is normal. 3. Insert the flange bracket (Part #27076) into the open slot in the side of the chassis cover panel. LECTROSONICS, INC. - Page 19 Digital Receiver Rear tie bracket (Part #25990) Tensioning lock Front tie bracket nuts on the rear (Part #25991) side of the bracket Slide the other receiver over the tie bracket 6. Install one side of the front tie bracket (Part and insert the screws, but do not tighten #25991) into the side panel opening in one of the them completely until the rear tie bracket is...
-
Page 20: M2T/Dsqd Rack Mounting Instructions
Cover Panel with the protruding nuts facing rear- ward, affix with two (2) Cap Screws (Part #28885) provided and firmly tighten with the Hex Wrench. See next page. NOTE: Steps 7-11 require parts from the (RMPM2T-1) M2T Single Rack Mount Kit. LECTROSONICS, INC. - Page 21 Digital Receiver M2T Front View Rack Handle (Part #27082) STEP 10 (front) Hole Plug Front Tie Bracket (not shown; (Part #35959) located behind faceplate) STEP 9 (front) Rack Flange STEPS 6 and 7 Bracket Cap Screw (Part #28885) Cap Screws (Part #28885) (Part # 27076) Front Tie Bracket (Part #25991)
- Page 22 Hole Plug (Part #35959) into the open antenna hole in the Front Fill Panel (Part #27081) by aligning the flat sides of the plug with those of the bracket hole and pushing into place until flush. LECTROSONICS, INC.
- Page 23 Digital Receiver Mounting M2T To DSQD When mounting two M2Ts or two DSQDs together, the units lie flush together as shown. This is not the case with an M2T and a DSQD, as the DSQD housing is shorter and the spacer tubes are needed. Two M2T units Two DSQD units When attaching an M2T to a DSQD unit, the preferred configuration (when viewing from the back side) is to have the...
-
Page 24: Troubleshooting
DSQD from its power source, remove the top cover and inspect the pink front fuse. You will not void the war- ranty by doing so: This is a standard 4A, 32VDC mini blade (automotive type) fuse. You can obtain one from any automotive or electrical supply shop, or order one from us (part #21941). Replace if necessary. LECTROSONICS, INC. -
Page 25: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 26 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by Lectrosonics, Inc. could void the user’s authority to operate it. ISEDC Notices: Per RSS-210 This device operates on a no-protection no-interference basis.
- Page 27 Digital Receiver Rio Rancho, NM...
- Page 28 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
