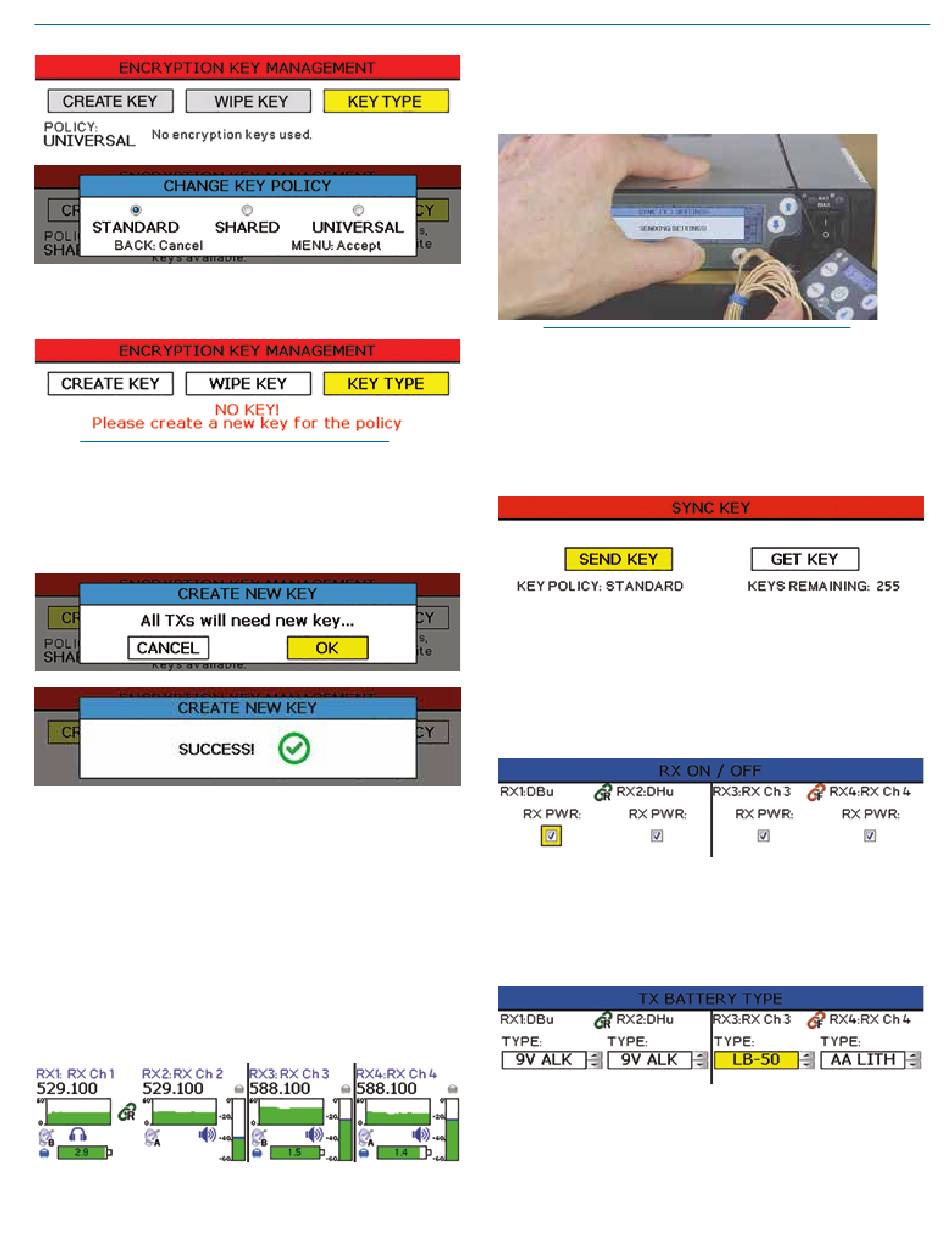

2. The DSQD will then display a warning to indicate
that there is NO KEY! Select CREATE KEY to gen-
erate a new key.
NOTE: When Universal Key type is selected,
there is no prompt to create key. See Encryption
Key Management for more information.
3. A message will pop up on the screen warning the
user that all transmitters will need a new key. Se-
lect OK. The creation of a new key is confirmed.
4. Sync new key with transmitter (see Sync Key). The
transmitted audio will then be encrypted with the
new key.

Sync Settings

Allows sending or retrieving setup data, including fre-
quency, name and talkback settings, via the IR port.
There are two ways to initiate a sync.
Sync options: Choose to send frequency, send all
settings, retrieve (get) frequency or retrieve (get) all
settings from a transmitter. Use the UP and DOWN
arrows to select a function and MENU/SEL to initi-
ate sync.
Rio Rancho, NM
Choose Transmitter: Choose one of four Rx chan-
nels by using the Channel Selector Buttons, 1, 2,
3 or 4. Hold and press the Channel Selector Button
to initiate sync.
NOTE: You must position the transmitter's IR port
directly in front of the DSQD IR port, as closely as
possible, to guarantee a successful sync. A message
will appear on the DSQD if the sync was successful or
failed.
Sync Key
Send or retrieve (get) encryption keys.
Tools and Settings Menu

RX On/Off

Use UP and DOWN arrows to toggle power on and off
(to conserve power consumption).

TX Battery Type

Set battery type for each channel. Use MENU/SEL to
set and move cursor and the UP and DOWN arrows to
change values.
TX Battery Timer Alert
Set transmitter battery timer alerts for each channel.
Choose to enable/disable alert, set time in hour and min-
utes and reset timer. Use MENU/SEL to set and move
the cursor and the UP and DOWN arrows to change
values.
Digital Receiver
13
