DSQD Manual
Troubleshooting
RF Meter Not Showing Green
RF Level status colors and their meanings are explained on Page 8.
No Power/Intermittent Power
If you have checked your power supply and all of your external connections, you may have a blown fuse. Disconnect

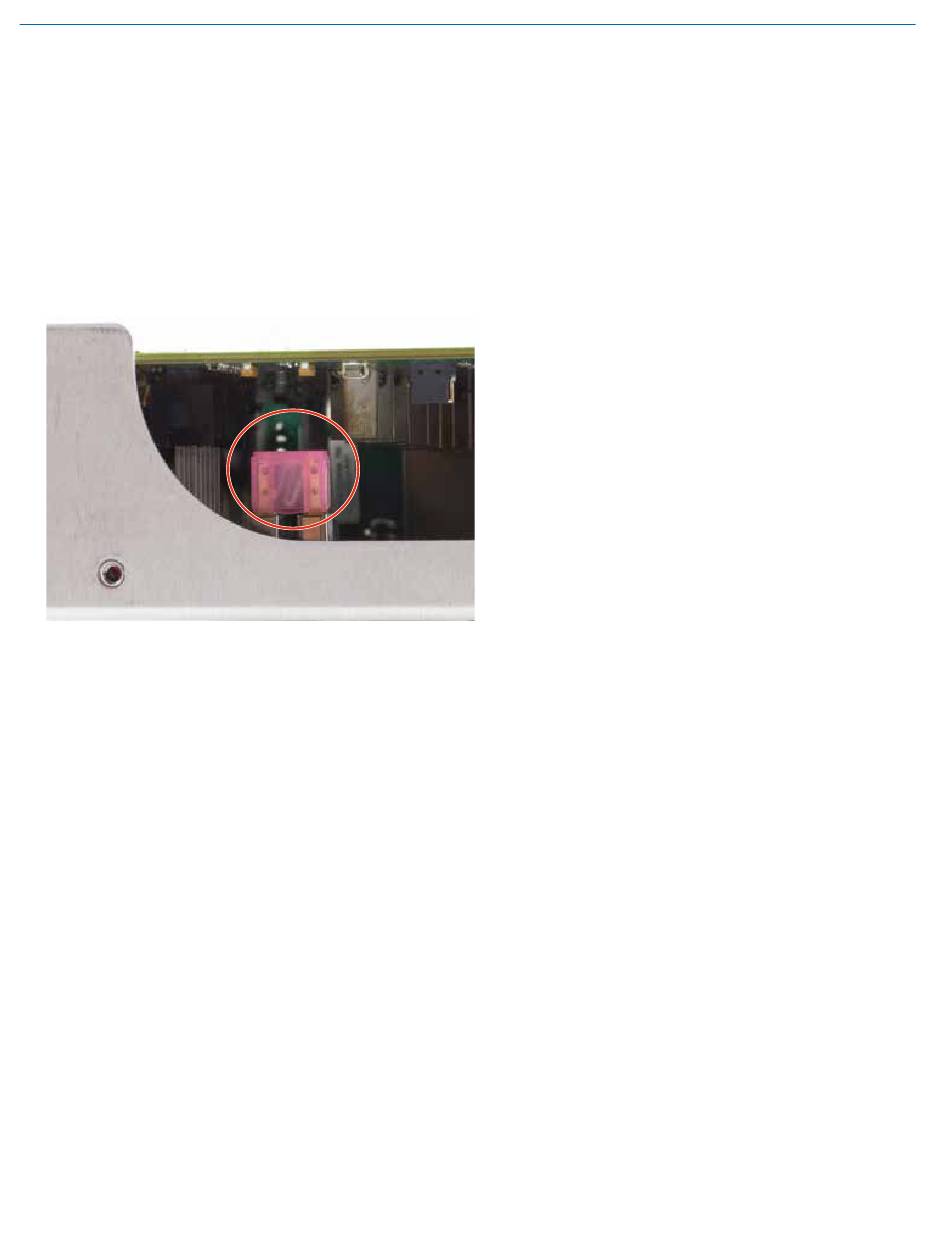

your DSQD from its power source, remove the top cover and inspect the pink front fuse. You will not void the war-
ranty by doing so:
This is a standard 4A, 32VDC mini blade (automotive type) fuse. You can obtain one from any automotive or electrical
supply shop, or order one from us (part #21941). Replace if necessary.
24
LECTROSONICS, INC.
