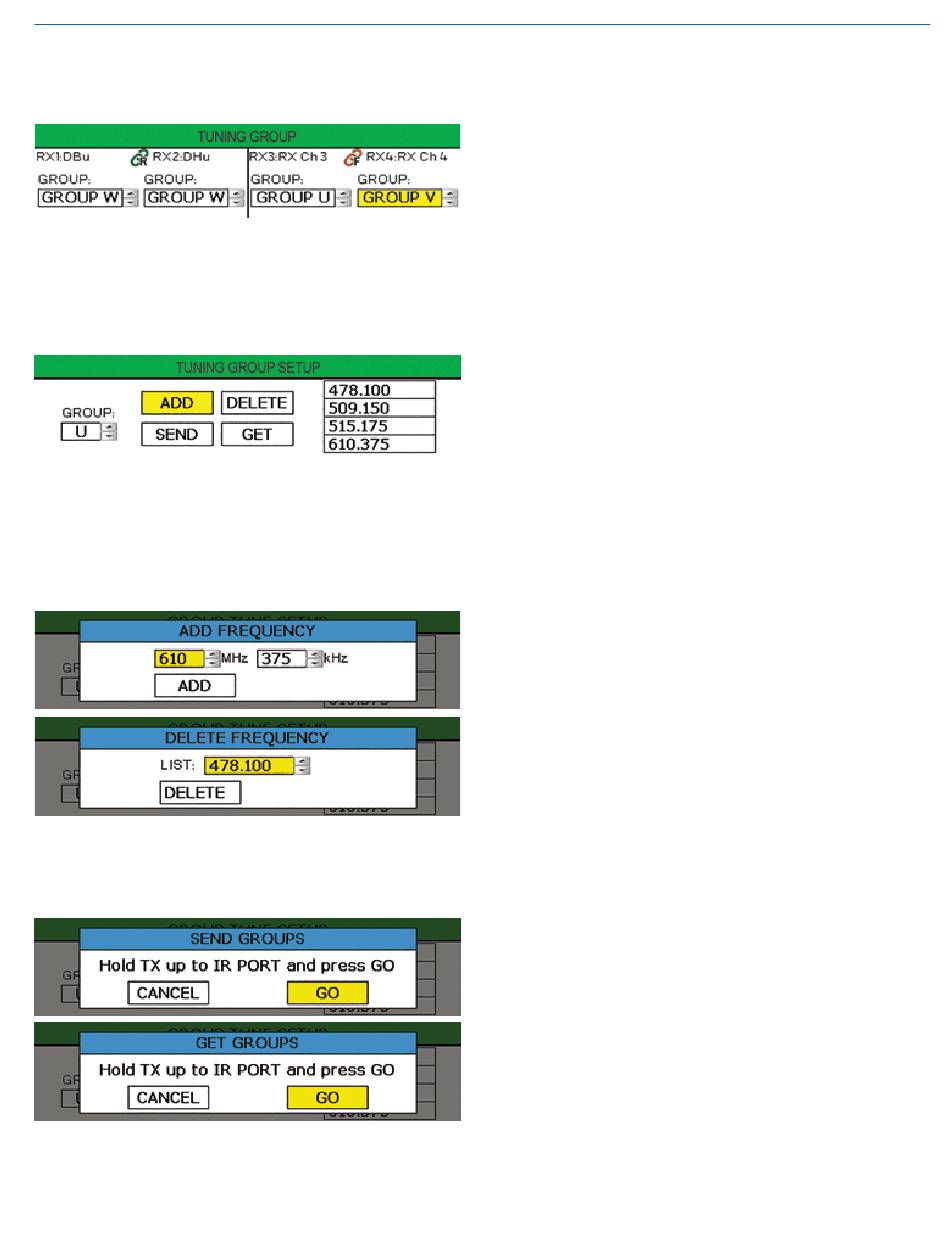

Tuning Groups

Assign a tuning group to a channel.

Tuning Group Setup

Tuning groups allow the user to set up a list of frequen-
cies, allowing for easy tracking of frequency tuning in the
transmitters. Use MENU/SEL to move through the
options and UP arrow to make a selection.
• Four tuning groups are available: U, V, W, X.
• Each group has the option to add or delete a fre-
quency from the list on the right. Use the UP and
DOWN arrows to change frequencies, MENU/SEL
to move through the options, and the UP arrow to
select ADD or DELETE. Push the BACK button to
return to the Group Tune Setup Screen.
• Each group can store up to 32 frequencies.
• The user can then send or get all frequency
groups.
When a tuning group is assigned, the frequency control is
limited to the frequencies contained in the tuning group.
It also limits the available frequencies in the frequency
coordination process.
