Mounting M2T To DSQD
When mounting two M2Ts or two DSQDs together, the units lie flush together as shown. This is not the case with an
M2T and a DSQD, as the DSQD housing is shorter and the spacer tubes are needed.
When attaching an M2T to a DSQD unit, the preferred configuration (when viewing from the back side) is to have the
DSQD to the left and the M2T to the right. If the units are mounted the opposite way, the mounting plate will partially
block the Dante ports on the DSQD, making it difficult to remove the cables. Having the DSQD on the left as shown
®
below eliminates this inconvenience.
Rio Rancho, NM

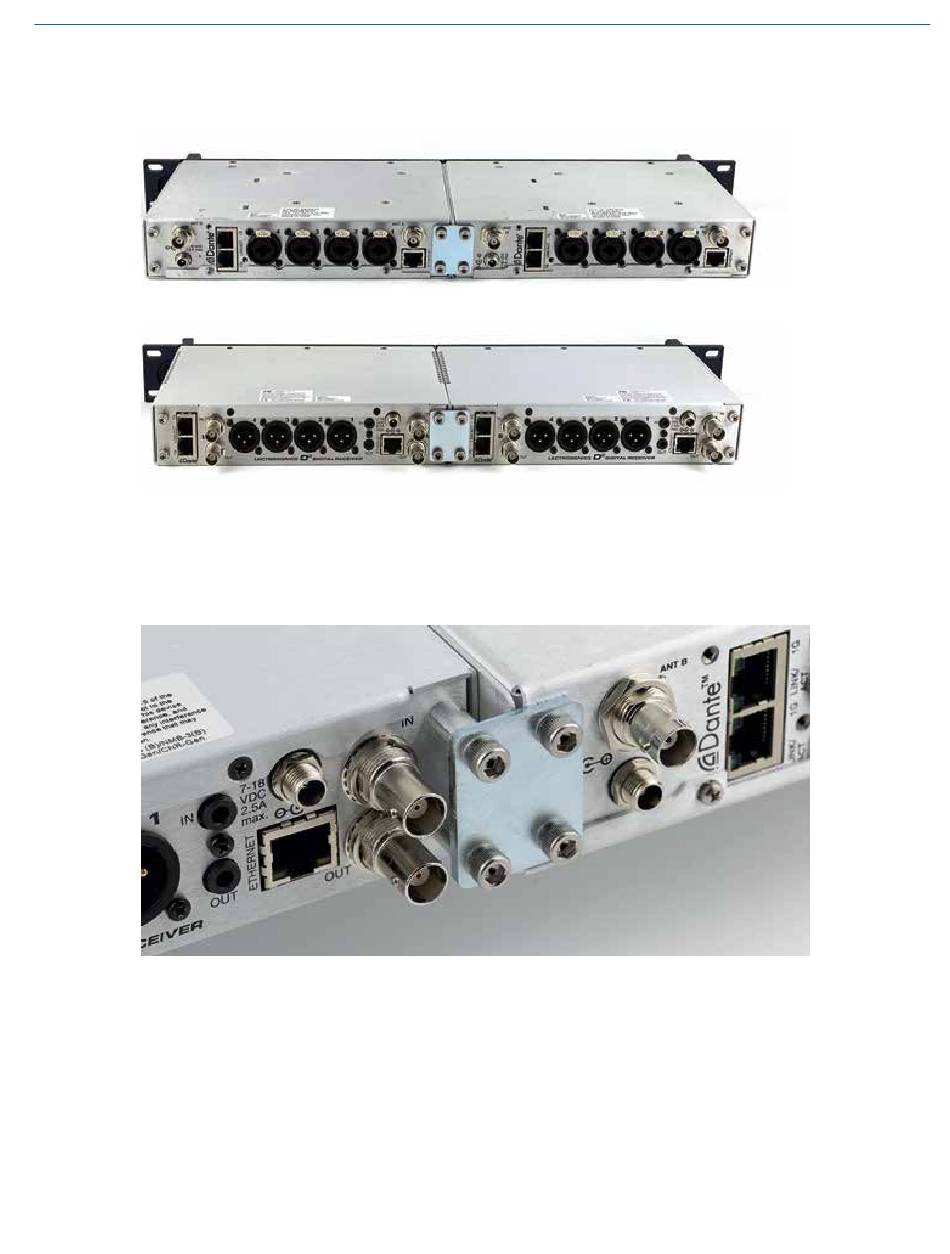

Two M2T units
Two DSQD units
Recommended DSQD-M2T
mounting
