Summary of Contents for Lectrosonics Dante DSQD

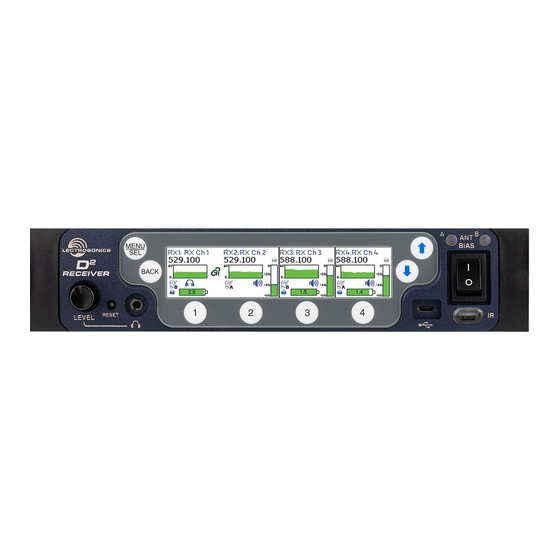

- Page 1 INSTRUCTION MANUAL DSQD 4 Channel Digital Receiver Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
-
Page 2: Table Of Contents
Headphone Volume Adjustment ..........5 centered on the selected frequency. Transmitter Function Buttons ..........5 Dante Ports (if Dante module is installed) ......5 DSP algorithms provide compatibility with Lectrosonics Ethernet Port .................5 DSW and Duet digital wireless transmitters, and with Multi-Frame Communication ..........5 Lectrosonics Digital Hybrid Wireless transmitters. -
Page 3: Digital Hybrid Wireless ® Technology
Digital Receiver Digital Hybrid Wireless Technology What is Dante? ® All wireless links suffer from channel noise to some de- Audinate’s patent pending Dante™ technology is a gree, and all wireless microphone systems seek to mini- flexible Internet Protocol (IP) and Ethernet based digital mize the impact of that noise on the desired signal. -
Page 4: Panels And Features
Headphone Volume Headphone Jack USB Port IR Port Power switch Adjustment Transmitter Function Buttons DSQD Rear Panel Dante Ports Ethernet Port Power Inlet Antenna Jacks Antenna Jacks XLR Analog Output Multi-Frame Connectors 50 Ohm BNC 50 Ohm BNC Communication LECTROSONICS, INC. -
Page 5: Operating Instructions
Boot Screens When powering on the DSQD, three screens appear in IR (infrared) Port the following order: DSQD, Lectrosonics, Home Screen: Frequency and settings can be transferred to and from the DSQD receiver via this port to an IR enabled trans- mitter to simplify setup. -
Page 6: Lcd Menu Map
Use arrow keys to Press SEL to COMPATIBILITY select desired select desired MODES BACK compatibility mode channel Press SEL to Use arrow keys to TALKBACK select desired select desired BACK SETUP channel talkback function Menu Map continued on next page... LECTROSONICS, INC. - Page 7 Digital Receiver Press SEL to Use arrow keys to select desired highlight desired SYNC SETTING function command BACK Press SEL to IR Sync & Use arrow keys to select desired highlight desired SYNC KEY Encryption BACK function command Press SEL to Use arrow keys to ENCRYPTION KEY confirm...
-
Page 8: Quick Start
Assign a tuning group to a transmitter. if mute is on/off. Set transmitter Group Tune Mute Audio Level frequency On/Off On/Off NOTE: Also see Group Tune Setup on next page for more information. Compatibility Mode Transmitter Transmitter Function Battery Life Buttons LECTROSONICS, INC. -
Page 9: Sync Settings
Digital Receiver Sync Settings Frequency Scan Allows sending or retrieving setup data via the IR port. Scan for available frequency. Sync options: Choose to sync frequency, sync all settings, retrieve (get) frequency from a transmitter or retrieve (get) all settings from a transmitter using the UP and DOWN arrows. -
Page 10: Audio Polarity
• Shared: There are an unlimited number of shared keys available. Once generated by the DSQD and transferred to a transmitter, the encryp- tion key is available to be shared (synced) by the transmitter with other transmitters/receivers via the IR port. LECTROSONICS, INC. -
Page 11: Tools And Settings Menu
• Universal: This is the most convenient en- cryption option available. All encryption-capable Front panel settings may be customized as follows: Lectrosonics transmitters and receivers contain the Universal Key. The key does not have to be • LCD brightness: Use UP and DOWN arrows to generated by the DSQD. -
Page 12: Edit Names
DSQD will reboot. About Displays general information about the DSQD, including serial number and hardware, firmware and FPGA versions. Links QR codes with links to the Lectrosonics website, the DSQD User Manual online and YouTube video tutorials. Diagnostic Meters LECTROSONICS, INC. -
Page 13: Specifications And Features
Digital Receiver Specifications and Features Operating Spectrum: 470.100 - 614.375 MHz Frequency Adjustment Range: 25 kHz steps Sampling Size and Rate: 24-bit, 48 kHz Digital Modulation: 8PSK with Forward Error Correction Data Encoding: Proprietary ADPCM Encryption: AES 256-CTR (per FIPS 197 and FIPS 140-2) Latency: Digital Source: 1.0 ms plus Dante network... -
Page 14: Wireless Designer Software And Usb Driver
Launch the installer and follow the screen prompts. When the installation is complete, the confirmation screen will appear. Click on Finish to complete the installation. I Agree on the EULA (end user license agreement) must be checked to continue the installation. LECTROSONICS, INC. -
Page 15: Software For Mac ® Os X Operating Systems Installation
Digital Receiver Software for Mac OS X Operating Systems ® must uninstall it before attempting to install a new copy. Drag the Wireless Designer Dock icon to the Installation desktop to remove it. Using only the Firefox web browser, open Wireless De- Software Installer signer. -
Page 16: Supplied Hardware
(25990) Bracket rear tie • (25991) Bracket front tie • (27076) Rack flange bracket • (27082) Rack handle • (28885) (4) SCR10 cap screw • (35664) (4) Rubber foot large • (35959) Hole plug • (A500RA20) (2) Antenna LECTROSONICS, INC. -
Page 17: Optional Accessories
Digital Receiver Optional Accessories DCR15/1A66U ALP690 Antenna Broad bandwidth for multi-channel systems; directional pattern with 4 dBd RF gain; built-in RF amplifier; versatile mounting options 27080 Dante Port Cover SNA600a Antenna Adjustable elements tune center frequency from 550 Coaxial Antenna Cable: to 800 MHz;... -
Page 18: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 19 Digital Receiver ISEDC Notices: Per RSS-210 This device operates on a no-protection no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. Please consult Industry Canada’s document CPC-2-1-28, Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details.
-
Page 20: Limited One Year Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
