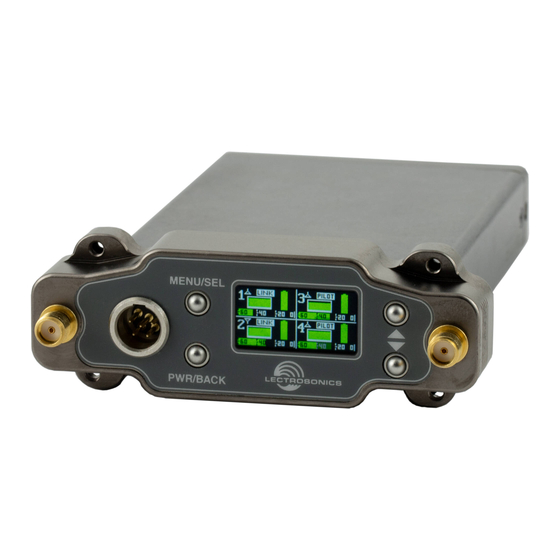

DSR4
Four Channel Digital Slot Receiver
DSR4-A1B1, DSR4-B1C1, DSR4-941, DSR4-961
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist
with initial setup and operation of
your Lectrosonics product.
For a detailed user manual,
download the most current
www.lectrosonics.com
version at:
24 January 2023
Advertisement
Table of Contents
Related Manuals for Lectrosonics DSR4
Summary of Contents for Lectrosonics DSR4
- Page 1 DSR4 Four Channel Digital Slot Receiver DSR4-A1B1, DSR4-B1C1, DSR4-941, DSR4-961 Fill in for your records: This guide is intended to assist with initial setup and operation of Serial Number: your Lectrosonics product. For a detailed user manual,...
- Page 2 LECTROSONICS, INC.
-
Page 3: Technical Description
The DSR4 digital 4-channel re- obtain maximum energy. The four ceiver is a versatile slot receiver, receivers in the DSR4 can be use equally appropriate for bag use, separately or combined in pairs. as well as reality TV and run and gun applications. -
Page 4: Audio Output Level
To assist in matching the audio Desired high frequency signals levels of equipment connected to having some coherence such as the DSR4, a 1 kHz audio test tone, speech sibilance and tones are adjustable from -50 to +7 dBu in 1 not affected. -
Page 5: Main Window Display
Panel Controls USB Port (just under the front panel) The microB USB port can be used to connect the DSR4 to the Lectrosonics Wireless Designer software and to perform firmware updates. Main Window MENU/SEL Button... -
Page 6: Navigating The Menus
BOTTOM PLATE. • Connect power to the re- ceiver. • Set the COMPAT (compatibil- ity) mode for the transmitters to be used. • Find clear operating frequen- cies for one or both receivers using SmartTune or manual scanning. LECTROSONICS, INC. - Page 7 NOT drop it in the camera to “see what happens.” Consult with your camera manufacturer FIRST before attempting to use this receiver in-slot. The DSR4 is intended for use in slot devices which can supply enough current safely and without damage to fuses or poly-fused circuits. ...
- Page 8 DSR4 LCD Menu Map The menus presented on the LCD are ar- ranged in a straightforward manner, with those that are likely to be used more often located at the top of the tree. You’ll notice that the menu headers are now in color, with symbols indicative of the menu section.
- Page 9 A b o u t D S R 4 A b o u t B a n d A 1 B 1 to go back. V 0 . 2 4 / 0 . 2 2 www.lectrosonics.com...
-
Page 10: Supplied Parts And Accessories
Supplied Parts 28979 Replacement screws (4) for 36016 DSR4 mounting bezel kit. and Accessories 36016 DSR4 mounting bezel for AMJ19 Octopack and Quadpack Swivelling Whip Antenna with Standard SMA Connector, Block ACOAXTX 19. Ships with A1B1 units only. Antenna, Coaxial, SMA Plug;... - Page 11 (four audio channels), DSR4EXT into mixer or recorder inputs. Adapter kit for DSR4 re- MCTA5TPT2 ceiver, two TA5 audio output jacks, locking power con- Audio cable for portable digital nector, includes 6’ power receivers, TA5F to two stripped cord.
- Page 12 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
