Lectrosonics Dante DSQD/AES3 Instruction Manual page 21

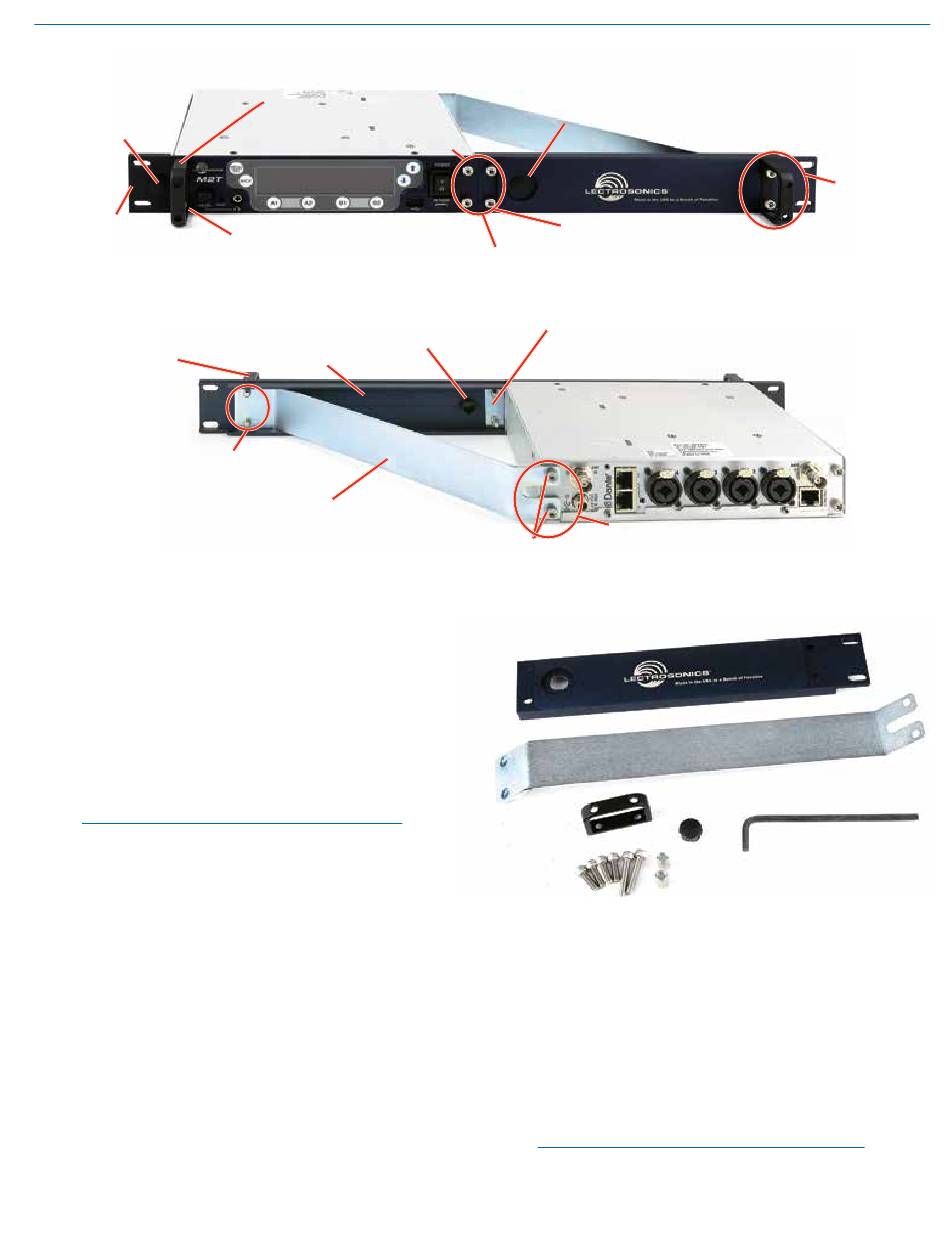

M2T Front View
Hole Plug
(Part #35959)
Rack Flange
Bracket
(Part # 27076)
Rack Handle
(Part #27082)
STEP 9
Items Included in RMPM2T-1 Kit:
• Technical Data Sheet
• (27077) Support Bracket
• (27081) Front Fill Panel
• (27082) Rack handle
• (28885) (4) SCR10 cap screw
• (35800) Hex L key wrench
• (35959) Hole plug
• (28950) (2) Long mounting screws*
• (28951) (2) Short spacer tubes*
NOTE: Starred (*) items are needed only when
installing a DSQD, They are not needed for M2T
installation and may be set aside.
7. Use two (2) Cap Screws (Part #28885) to attach
the left side of the Front Fill Panel (Part #27081) to
the two remaining nuts on the Front Tie Bracket
(Part #25991) and firmly tighten with the
Hex Wrench.
8. Use the Hex Wrench to remove the two (2) in-
board Cap Screws from the rear of the M2T. In-
stall the Support Bracket (Part #27077) to the rear
panel of the M2T, reusing the two (2) Cap Screws
previously removed and firmly tighten with the
Hex Wrench. (See rear view image above.)
9. Insert two (2) Cap Screws (Part #28885) through
Rack Handle (Part #27082) holes and install the
Rack Handle onto the right side Front Fill Panel
(Part #27081) through the holes in the panel,
Rio Rancho, NM
Rack Handle (Part #27082)
Front Tie Bracket (not shown;
located behind faceplate)
Cap Screw (Part #28885)
Front Fill Panel
(Part #27081)
(rear)
Support Bracket
(Part #27077)
STEP 10
(front)
STEPS 6 and 7
Cap Screws (Part #28885)
Front Tie Bracket
(Part #25991)
STEP 10
(rear)
Cap Screws
(Part #28885)
and into the nuts on the Support Bracket (Part
#27076). Firmly tighten the Cap Screws
using the long leg of the Hex Wrench. (See rear
and front view images on front page.)
10. Unless also installing a Front Mounted Antenna,
insert the Hole Plug (Part #35959) into the open
antenna hole in the Front Fill Panel (Part #27081)
by aligning the flat sides of the plug with those of
the bracket hole and pushing into place until flush.
The M2T with Front Fill Panel is now ready for
installation into a rack.
NOTE: If supplied rubber foot/feet are installed
on under side of the M2T, it will not fit in a
single rack space.
STEP 8
Digital Receiver
STEP 9
(front)
