• Universal: This is the most convenient en-
cryption option available. All encryption-capable
Lectrosonics transmitters and receivers contain
the Universal Key. The key does not have to be
generated by the DSQD. Simply set a Lectroson-
ics encryption-capable transmitter and the DSQD
to Universal, and the encryption is in place. This
allows for convenient encryption amongst multiple
transmitters and receivers, but not as secure as
creating a unique key.
NOTE: See Sync Key to send/receive encryption
keys.

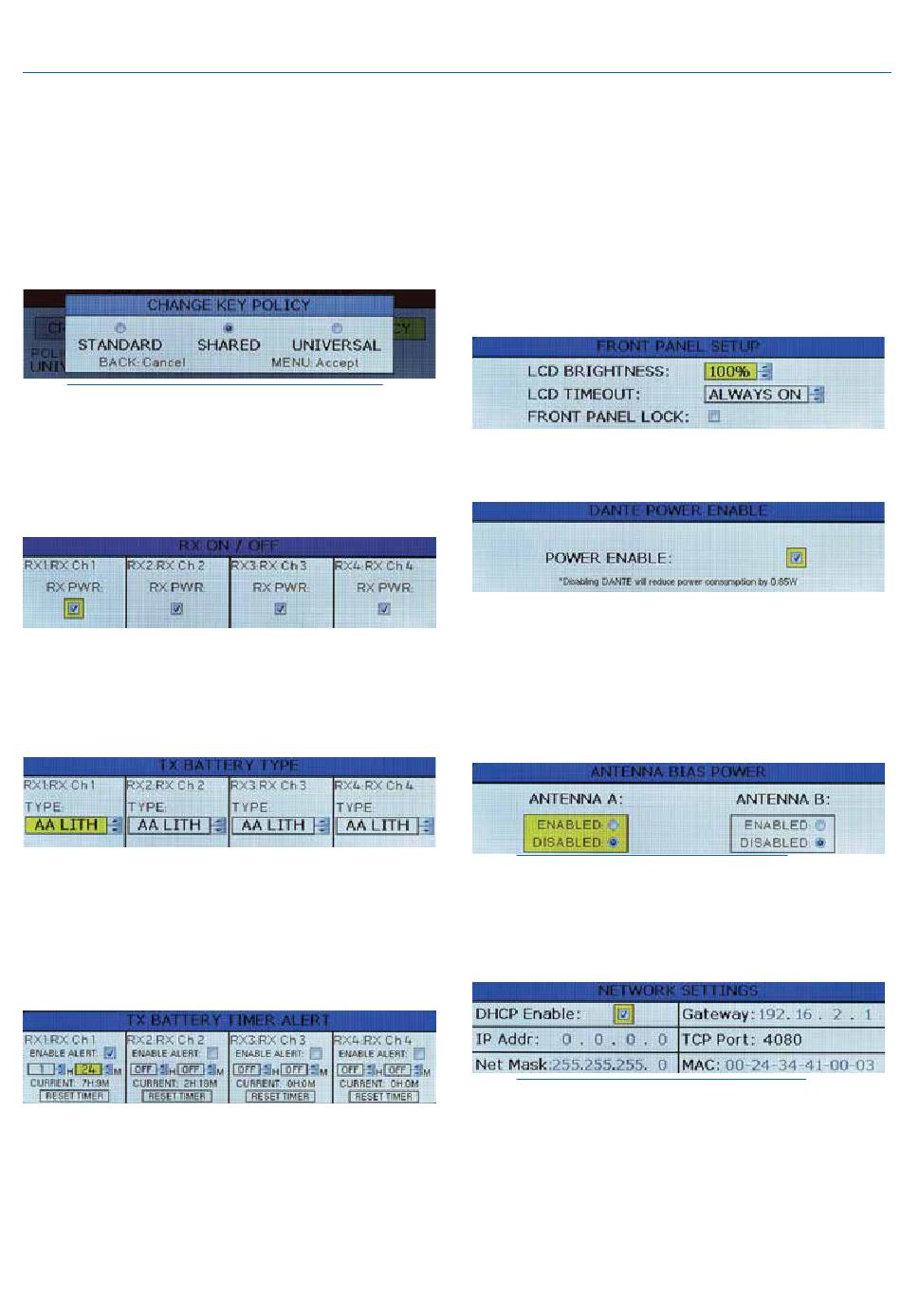

Tools and Settings Menu

RX On/Off

Use UP and DOWN arrows to toggle power on and off.

TX Battery Type

Set battery type, alkaline or lithium, for each channel.
Use MENU/SEL to set and move cursor and the UP
and DOWN arrows to change values.
TX Battery Timer Alert
Set transmitter battery timer alerts for each channel.
Choose to enable/disable alert, set time in hour and
minutes and reset timer. Use MENU/SEL to set and
move the cursor and the UP and DOWN arrows to
change values.
Rio Rancho, NM

Front Panel Setup

Front panel settings may be customized as follows:
• LCD brightness: Use UP and DOWN arrows to
choose from 100%, 75%, 50% or 25%
• LCD Timeout: Use UP and DOWN arrows to
choose from Always On, 30 seconds, or 5 minutes
• Front Panel Lock: Use UP and DOWN arrows to
turn lock on/off. When locked, menus can still
be viewed, but if the UP and DOWN arrows are
pressed to change settings, a "FRONT PANEL
LOCKED" message will appear.
Dante Power Enable
Enable or disable Dante as needed.

Antenna Bias Power

DSQD BNC connectors are provided for use with right-
angle whip antennas, cables from remote antennas, or
cables from another DSQD receiver. DC bias voltage
can be supplied on these connectors from an internal
source to power remote RF amplifiers.
NOTE: See Panels and Features for more
information on antennas/connectors.

Network Settings

Allows the user to set IP address or other network set-
tings when needed.
NOTE: New network settings require the unit
to reboot to take effect. Making a change and
pressing the BACK key will prompt the user to
Reboot Now, Save and Exit, or Discard and Exit.
Digital Receiver
