Factory T Esting Jumpers - DFI 586ITX User Manual

With a modem being installed, you can remotely transmit or access
data without physically going to your system. To " wake up" your sys-
tem, follow the steps below.
1. If your ATX power supply has an On/Off switch, set this to On so
that even when you have shut down your system, it will always
remain in " standby" mode.
2. Enable Power Management. This will allow your system to enter
Suspend mode after you have finished accessing data. Refer to the
Power Management Setup section for more information.
3. Set Jumper JP21 accordingly. This will depend on the COM port
where your modem is connected.
Important:
Before connecting your cable to COM1 or COM2 (depending on your
setting), you must turn on the power of modem first to avoid your ATX
power supply being interfered.

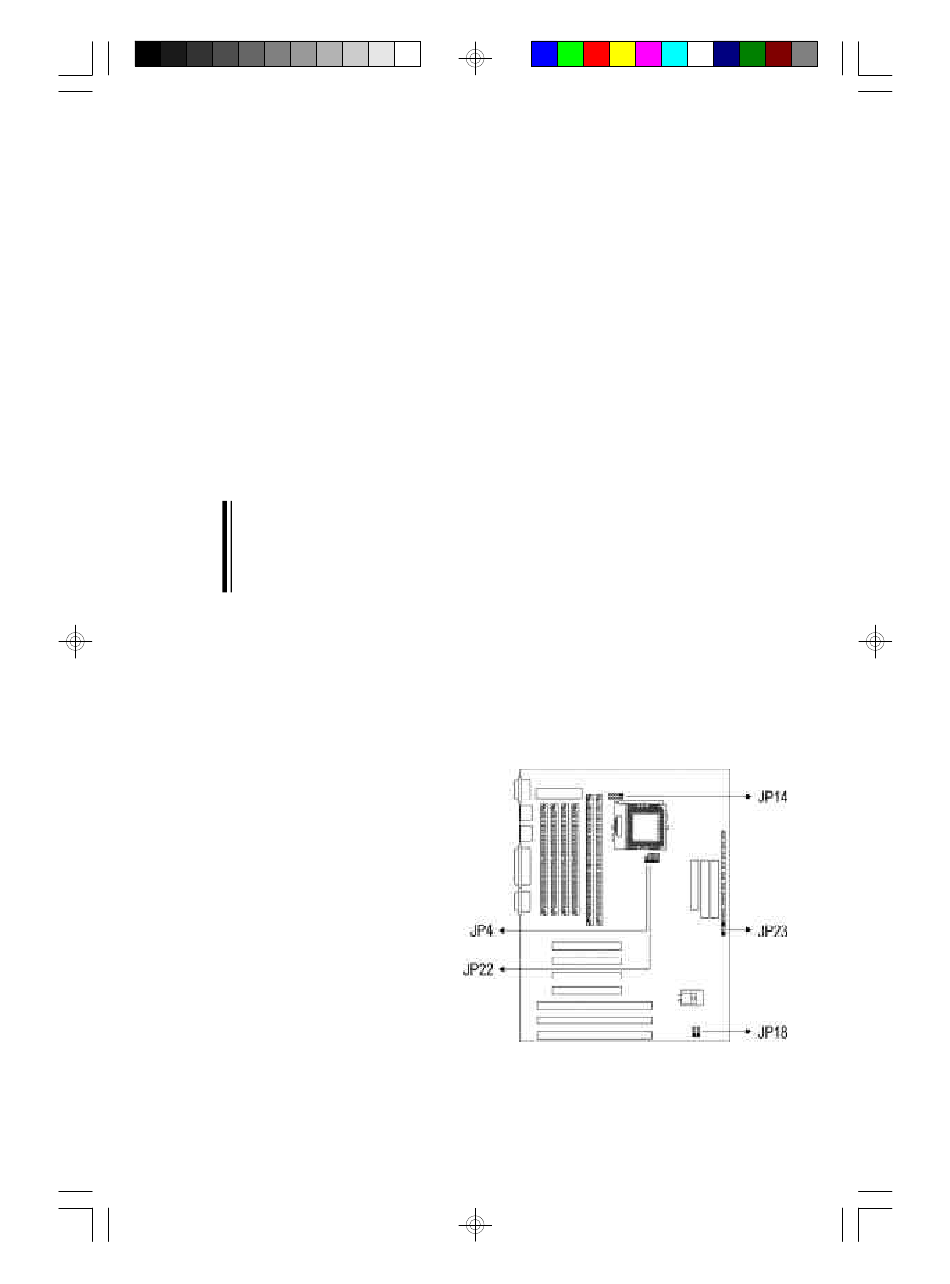

Factory Testing Jumpers
The jumpers below are for factory testing only and should always be set
to their default configuration. Reconfiguring these jumpers will cause
problems with your system board.
JP4: 1-2 On
JP14: 5-6 On, 7-8 On
JP18: 1-3 On, 4-6 On
JP22: All Off
JP23: All Off
