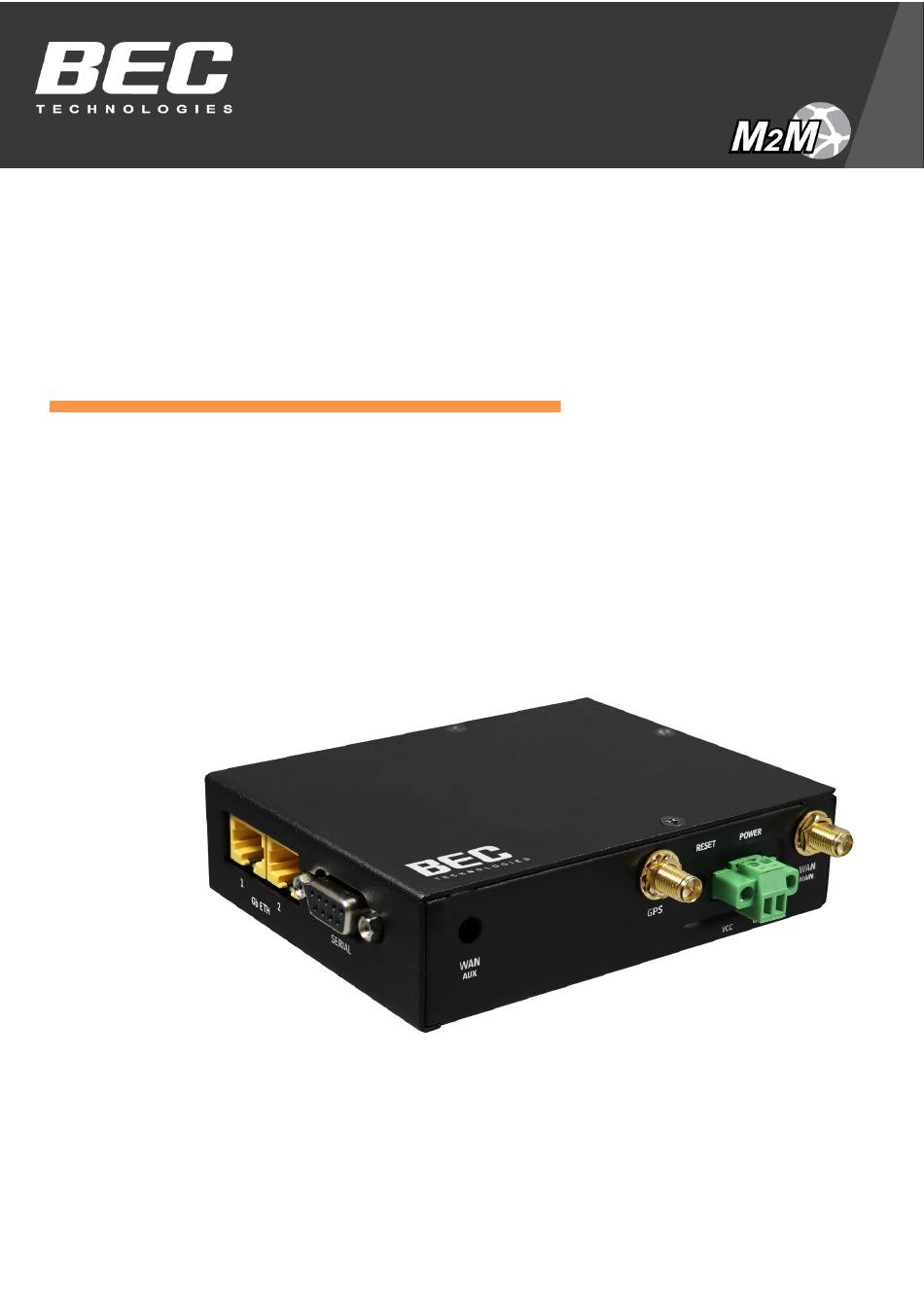

User Manual

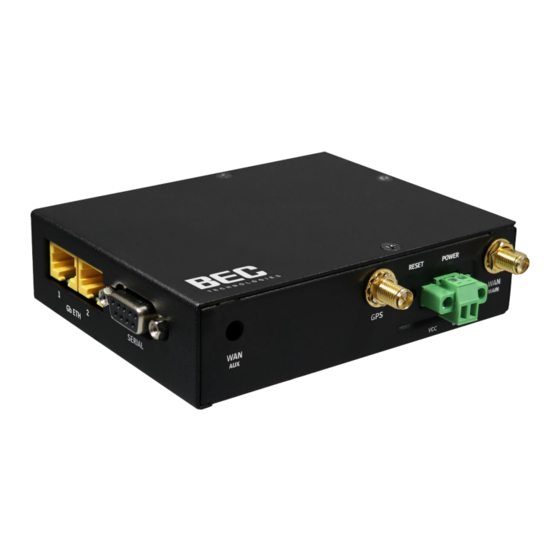

BEC MX-230 M1
4G/LTE Industrial M2M Router
Last revised: July, 2018
Version release: v1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEC MX-230 M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEC BEC MX-230 M1

Summary of Contents for BEC BEC MX-230 M1

  • Page 1 User Manual BEC MX-230 M1 4G/LTE Industrial M2M Router Last revised: July, 2018 Version release: v1.00...

  • Page 2: Antenna List

    Copyright Notice Copyright@ 2018 BEC Technologies Inc. All rights reserved. BEC Technologies reserves the right to change and make improvement to this manual at any time without prior notice. No part of this document may be reproduced, copied, transmitted in any form or by any means without prior written permission from BEC Technologies, Inc.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS COPYRIGHT NOTICE ........1 ANTENNA LIST ..........1 SUPPORT CONTACT INFORMATION ..... 1 CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............2 EATURES PECIFICATIONS ..............4 ARDWARE PECIFICATIONS ................. 4 PPLICATION IAGRAMS CHAPTER 2: PRODUCT OVERVIEW ....
  • Page 4 CHAPTER 4: DEVICE CONFIGURATION ..24 ................. 24 OGIN TO YOUR EVICE ....................26 TATUS Device Info ...................... 26 System Status ....................28 System Log ...................... 28 4G/LTE Status ....................29 GPS Status ....................... 30 Statistics ......................31 DHCP Table ...................... 34 ARP Table ......................
  • Page 5 Dynamic DNS (DDNS) ....................79 Access Control ......................81 Packet Filter ........................83 CWMP (TR-069) ......................87 Parental Control ......................89 BECentral Management ....................90 Maintenance ....................91 User Management ....................... 91 Certificate Management ....................93 Time Zone ........................95 Firmware &...

  • Page 6: Support Contact Information

    NTRODUCTION Introduction to your Router The BEC MX-230 M1 Industrial M2M Router is a low-power wide area network (LPWAN) enabled device supporting Cat.M1 (LTE-M) technologies optimizing range and service coverage for low-cost, low-bandwidth and low-power IoT/M2M communication. The MX-230 is feature-packed NB-IoT/LTE-M router in compact and rugged designed to be deployed in any harsh environment and hard-to-reach areas.

  • Page 7: Features & Specifications

    • IGMP proxy and IGMP snooping • MLD proxy and MLD snooping • Supports port-based Virtual LAN (VLAN) Firewall • Built-in NAT Firewall • Stateful Packet Inspection (SPI) • DoS attack prevention including Land Attack, Ping of Death, etc. BEC MX-230 M1 User Manual...
  • Page 8 • Web-based GUI for remote and local management (IPv4/IPv6) • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP • TR-069 supports remote management • BECentral Cloud Management BEC MX-230 M1 User Manual...

  • Page 9: Hardware Specifications

    • Reset Button • Power Connector: 4-pin Connectors • LED Indicators: Power / Internet / LTE / Ethernet Physical Specifications • Dimensions (W*H*D): 4.29" x 1.17" x 3.43" (109mm x 29.7mm x 87mm) Application Diagrams BEC MX-230 M1 User Manual...

  • Page 10: Chapter 2: Product Overview

    Active GPS Antenna DIN Rail Mounting Kit * 1 ✓ ✓ Ethernet (RJ-45) Cable Power Terminal Block 2-pin 3.5mm * 1 ✓ Power Converter with 2-pin Terminal Block * 1 ✓ DC Power Adapter, 12V 1.2A* 1 BEC MX-230 M1 User Manual...

  • Page 11: Device Description

    (Cat-5 or Cat-5e) to any of those two LAN ports. (LAN 2) RS-232 serial port for machine connection and data collection SERIAL Connect the male end of RS-232 serial data cable to the MX-230 M1 and the other end to a machine or PC BEC MX-230 M1 User Manual...
  • Page 12 GND (Right Connector): Ground – Black Wire to connect to the ground of the power supply WAN (MAIN/AUX) SMA female connectors. 4G/LTE Antenna Manually screw the 3G/4G antennas tight to the female connectors for the Cellular Module Connectors BEC MX-230 M1 User Manual...
  • Page 13 Insert mini SIM card (2FF) with the gold contact facing down. Push mini SIM card (2FF) inwards to eject it SIM Card Slot * Power off the MX-230 M1 before inserting or removing the SIM card BEC MX-230 M1 User Manual...

  • Page 14: System Recovery Procedures

    On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are lit. If they are not, verify that you are using the proper cables. BEC MX-230 M1 User Manual...

  • Page 15: Chapter 3: Basic Installation

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the MX-230 M1. To configure other types of workstations, please consult the manufacturer’s documentation. Attention BEC MX-230 M1 User Manual...

  • Page 16: Network Configuration - Ipv4

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 17 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 18: Configuring Pc In Windows 7/8 (Ipv4)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 19 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 20: Configuring Pc In Windows Vista (Ipv4)

    Center at the top bar. When the Network Sharing Center window pops up, select and click on Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 21 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 22: Network Configuration - Ipv6

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 23 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 24: Configuring Pc In Windows 7/8 (Ipv6)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 25 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 26: Configuring Pc In Windows Vista (Ipv6)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-230 M1 User Manual...
  • Page 27 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-230 M1 User Manual...

  • Page 28: Default Settings

    Device LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP Server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 BEC MX-230 M1 User Manual...

  • Page 29: Chapter 4: Device Configuration

    The default username and password is “admin” and “admin” respectively for the Administrator. For the User account, default username and password is “user” and “user”. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your MX-230 M1 BEC MX-230 M1 User Manual...
  • Page 30 Maintenance User Management Certified Management Time Zone Firmware & Configuration System Restart Auto Reboot Diagnostic Tool Please see the relevant sections of this manual for detailed instructions on how to configure your MX-230 M1 device. BEC MX-230 M1 User Manual...

  • Page 31: Status

    IP Address: WAN port IP address. Default Gateway: The IP address of the default gateway. IP Address: LAN port IPv4 address. Subnet Mask/Prefix Length: Display LAN port IP subnet mask of IPv4 and/or Prefix length of IPv6. BEC MX-230 M1 User Manual...
  • Page 32 DHCP Server: Display LAN DHCP status of IPv4 and IPv6.  Enable / 192.168.1.100~199: DHCPv4 server status on or off / DHCP IP range  Enable / Stateless: DHCPv6 server status on or off / DHCPv6 server Type BEC MX-230 M1 User Manual...

  • Page 33: System Status

    In system log, you can check the operations status and any glitches to the router. Refresh: Press this button to refresh the statistics. Backup: Press to save the System log, log.cfg, to your computer / notebook. BEC MX-230 M1 User Manual...

  • Page 34: 4G/Lte Status

    Billing Cycle: Display the start date and number of days remaining in current billing cycle Clean: Reset current saved mobile usage Save: Click to save current mobile status to ROM Refresh: Click to refresh the page. BEC MX-230 M1 User Manual...

  • Page 35: Gps Status

    Device Configuration Status – GPS Status GPS Status In GPS status, you can check the UTC time, position of the router. BEC MX-230 M1 User Manual...

  • Page 36: Statistics

    Receive Speed: Display the data rate receives from the mobile Internet. Refresh: Click to manually refresh the data. Auto Refresh: Select a time interval to refresh the data automatically or none to disable the feature. BEC MX-230 M1 User Manual...
  • Page 37 Receive Speed: Display the data rate receives from the Broadband Internet Service Provider. Refresh: Click to manually refresh the data. Auto Refresh: Select a time interval to refresh the data automatically or none to disable the feature. BEC MX-230 M1 User Manual...
  • Page 38 Receive Speed: Display the data rate receives from the LAN network. Refresh: Click to manually refresh the data. Auto Refresh: Select a time interval to refresh the data automatically or none to disable the feature. BEC MX-230 M1 User Manual...

  • Page 39: Dhcp Table

    MAC Address: The MAC address of a device, e.g. PC, notebook, printer, etc., that is corresponded with the IP address. VRRP Status Current Status: Display current VRRP status, Master or Backup. Current Master: Display the IP address of the Master BEC MX-230 M1 User Manual...

  • Page 40: Quick Start

    Set new password of the “admin” account to access for router management. The default is “admin”. Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. BEC MX-230 M1 User Manual...
  • Page 41 Click NEXT to continue. Step 4 – Quick Start Completed The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups. BEC MX-230 M1 User Manual...
  • Page 42 Device Configuration Quick Start Go back to the Status > Device Info to view the status. BEC MX-230 M1 User Manual...

  • Page 43: Device Configuration

    WAN Interface: List all available WAN interfaces. (In this section, you have selected to use 4G/LTE) Status: Choose Activated to enable the 4G/LTE connection. Usage Allowance: Enable and click “Usage Allowance” for further setting configuration of your 4G/LTE data usage. Usage Allowance BEC MX-230 M1 User Manual...
  • Page 44 Only”, “UMTS 3G Preferred”, “GSM 2G Preferred”, “GSM and UMTS Only”, “LTE Only”, and “GSM, UMTS, LTE”. If you are not sure which mode to use, you may select Automatic to auto detect the best BEC MX-230 M1 User Manual...
  • Page 45 MTU: maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) an IP attempts to send through the interface. 0 means to use default MTU size, 1500byte. Click Save to apply settings. BEC MX-230 M1 User Manual...
  • Page 46 Status: Select to enable/activate or disable/deactivated the service. IPv4/IPv6 IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to choose from, please choose IPv4/IPv6 instead. ISP Connection Type: BEC MX-230 M1 User Manual...
  • Page 47  Connect Manually: Select Connect Manually when you don't want the connection up all the time. TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS). IP Options BEC MX-230 M1 User Manual...
  • Page 48 Both means the router will periodically send routing information and accept routing information then incorporate into routing table. IN only means the router will only accept but will not send RIP packet. OUT only means the router will only send but will not accept RIP packet. BEC MX-230 M1 User Manual...
  • Page 49 MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets. When router’s Internet configuration is finished successfully, you can go to status to get the connection information. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 50: Lan

    Alias IP Subnet Mask: Specify a subnet mask on this virtual interface. IGMP Snooping: Select Activated to enable IGMP Snooping function. Without the IGMP snooping, multicast traffic is treated in the same manner as broadcast traffic to be forwarded to all ports. With BEC MX-230 M1 User Manual...
  • Page 51 Option 160: Set the IP or hostname of the TFTP server for devices, like IPTV Set Box, to get configuration settings from the TFTP server. (The option 160 is an extended feature in DHCP option, similar to option 66, but using http or https protocols.) Fixed Host BEC MX-230 M1 User Manual...
  • Page 52 DHCPv6 server. The Server maintains a database that keeps track of which addresses have been assigned to which hosts. DHCPv6 Server: Check whether to enable DHCPv6 server. DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is BEC MX-230 M1 User Manual...
  • Page 53 Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 54: Loopback

    Telnet management IP and involved in BGP as BGP Update-Source and OSPF as Router ID. IP Address: Enter a dedicated IP address for the loopback interface. IP Subnet Mask: Enter the subnet mask for the loopback interface. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 55: Dual Wan

    Dual WAN, is a feature to have two independent Internet connection connected concurrently, offers a reliable Internet connectivity and maximize bandwidth utilization for critical applications delivery. General Setting Mode: Select a mode then click Save to proceed. BEC MX-230 M1 User Manual...
  • Page 56 (WAN2) after primary link fails to response in total of 90 seconds, 30 seconds for 3 consecutive failures. Note: Failover and Failback follow the same Connectivity Decision & Probe Cycle rule to failover from WAN1 to WAN2 or fallback from WAN2 to WAN1. BEC MX-230 M1 User Manual...
  • Page 57 The valid range is from -111 ~ -5. 0 means don’t care/no need to check this value. NOTE: Both the RSRP and RSSI cannot be 0 at the same time. Click Save to apply settings. BEC MX-230 M1 User Manual...
  • Page 58  Gateway: Internal system will wait for responses to the pings from the gateway of the WAN.  Host: Internal system will wait for responses to the pings from a fixed IP address. Click Save to apply settings BEC MX-230 M1 User Manual...

  • Page 59: Outbound Load Balance

    Balance by weight: Use an IP hash to balance traffic based on a ratio. It is to guarantee requests from the same IP address get forward to the same WAN interface. Click Save to apply settings BEC MX-230 M1 User Manual...

  • Page 60: Protocol Binding

    DSCP: The DSCP value. Value Range from 0~64; 64 means any value/unspecified Protocol: Select a protocol, TCP, UDP, ICMP, to use for this traffic. Click Save to apply settings Example: All traffics from IP 192.168.1.100/255.255.255.0 with port 8080 will go through WAN1 interface. BEC MX-230 M1 User Manual...
  • Page 61 Device Configuration Dual WAN – Protocol Binding The only time it would go through WAN2 interface is when WAN1 has no Internet connection. BEC MX-230 M1 User Manual...

  • Page 62: Advanced Setup

    SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: Activate your SPI function.  Disabled: Deactivate the SPI function. Click Save to apply settings BEC MX-230 M1 User Manual...

  • Page 63: Routing

    Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Click Save to add this route. BEC MX-230 M1 User Manual...

  • Page 64: Nat

    Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC MX-230 M1 User Manual...
  • Page 65 Example: Skip port 80 (UDP/TCP) in the list. All Incoming request to access to port 80 (Web GUI) will be forwarded to the embedded HTTP server of MX-230 M1 instead of the DMZ host. Click Add to add an entry to the Except Listing. BEC MX-230 M1 User Manual...
  • Page 66 The starting port must be greater than zero (0). The end port must be greater than or equal to the start port. Local IP Address: Enter the server IP address in the network to receive the traffic/packets. Start / End Port Number (Local): Enter the start / end port number of the local application (service). BEC MX-230 M1 User Manual...
  • Page 67 PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC MX-230 M1 User Manual...
  • Page 68 Enter "21” to Local Start and End Port number. The MX-230 M1 will forward port 21 request from WAN to the specific LAN PC (Example: 192.168.1.102) in the network. Step 3: Click Save to save settings. BEC MX-230 M1 User Manual...

  • Page 69: Vrrp

    When deactivated, the lower priority backup is left in the master state. VRIP: An IP address which is associated with the virtual router. Advertisement period: Indicates the time interval in seconds between advertisements. Default in 1 second. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 70: Static Dns

    192.0.32.10 (IPv4). IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 71: Qos

     WAN Interface: Select a WAN interface connection to allow external access to your internal network.  Application: Assign a name that identifies the new QoS application rule. Select from the list box for quick setup. Direction: Shows the direction mode of the QoS application BEC MX-230 M1 User Manual...
  • Page 72  External Port: The Port number on the remote / WAN side. Click Save to apply settings. To Remove a Policy: Simply select the Index then hit the Delete button to remove from the list. BEC MX-230 M1 User Manual...

  • Page 73: Time Schedule

    Click Save to apply your settings. Example, you can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 spanning from 09:00 to 18:00 of Wednesday BEC MX-230 M1 User Manual...

  • Page 74: Mail Alert

    WAN IP change has been detected. Recipient’s Email (3G/4G-LTE Usage Allowance): Enter a valid e-mail address to receive an alert message when the 3G or 4G/LTE over Usage Allowance occurs. Click Apply button to save settings BEC MX-230 M1 User Manual...

  • Page 75: Serial (Rs-232 Console Port)

    Serial connection errors between the MX-230 M1 and the serial device • Hardware issue with the Serial device • Serial device response time is longer than the specified Response Timeout value. Increase the time-out value to see if it helps BEC MX-230 M1 User Manual...
  • Page 76 Character Delimiter: Default characters are 0x0d0a. Serial data will get transmitted when seeing the specified character(s), in this case, 0x0d0a. Valid characters “0x” + Hex code ◼ TCP Idle Timeout (Seconds): Default time is in 60 seconds. Specify an idle time-out in BEC MX-230 M1 User Manual...
  • Page 77 Port: Default used 782(tcp/udp) for Telnet Server. Specify a tcp/udp port other than port 782 if needed. Port 23 is being reserved, don’t use this port. Note: MX-230 M1 uses port 23 as default port the embedded Telnet server. BEC MX-230 M1 User Manual...
  • Page 78 Port: Default use 782(tcp/udp), for SSH Server. Specify a tcp/udp port other than port 782 if needed. Port 22 is being reserved, don’t use this port. Note: MX-230 M1 uses port 22 as default port the embedded SSH server. Click Save to apply settings BEC MX-230 M1 User Manual...

  • Page 79: Access Management

    When accessing to the web server (Web GUI), the browser will issue a warning page. To import certificates, go to Maintenance >> Certificate Management to upload files. Otherwise, select Default certificate and CA. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 80: Snmp

    Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below. Authentication Key: Set the authentication key, 8-31 characters. BEC MX-230 M1 User Manual...
  • Page 81 Device Configuration Access Management – SNMP Privacy Protocol: Select the privacy mode, DES and AES. Privacy Key: Set the privacy key, 8-31 characters. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 82: Syslog

    Remote System Log: Select Activated to enable this feature Server IP Address: Assign the remote log server IP address. Server UDP Port: Assign the remote log server port, 514 is commonly used. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 83: Universal Plug & Play

    NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 84: Dynamic Dns (Ddns)

    Wildcard support: Select this check box to enable DYNDNS Wildcard. Period: Set the time period on how often the MX-230 M1 will update the DDNS server with your current external IP address. Click Save to apply settings. BEC MX-230 M1 User Manual...
  • Page 85 If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC MX-230 M1 User Manual...

  • Page 86: Access Control

    Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded applications (Web, FTP, etc.). Under this situation, clients from WAN cannot access the router even from Ping. BEC MX-230 M1 User Manual...
  • Page 87 Device Configuration Access Management – Access Control Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC MX-230 M1 User Manual...

  • Page 88: Packet Filter

    Type: Choose type of field you want to specify to monitor. Select “IPv4” for IPv4 address, port number and protocol. Select “IPv6” for IPv6 address, port number and protocol. Select “MAC” for MAC address BEC MX-230 M1 User Manual...
  • Page 89 Destination Port Number: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or BEC MX-230 M1 User Manual...
  • Page 90 Source MAC Address: show the MAC address of the rule applied. Time Schedule: Select a TimeSlot to activate the rule. Go to Time Schedule to configure a time control first. Click Save to apply settings. BEC MX-230 M1 User Manual...
  • Page 91 URL (Host): Specified URL which is prohibited from accessing. Time Schedule: Select a TimeSlot to activate the rule. Go to Time Schedule to configure a time control first. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 92: Cwmp (Tr-069)

    CWMP: Select activated to enable CWMP. ACS Login Information URL: Enter the ACS server login URL. User Name: Specify the ACS User Name for ACS authentication to the connection from CPE. Password: Enter the ACS server login password. BEC MX-230 M1 User Manual...
  • Page 93 Bind WAN Interface Interface: Specify any available or a single WAN interface to handle TR-069 requests. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.

  • Page 94: Parental Control

    Host Name: It is the domain name of your OpenDNS. If you don’t have one, please leave it blink. Username / Password: Put down your OpenDNS account username and password Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 95: Becentral Management

    BECentral Management Port: Port listened by the BECentral. Organization ID: Customer ID (By BE C administrator only) Tag ID: By BEC administrator only. Device Report Interval: Enter the interval time in seconds to send inform message periodically to the BECentral.

  • Page 96: Maintenance

    User Name: Create account(s) user name for GUI management. New Password: Enter a new password for this user account. Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field BEC MX-230 M1 User Manual...
  • Page 97 When someone accesses to the MX-230 M1 using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 98: Certificate Management

    Private Key File: Browse to locate the target file on PC before uploading it. If PKCS enabled, please ignore this setting. Password: Enter the password if any, which is used to protect the private key. Otherwise, leave it empty. Click Apply to save settings. BEC MX-230 M1 User Manual...
  • Page 99 Index #: The numeric account indicator. The maximum entry is up to 2. CA Name: Description of the CA. CA Certificate File: Browse to locate the target certificate file on PC before uploading it. Click Apply to save settings. BEC MX-230 M1 User Manual...

  • Page 100: Time Zone

    Daylight Saving: Select this option if you use daylight savings time. NTP Server Address: Enter the IP address of your time server. Check with your ISP/network administrator if you are unsure of this information. Click Save to apply settings. BEC MX-230 M1 User Manual...

  • Page 101: Firmware & Configuration

    Upgrade: Click “Upgrade” to begin the upload process. This process may take up to two minutes. DO NOT turn off or power cycle the device while firmware upgrading is still in process. Improper operation could damage your MX-230 M1. BEC MX-230 M1 User Manual...

  • Page 102: System Restart

    You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC MX-230 M1 User Manual...

  • Page 103: Auto Reboot

    This reboot will only reboot with current configuration settings and not overwrite any existing settings. Click Save to apply settings Example: Schedule MX-230 M1 to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday. BEC MX-230 M1 User Manual...

  • Page 104: Diagnostics Tool

    Ping other IP Address: Click Yes if you wish to ping other IP address rather than google.com Click START: to begin to diagnose the connection. Speed Time: Measure the current uplink and downlink speed rate.  Take less than a minute to run the test.  Result in Uplink / Downlink BEC MX-230 M1 User Manual...
  • Page 105 Ping other IP Address: Click Yes to ping any desired IP address or a domain. Click START to begin to diagnose the connection. Speed Time: Measure the current uplink and downlink speed rate.  Take less than a minute to run the test. BEC MX-230 M1 User Manual...
  • Page 106 Device Configuration Maintenance – Diagnostic Test  Result in Uplink / Downlink Click Back to go back to the Diagnostic Tool. BEC MX-230 M1 User Manual...

  • Page 107: Chapter 5: Troubleshooting

    If the problem persists, most likely it is due to the malfunction of your hardware. Please contact your service provider or BEC for technical support. You have forgotten your login Try the default username "admin" and password username or password "admin".

  • Page 108: Recovery Procedures

    5. Internet LED lit Red, and router starts to write firmware into flash. Please DO NOT power off the router at this step. 6. Internet LED lit Green when successfully upgrade firmware. 7. Power cycle off/on the MX-230 M1 BEC MX-230 M1 User Manual...

  • Page 109: Appendix: Product Support & Contact

    If you come across any problems please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 10 / 8 / 7 and Windows Vista are registered Trademarks of Microsoft Corporation BEC MX-230 M1 User Manual...
  • Page 110 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. V1041275 BEC MX-230 M1 User Manual...
