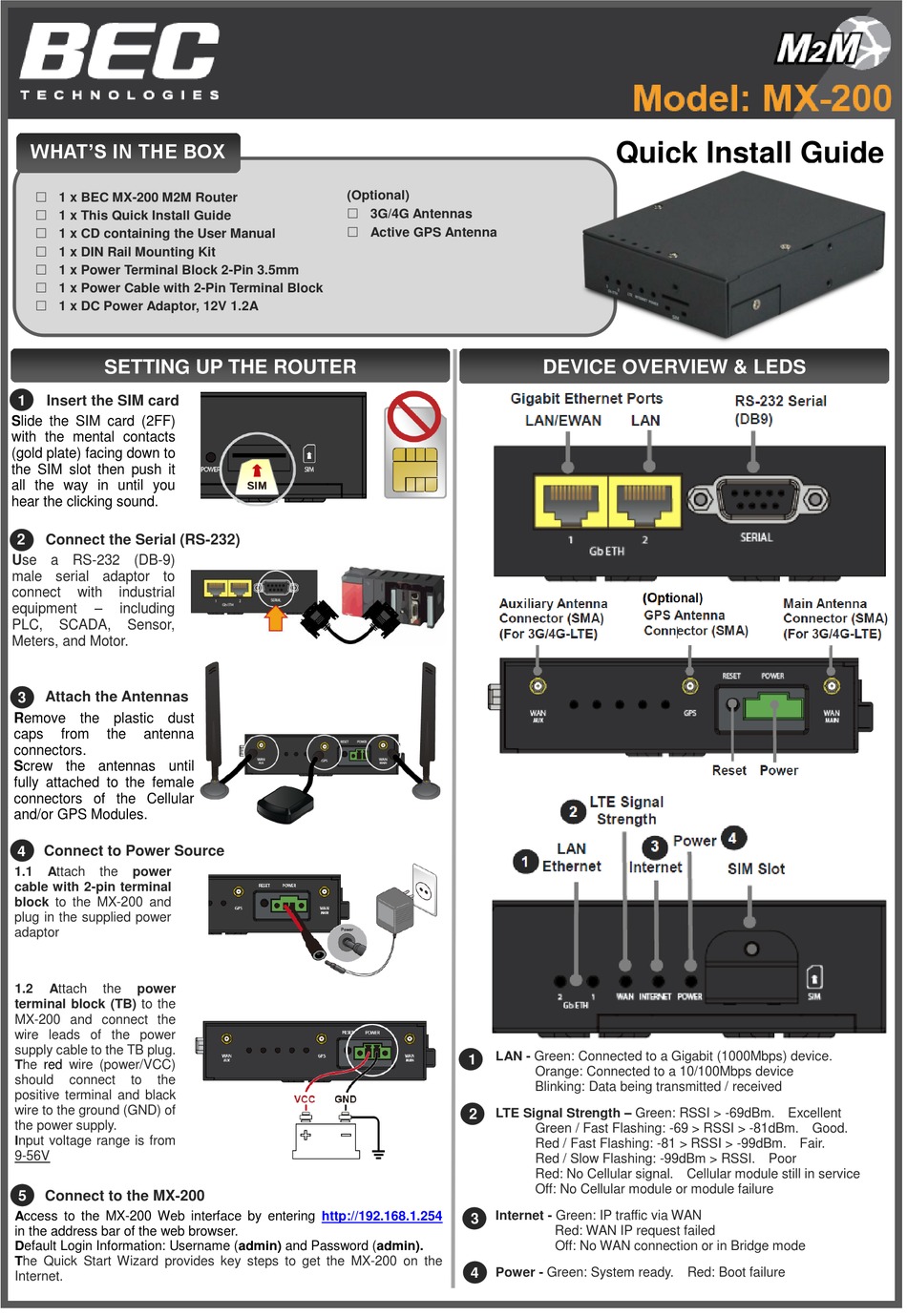

BEC MX-200 Quick Install Manual

WHAT'S IN THE BOX

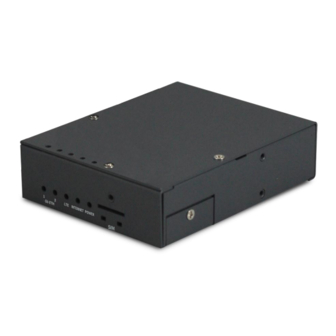

 1 x BEC MX-200 M2M Router
 1 x This Quick Install Guide
 1 x CD containing the User Manual
 1 x DIN Rail Mounting Kit
 1 x Power Terminal Block 2-Pin 3.5mm
 1 x Power Cable with 2-Pin Terminal Block
 1 x DC Power Adaptor, 12V 1.2A

SETTING UP THE ROUTER

1

Insert the SIM card

Slide the SIM card (2FF)
with the mental contacts
(gold plate) facing down to
the SIM slot then push it
all the way in until you
hear the clicking sound.
2

Connect the Serial (RS-232)

Use a RS-232 (DB-9)
male serial adaptor to
connect with industrial
–
equipment including
PLC, SCADA, Sensor,
Meters, and Motor.

Attach the Antennas

3
Remove the plastic dust
caps from the antenna
connectors.
Screw the antennas until
fully attached to the female
connectors of the Cellular
and/or GPS Modules.
4

Connect to Power Source

1.1 Attach the power
cable with 2-pin terminal
block to the MX-200 and
plug in the supplied power
adaptor
1.2 Attach the power
terminal block (TB) to the
MX-200 and connect the
wire leads of the power
supply cable to the TB plug.
The red wire (power/VCC)
should connect to the
positive terminal and black
wire to the ground (GND) of
the power supply.
Input voltage range is from
9-56V
3
5
5

Connect to the MX-200

Access to the MX-200 Web interface by entering
in the address bar of the web browser.
Default Login Information: Username (admin) and Password (admin).
The Quick Start Wizard provides key steps to get the MX-200 on the
Internet.
(Optional)
 3G/4G Antennas
 Active GPS Antenna
1
2
http://192.168.1.254
3
4

Quick Install Guide

DEVICE OVERVIEW & LEDS
LAN - Green: Connected to a Gigabit (1000Mbps) device.
Orange: Connected to a 10/100Mbps device
Blinking: Data being transmitted / received
LTE Signal Strength – Green: RSSI > -69dBm. Excellent
Green / Fast Flashing: -69 > RSSI > -81dBm. Good.
Red / Fast Flashing: -81 > RSSI > -99dBm. Fair.
Red / Slow Flashing: -99dBm > RSSI. Poor
Red: No Cellular signal. Cellular module still in service
Off: No Cellular module or module failure
Internet - Green: IP traffic via WAN
Red: WAN IP request failed
Off: No WAN connection or in Bridge mode
Power - Green: System ready. Red: Boot failure
