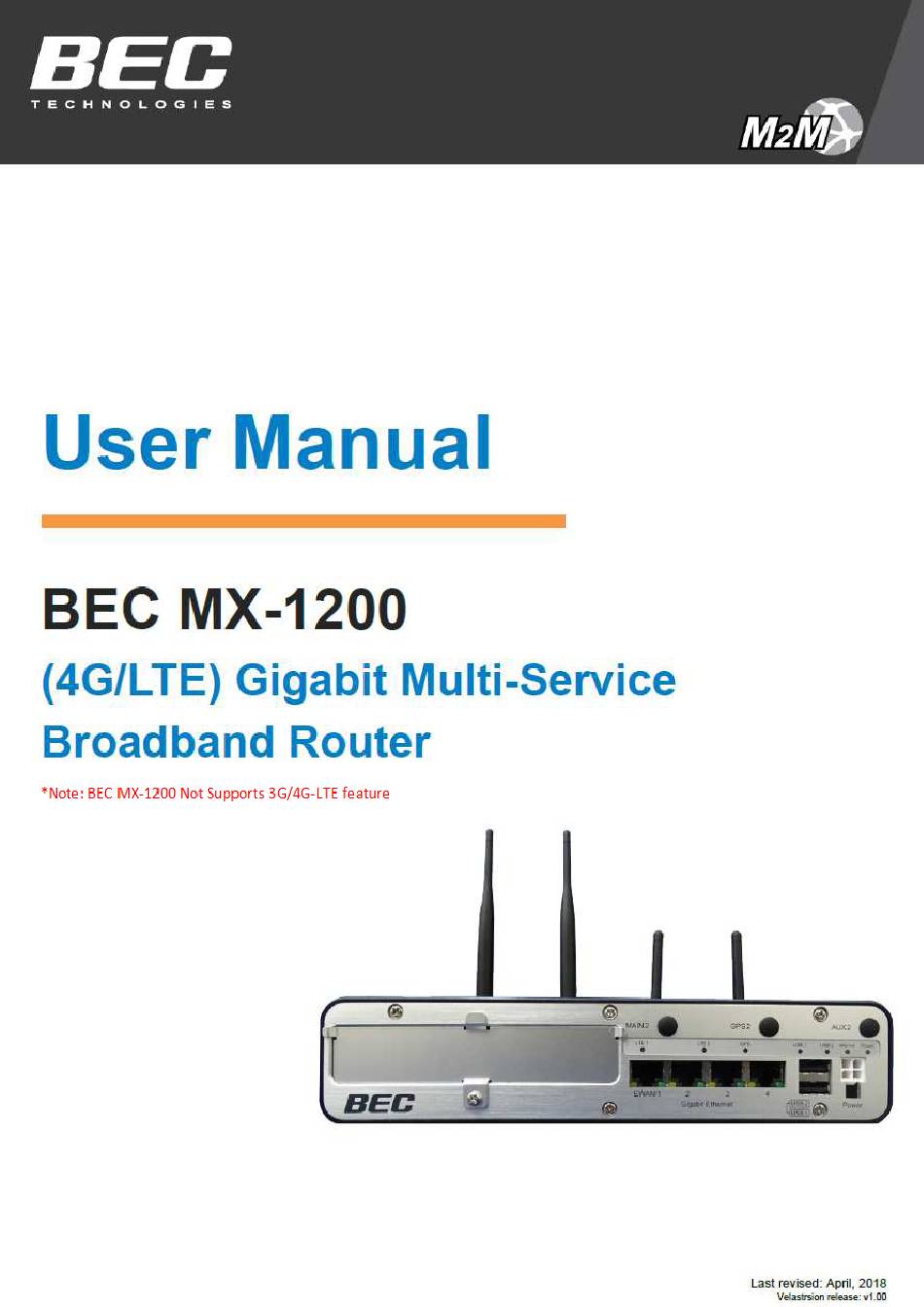

BEC MX-1200 User Manual

(4g/lte) gigabit multi-service broadband router
Hide thumbs Also See for BEC MX-1200:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for BEC BEC MX-1200

Summary of Contents for BEC BEC MX-1200

  • Page 2 Copyright Notice Copyright@ 2017 BEC Technologies Inc. All rights reserved. BEC Technologies reserves the right to change and make improvement to this manual at any time without prior notice. No part of this document may be reproduced, copied, transmitted in any form or by any means without prior written permission from BEC Technologies, Inc.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS COPYRIGHT NOTICE ........1 CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............3 EATURES PECIFICATIONS ..............6 ARDWARE PECIFICATIONS CHAPTER 2: PRODUCT OVERVIEW ....7 ..........7 MPORTANT OTE FOR SING OUTER ................
  • Page 4 ....................28 TATUS Device Info ...................... 28 System Log ...................... 30 System Status ....................30 3G/4G-LTE Status..................... 31 GPS Status ....................... 33 Hardware Monitor ..................33 Hotspot Status ....................34 Statistics ......................35 DHCP Table ...................... 39 Disk Status ....................... 39 ARP Table ......................
  • Page 5 Access Management ..................96 Device Management ....................96 SNMP ........................... 97 Syslog ........................... 99 Universal Plug & Play ....................100 Dynamic DNS (DDNS) ....................101 Access Control ......................103 Packet Filter ........................ 105 CWMP (TR-069) ......................110 Parental Control ......................112 SAMBA &...

  • Page 6: Copyright Notice

    (2) versatile Gigabit Ethernet LANs/WANs for wireline connection such as Fiber(FTTH), Cable or DSL with speeds up to 1000Mbps. Using BEC WAN Management in the Web GUI to manage and ensure uninterrupted Internet services by assigning failover to specific WAN interfaces, setting up WAN load balance to smoother traffic to ensure no drops on latency-sensitive application and data.
  • Page 7 Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you connected to the Internet immediately. Firmware Upgradeable Device can be upgraded to the latest firmware through the WEB based GUI. BEC MX-1200 Series User Manual...

  • Page 8: Features & Specifications

    • Embedded single or dual 4G/LTE module (MX-1200U or MX-1200X) • High performance external antennas Global Navigation Satellite System (GNSS) (Optional) • Embedded GNSS receiver for GPS or GLONASS • Active external antenna (Sold Separately) BEC MX-1200 Series User Manual...
  • Page 9 • 2.4GHz & 5GHz frequency range • 20/40-MHz channel bandwidth • Up to 300Mbps (2.4GHz) & 867Mbps (5GHz) wireless data rate • 64/128 bits WEP supported for encryption • Wireless security with WPA-PSK, WPA2-PSK, Mixed WPA/WAP2-PSK, (TKIP/AES), 802.1x/Radius BEC MX-1200 Series User Manual...
  • Page 10 • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP v1, v2, v3, MIB-I and MIB-II • TR-069 supports remote management • BECentral ® Cloud Management • Supports SNMP • Syslog monitoring BEC MX-1200 Series User Manual...

  • Page 11: Hardware Specifications

    • Ethernet LAN: 4-port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch • SIM Card (MX-100U Plug-In): two (2) slots • Reset Button • Power Jack • LED Indicators Physical Specifications • Dimensions (W*H*D): 8.86" x 1.97" x 6.97" (225mm x 50mm x 172.4mm) BEC MX-1200 Series User Manual...

  • Page 12: Chapter 2: Product Overview

    Only use the power adapter that comes with the package. Using a different voltage rating power adapter may damage the router. Attention Package Contents ✓ (Optional Accessories) BEC MX-1200 M2M Router * 1 ✓ ✓ 3G/4G Antennas Quick Installation Guide * 1 ✓...

  • Page 13: Device Description (Front)

    GUI The USB can support setup for storage/file sharing. Connect an external USB dongle / hard USB Ports drive for storage Power Connect the supplied Power cable to this jack port BEC MX-1200 Series User Manual...
  • Page 14 Either in bridged mode or WAN connection is not present Green System is up and ready Power Boot failure Green Transmission speed is at Gigabit speed (1000Mbps) Gigabit Ethernet Orange Transmission speed is at 10/100Mbps (LAN 1 - 4) Blinking Data being transmitted/received BEC MX-1200 Series User Manual...

  • Page 15: Device Description (Back)

    Insert the mini SIM card (2FF) with the gold contact facing down. Card Slots Push the mini SIM card (2FF) inwards to eject it * Power off the MX-1200 before inserting or removing the SIM card(s) BEC MX-1200 Series User Manual...

  • Page 16: System Recovery Procedures

    On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are lit. If they are not, verify that you are using the proper cables. BEC MX-1200 Series User Manual...

  • Page 17: Chapter 3: Basic Installation

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the MX-1200. To configure other types of workstations, please consult the manufacturer’s documentation. Attention BEC MX-1200 Series User Manual...

  • Page 18: Network Configuration - Ipv4

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 19 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 20: Configuring Pc In Windows 7/8 (Ipv4)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 21 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 22: Configuring Pc In Windows Vista (Ipv4)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 23 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 24: Network Configuration - Ipv6

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 25 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 26: Configuring Pc In Windows 7/8 (Ipv6)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 27 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 28: Configuring Pc In Windows Vista (Ipv6)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1200 Series User Manual...
  • Page 29 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1200 Series User Manual...

  • Page 30: Default Settings

    Device LAN IP Settings • IP Address: 192.168.1.254 • Subnet Mask: 255.255.255.0 DHCP Server: • DHCP server is enabled. • Start IP Address: 192.168.1.100 • IP pool counts: 100 BEC MX-1200 Series User Manual...

  • Page 31: Chapter 4: Device Configuration

    “Go”, a user name and password window prompt appears. Inset the management GUI username and password. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your MX-1200 BEC MX-1200 Series User Manual...
  • Page 32 User Management Certificate Management Time Zone Firmware & Configuration System Restart Auto Reboot Diagnostic Tool Ignition Sensing Please see the relevant sections of this manual for detailed instructions on how to configure your MX- 1200. BEC MX-1200 Series User Manual...

  • Page 33: Status

    System Uptime: Display how long the MX-1200 has been powered on. Physical Port Status Physical Port Status：Display available connection interfaces supported in the MX-1200. Interface: List current available WAN connections. Protocol: Display selected WAN connection protocol Connection: The current connection status. BEC MX-1200 Series User Manual...
  • Page 34 Mode: Display selected Wireless mode. SSID: Display the name of the Wireless AP(s) to use Channel: Display radio frequency to be used for this wireless link Security: Display security method to be used for this wireless link BEC MX-1200 Series User Manual...

  • Page 35: System Log

    % rate may result in slow Internet loading, experiencing video lags, etc. To reduce high CPU consumption by resetting the device, power off and on, an easiest way to regain the service. Memory Total / Free / Cached (in Kbyte): Display the memory consumptions in kilobytes (kB). BEC MX-1200 Series User Manual...

  • Page 36: 3G/4G-Lte Status

    Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE module. Network Mode: Display current network operating mode. Network Band: Indicated the current radio frequency band used. Refresh: Click to refresh the statistics. BEC MX-1200 Series User Manual...
  • Page 37 Billing Cycle: Display the start date and number of days remaining in current billing cycle Clean: Reset current saved mobile usage Save: Click to save current mobile status to ROM Refresh: Click to refresh the statistics. BEC MX-1200 Series User Manual...

  • Page 38: Gps Status

    Status – GPS Status & Hardware Monitor GPS Status In GPS status, you can check the UTC time, position of the router. Hardware Monitor In hardware monitor, you can check the voltage, current and temperature of system. BEC MX-1200 Series User Manual...

  • Page 39: Hotspot Status

    If it reaches to total idle timeout period, the Internet connection will get disconnected immediately. Upload / Download (used / available bandwidth in %): Display current used bandwidths, in upload and download, out of the maximum allow usage in %. BEC MX-1200 Series User Manual...

  • Page 40: Statistics

    Receive Total Frames: Display the total number of frames received until the latest second since system is up. Receive Total Bytes: Display the total frames received till the latest second since system is up. Refresh: Click to refresh this page. BEC MX-1200 Series User Manual...
  • Page 41 Receive Total Bytes: Display the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1200 Series User Manual...
  • Page 42 Receive Total Bytes: Display s the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1200 Series User Manual...
  • Page 43 Receive Error Frames: Display the number of error frames received until the latest second. Receive Drop Frames: Display the number of drop frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1200 Series User Manual...

  • Page 44: Dhcp Table

    Filter function. See the Firewall section of this manual for more information on this feature. Index #: The numeric indicator for the ARP table. IP Address: It is IP Address of internal host that join this network. MAC Address: The MAC address of internal host. BEC MX-1200 Series User Manual...

  • Page 45: Vrrp Status

    Device Configuration Status – ARP Table VRRP Status Current Status: Display current VRRP status, Master or Backup. Current Master: Display the IP address of the Master. BEC MX-1200 Series User Manual...

  • Page 46: Quick Start

    Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. Step 3 – Wireless BEC MX-1200 Series User Manual...
  • Page 47 4.2(1) If selected 4G LTE-1 or 4G LTE-2 Input all relevant 3G/4G-LTE parameters from your ISP. Click Next to continue. 4.2(2) If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click NEXT to continue. BEC MX-1200 Series User Manual...
  • Page 48 The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups. Go back to the Status > Device Info to view the status. BEC MX-1200 Series User Manual...

  • Page 49: Configuration

    NAT, firewall, etc., will be disabled by default. However, the client router behind the MX-1200 can get a WAN IP address instead. When disabled, MX-1200 is in router mode that it handles a WAN IP address and all routing-related BEC MX-1200 Series User Manual...
  • Page 50 PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM BEC MX-1200 Series User Manual...
  • Page 51 NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP. MTU: Enter the maximum packet that can be transmitted. Default MTU 0 means it is set to 1500 bytes. BEC MX-1200 Series User Manual...
  • Page 52 IP Version: Choose IPv4, IPv4/IPv6, or IPv6 based on your environment. If you don’t know which one to choose from, please choose IPv4/IPv6 instead. ISP Connection Type: ISP: Select the encapsulation type your ISP uses.  Dynamic IP: Select this option if your ISP provides you an IP address automatically. BEC MX-1200 Series User Manual...
  • Page 53  Connect Manually: Select Connect Manually when you don't want the connection up all the time. TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS). IP Options – next pages BEC MX-1200 Series User Manual...
  • Page 54 None is for disabling the RIP function. Both means the router will periodically send routing information and accept routing information then incorporate into routing table. IN only means the router will only accept but will not send RIP packet. BEC MX-1200 Series User Manual...
  • Page 55 MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets. When router’s Internet configuration is finished successfully, you can go to status to get the connection information. Click Save to apply the settings. BEC MX-1200 Series User Manual...
  • Page 56 Scan: Click Scan button to search all available and active wireless stations (AP) around the area, and then choose the desired AP. The SSID and Channel will be filled automatically Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 57: Lan

    Interface Setup – LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. BEC MX-1200 Series User Manual...
  • Page 58 - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group. Dynamic Route: BEC MX-1200 Series User Manual...
  • Page 59 DHCP clients along with the IP address and the subnet mask. Option 66: Set the IP or hostname of the TFTP server for devices, like IPTV Set Box, to get configuration settings from the TFTP server. BEC MX-1200 Series User Manual...
  • Page 60 There are two methods to dynamically configure IPv6 address on hosts, Stateless and Stateful. Stateless auto-configuration requires no manual configuration of hosts, minimal (if any) configuration of routers, and no additional servers. The stateless mechanism allows a host to generate BEC MX-1200 Series User Manual...
  • Page 61 Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. Click Save to apply settings. BEC MX-1200 Series User Manual...

  • Page 62: Wireless

    LAN cards communicating through access points which bridge network traffic to the wired LAN. NOTE: WLAN1 / 2 / 3 / 4 Interface refers to as SSID1 / 2 / 3 / 4 Wi-Fi networks. BEC MX-1200 Series User Manual...
  • Page 63 - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group.” BEC MX-1200 Series User Manual...
  • Page 64 SSID Activated: Select the time period during which the SSID is active. Default is in Always which means the SSID is active at all time without time control. See Time Schedule to set the timeslot to flexibly control when the SSID functions. BEC MX-1200 Series User Manual...
  • Page 65 WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for 64- bitWEP and 128-bitWEP respectively. BEC MX-1200 Series User Manual...
  • Page 66 AP. WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature. MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX:XX format) of the peer connected Click Save to apply the settings. BEC MX-1200 Series User Manual...
  • Page 67 Set the Config Mode as Enrollee, press the WPS button on the top bar, select the AP (e.g. Billion_AP) from the WPS AP List column. Then press the PIN button located on the middle left of the page to run the scan. BEC MX-1200 Series User Manual...
  • Page 68 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 4. The client’s SSID and security setting will now be configured to match the SSID and security setting of the registrar, the MX-1200 router. BEC MX-1200 Series User Manual...
  • Page 69 2. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code (e.g. 03454435) column then choose the correct AP (e.g. Billion_AP) from the WPS AP List before pressing the PIN button to run the scan. BEC MX-1200 Series User Manual...
  • Page 70 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security setting of the registrar (client). BEC MX-1200 Series User Manual...
  • Page 71 2. Launch the wireless client’s WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section before pressing the PBC button to run the scan. BEC MX-1200 Series User Manual...
  • Page 72 3. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client’s SSID and security setting will now be configured to match the SSID and security setting of the router. BEC MX-1200 Series User Manual...

  • Page 73: Wireless Mac Filter

     Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router. MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields. Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 74: Dual Wan

    General Setting Mode: Select a mode. Available modes: Disable, Failover & Failback, Failover Priority, and Load Balancing Mode (Disable): For MX-1200U and MX-1200X only. Primary SIM (SIM1) will get activated first. Click Save to proceed BEC MX-1200 Series User Manual...
  • Page 75  Gateway: Internal system will wait for responses to the pings from the gateway of the WAN.  Host: Internal system will wait for responses to the pings from a fixed IP address. 2. Probe by Signal Strength: Enable to measure the LTE signal strength BEC MX-1200 Series User Manual...
  • Page 76 Dual WAN – General Setting (Failover & Failback)  Minimum RSRP / RSSI: Set a minimum requirement for RSRP and RSSI for initiating automatic WAN failback or failover procedures. Click Save to apply the settings. BEC MX-1200 Series User Manual...
  • Page 77 NOTE: Failover and Failback follow the same Connectivity Decision & Probe Cycle rule to failover from WAN1 to WAN2 or fallback from WAN2 to WAN1. Priority by Signal Strength: Use LTE signal strength measurement to initiating automatic WAN failback or failover procedures. Click Save to apply the settings BEC MX-1200 Series User Manual...
  • Page 78  Gateway: Internal system will wait for responses to the pings from the gateway of the WAN.  Host: Internal system will wait for responses to the pings from a fixed IP address. Click Save to apply the settings BEC MX-1200 Series User Manual...

  • Page 79: Outbound Load Balance

    Balance by weight: Use an IP hash to balance traffic based on a ratio. It is to guarantee requests from the same IP address get forward to the same WAN interface. Click Save to apply the settings BEC MX-1200 Series User Manual...

  • Page 80: Protocol Binding

    Click Save to apply the settings Example: All traffics from IP 192.168.1.100/255.255.255.0 with port 8080 will go through WAN1 interface. The only time it would go through WAN2 interface is when WAN1 has no Internet connection. BEC MX-1200 Series User Manual...

  • Page 81: Hotspot

    Hotspot: Activate to enable the Wi-Fi hotspot feature. Interface: The dedicated interface, WLAN1 (SSID1 network name) handles the Wi-Fi hotspot traffic IP Address: The IP address for the Wi-Fi hotspot network. Subnet Mask: Enter the subnet of the network. BEC MX-1200 Series User Manual...
  • Page 82 Idle Timeout (in seconds): The allowed inactivity time of a Wi-Fi client. After this timeout period, a new authentication is required. Upload / Download Bandwidth (in Kbps): The maximum upload and download link speed, value range from 0 ~ 5120Kbps; 0 means no speed limitation. BEC MX-1200 Series User Manual...
  • Page 83 Login URL: Enter the login URL offered by the UAM server. Shared Secret: Set the shared secret password offered. NAS ID: An assigned string for identification. Location Name: An assigned string for identification. Click Save to save settings BEC MX-1200 Series User Manual...

  • Page 84: Built-In User Account

    Save: Click the Save button to apply the settings Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Account list. Click Save to save settings BEC MX-1200 Series User Manual...

  • Page 85: Authorized Of Client

    MAC Address: Enter the wireless MAC address of the Wi-Fi device. Save: Click the Save button to apply the settings Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Client list. BEC MX-1200 Series User Manual...

  • Page 86: Walled Garden

    Host / Domain name: Enter a valid domain, network, or website for unauthorized clients to access Save: Click the Save button to apply the settings Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Walled Garden list. BEC MX-1200 Series User Manual...

  • Page 87: Advertisement

    URL: Enter a valid Save: Click the Save button to apply the settings Delete: Use the Rule Index to select an unwanted rule then click Delete button to remove it from the Walled Garden list. BEC MX-1200 Series User Manual...

  • Page 88: Session Log

    Mail Session Log File in every (minute): MX-1200 will send all access information, such as access IP addresses, NAT tables, etc., to the administrator’s mail box in the specific time/minute. NOTE: Please set up a dedicated or administrator e-mail account to receive Hotspot access information in the Mail Alert. BEC MX-1200 Series User Manual...

  • Page 89: Customization

    Conditions. To use default, same terms, please skip this part. NOTE: No newline is accepted in each text box. Login Successfully Message: MX-1200 will send all access information, such as access IP addresses, tables, etc., administrator’s mail specific time/minute. BEC MX-1200 Series User Manual...
  • Page 90 Wi-Fi hotspot. Default is “Success!” Footnote: Additional information, if needed. Default is “This service is provided for free and used at your own risk.” Show Logo: Select Activated to display company Logo on the portal. BEC MX-1200 Series User Manual...

  • Page 91: Advanced Setup

    SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: Activate your SPI function.  Disabled: Deactivate the SPI function. Click Save to apply the settings BEC MX-1200 Series User Manual...

  • Page 92: Routing

    Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Click Save to add this route BEC MX-1200 Series User Manual...

  • Page 93: Nat

    Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC MX-1200 Series User Manual...
  • Page 94 Example: Skip port 80 (UDP/TCP) in the list. All Incoming request to access to port 80 (Web GUI) will be forwarded to the embedded HTTP server of MX-1200 instead of the DMZ host. Click Add to add an entry to the Except Listing. BEC MX-1200 Series User Manual...
  • Page 95 The starting port must be greater than zero (0). The end port must be greater than or equal to the start port. Local IP Address: Enter your server IP address in this field. Start / End Port Number (Local): Enter the start / end port number of the local application (service). BEC MX-1200 Series User Manual...
  • Page 96 IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC MX-1200 Series User Manual...
  • Page 97 Enter "21” to Local Start and End Port number. The MX-1200 will forward port 21 request from WAN to the specific LAN PC (Example: 192.168.1.102) in the network. Step 3: Click Save to save settings. BEC MX-1200 Series User Manual...

  • Page 98: Static Dns

    192.0.32.10 (IPv4). IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Click Save to apply your settings. BEC MX-1200 Series User Manual...

  • Page 99: Time Schedule

    Click Save to apply your settings. Example, you can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 spanning from 09:00 to 18:00 of Wednesday BEC MX-1200 Series User Manual...

  • Page 100: Mail Alert

    Recipient’s Email (3G/4G-LTE Usage Allowance): Enter a valid e-mail address to receive an alert message when the 3G over Usage Allowance occurs. Hotspot Session Log: Enter a valid e-mail address to receive hotspot access information. Click Apply to save settings BEC MX-1200 Series User Manual...

  • Page 101: Access Management

    When accessing to the web server (Web GUI), the browser will issue a warning page. To import certificates, go to Maintenance >> Certificate Management to upload files. Otherwise, select Default certificate and CA. Click Save to apply settings. BEC MX-1200 Series User Manual...

  • Page 102: Snmp

    Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below. Authentication Key: Set the authentication key, 8-31 characters. BEC MX-1200 Series User Manual...
  • Page 103 Device Configuration Access Management – SNMP Privacy Protocol: Select the privacy mode, DES and AES. Privacy Key: Set the privacy key, 8-31 characters. Click Save to apply settings. BEC MX-1200 Series User Manual...

  • Page 104: Syslog

    Remote System Log: Select Activated to enable this feature Server IP Address: Assign the remote log server IP address. Server UDP Port: Assign the remote log server port, 514 is commonly used. Click Save to apply settings. BEC MX-1200 Series User Manual...

  • Page 105: Universal Plug & Play

    UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application. Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 106: Dynamic Dns (Ddns)

    Wildcard support: Select this check box to enable DYNDNS Wildcard. Period: Set the time period on how often the MX-1200 will update the DDNS server with your current external IP address. Click Save to apply the settings. BEC MX-1200 Series User Manual...
  • Page 107 If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC MX-1200 Series User Manual...

  • Page 108: Access Control

    Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded applications (Web, FTP, etc). Under this situation, clients from WAN cannot access the router even from Ping. BEC MX-1200 Series User Manual...
  • Page 109 Device Configuration Access Management – Access Contro Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC MX-1200 Series User Manual...

  • Page 110: Packet Filter

    Type: Choose type of field you want to specify to monitor. Select “IPv4” for IPv4 address, port number and protocol. Select “IPv6” for IPv6 address, port number and protocol. Select “MAC” for MAC address. BEC MX-1200 Series User Manual...
  • Page 111 Destination Port Number: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or BEC MX-1200 Series User Manual...
  • Page 112 Device Configuration Access Management – Packet Filter (IP & MAC Filter) ICMP or ICMPv6  MAC Source MAC Address: show the MAC address of the rule applied. Click Save to apply settings. BEC MX-1200 Series User Manual...
  • Page 113 In a word, the command serves as a switch to the access of some specific URL with the filter on. URL (Host): Specified URL which is prohibited from accessing. Click Save to apply settings. BEC MX-1200 Series User Manual...
  • Page 114 In a word, the command serves as a switch to the access of some specific URL with the filter on. URL (Host): Specified URL which is prohibited from accessing. Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 115: Cwmp (Tr-069)

    User Name: Specify the ACS User Name for ACS authentication to the connection from CPE. Password: Enter the ACS server login password. Connection Request Information Path: Local path in HTTP URL for an ACS to make a Connection Request notification to the CPE. BEC MX-1200 Series User Manual...
  • Page 116 Bind WAN Interface Interface: Specify any available or a single WAN interface to handle TR-069 requests. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.

  • Page 117: Parental Control

    Host Name: It is the domain name of your OpenDNS. If you don’t have one, please leave it blink. Username / Password: Put down your OpenDNS account username and password Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 118: Samba & Ftp Server

    SAMBA /FTP access and operation permission of objects in SAMBA and FTP server.  New user: users can create new user(s) to grant it (them) access and permission to the SAMBA & FTP server. BEC MX-1200 Series User Manual...
  • Page 119 , but if you enter \\SambaSvr, please be sure your working PC is in the same workgroup as set in the samba server set above.) 2. Enter the Username and password. 3. Users can browse and access USB storage. BEC MX-1200 Series User Manual...
  • Page 120 2) Create ftp sites (LAN IP / WAN IP, 192.168.1.254, and set the account, port). 3) Connect to the ftp site. 2. Web FTP access 1) Enter ftp://192.168.1.254 at the address bar of the web page. 2) Enter the account's username and password. BEC MX-1200 Series User Manual...

  • Page 121: Becentral Management

    BECentral Management Port: Port listened by the BECentral. Organization ID: Customer ID Device Report Interval: Enter the interval time in seconds to send inform message periodically to the BECentral. Interface: Specify any available or a single WAN interface to handle BECentral requests. BEC MX-1200 Series User Manual...

  • Page 122: Maintenance

    Index: The numeric account indicator. The maximum entry is up to 8 accounts. User Name: Create account(s) user name for GUI management. New Password: Enter a new password for this user account. Confirmed Password: Re-enter the new password again; you must enter the password exactly the BEC MX-1200 Series User Manual...
  • Page 123 Web GUI Permission Login using the Administrator account, you will have the full accessibility to manage & control your gateway device and can also create user accounts for others to control some of the open configuration settings. BEC MX-1200 Series User Manual...
  • Page 124 Permission: Set the operation permission for the user, Read/Write or Read. SAMA Authority Setup SAMBA Access: Enable to grant the user access to the SAMBA server. Permission: Set the operation permission for the user, Read/Write or Read. BEC MX-1200 Series User Manual...
  • Page 125 When someone accesses to the MX-1200 using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account. Click Save to apply the settings. BEC MX-1200 Series User Manual...

  • Page 126: Time Zone

    Greenwich Mean Time (GMT). Daylight Saving: Select this option if you use daylight savings time. NTP Server Address: Enter the IP address of your time server. Check with your ISP/network administrator if you are unsure of this information. BEC MX-1200 Series User Manual...

  • Page 127: Firmware & Configuration

    Upgrade: Click “Upgrade” to begin the upload process. This process may take up to two minutes. DO NOT turn off or power cycle the device while firmware upgrading is still in process. Improper operation could damage your MX-1200. BEC MX-1200 Series User Manual...

  • Page 128: System Restart

    You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC MX-1200 Series User Manual...

  • Page 129: Auto Reboot

    This reboot will only reboot with current configuration settings and not overwrite any existing settings. Click Save to apply the settings Example: Schedule MX-1200 to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday. BEC MX-1200 Series User Manual...

  • Page 130: Diagnostics Tool

    Click Yes, enter the IP address or domain then Start Trace Route. IP Address or Domain: Set the destination host (IP, domain name) to be traced. Max TTL value: Set the max Time to live (TTL) value. Shown as we “trace” www.billion.com below. BEC MX-1200 Series User Manual...
  • Page 131 Device Configuration Maintenance – Diagnostic Tool Ping other IP Address: Click Yes to ping any desired IP address or a domain. Click START to begin to diagnose the connection. BEC MX-1200 Series User Manual...

  • Page 132: Ignition Sensing

    Ignition Sensing Interval Time (seconds): It is the off delay timer. Default value is in 10 minutes (600 seconds). MX-1200 will get power off in 10 minutes after the vehicle engine is turned off. Click Apply to change the setting. BEC MX-1200 Series User Manual...

  • Page 133: Chapter 5: Troubleshooting

    If the problem persists, most likely it is due to the malfunction of your hardware. Please contact your service provider or BEC for technical support. Try the default username "admin" and password You have forgotten your login username or password "admin".

  • Page 134: Recovery Procedures

    5. Internet LED lit Red, and router starts to write firmware into flash. Please DO NOT power off the router at this step. 6. Internet LED lit Green when successfully upgrade firmware. 7. Power cycle off/on the MX-1200 BEC MX-1200 Series User Manual...

  • Page 135: Appendix: Product Support & Contact

    If you come across any problems please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 10/8/7, Windows XP, and Windows Vista are registered Trademarks of Microsoft Corporation. BEC MX-1200 Series User Manual...
  • Page 136 Appendix This page is intentionally left blank BEC MX-1200 Series User Manual...
  • Page 137 Class B: (Section 15.105) FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
