BEC 6200WZL Quick Installation Manual

MobileNation: CELLULAR BROADBAND: Quick LAN and WLAN Connection Guide for BEC
6200WZL

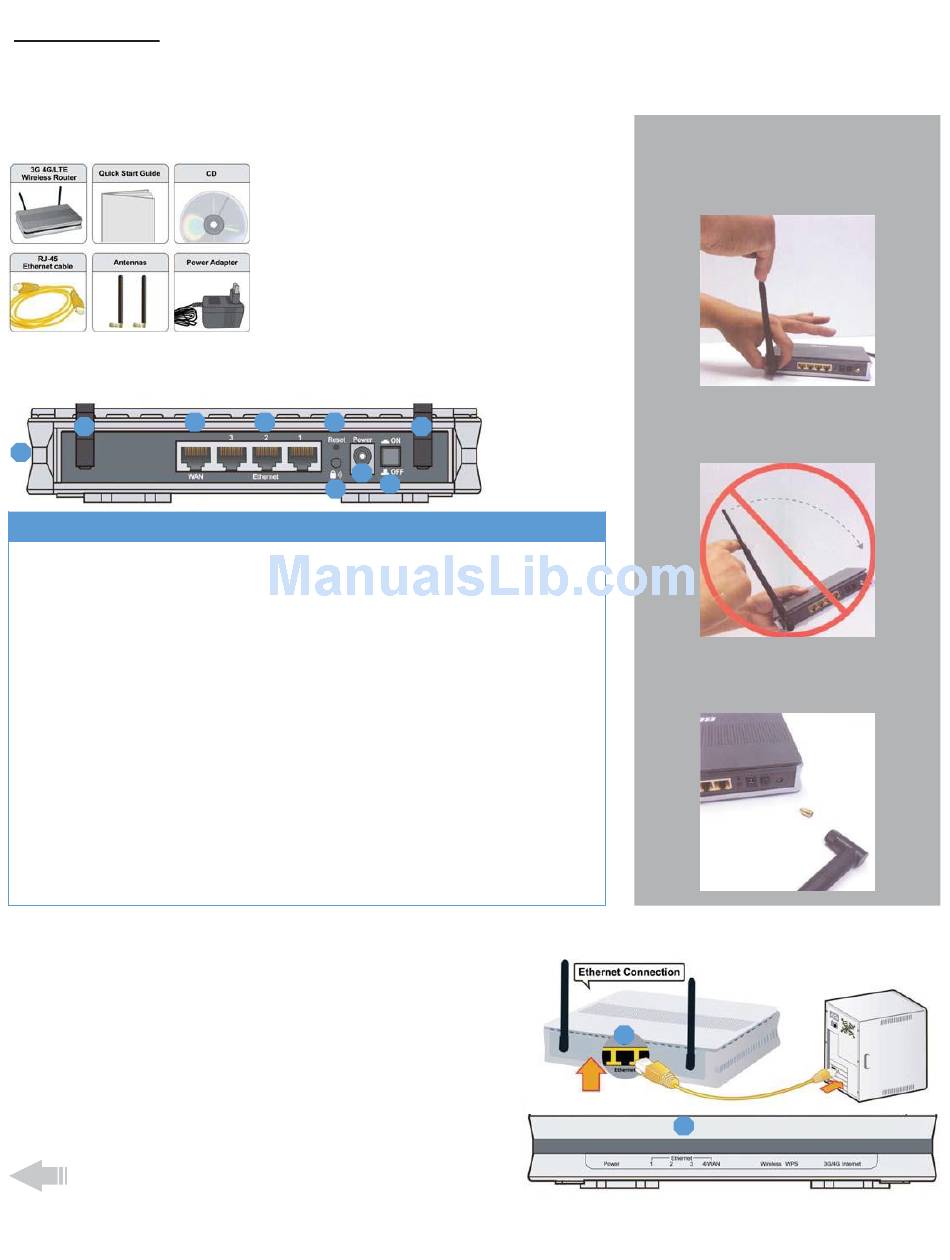

PACKAGE CONTENTS

REAR PANEL CONNECTORS

4
1
3
PORT
1-2 LTE Antenna
3 SIM Card Slot
4 WAN
5 Ethernet LAN (1~4)
6 Reset
7 Wireless On/Off
8 Power Jack (DC)
9 Power Switch

ETHERNET LAN CONNECTION GUIDE

1. Power on the BEC 6200WZL router.
2. Connect the supplied RJ-45 Ethernet cable to one of the LAN ports
and the other end of the cable to the PC's Ethernet interface.
3. Provide a few seconds for connection to establish.
4. Verify that front panel Ethernet light(s) is on.
See back page for Wireless LAN Connection Guide

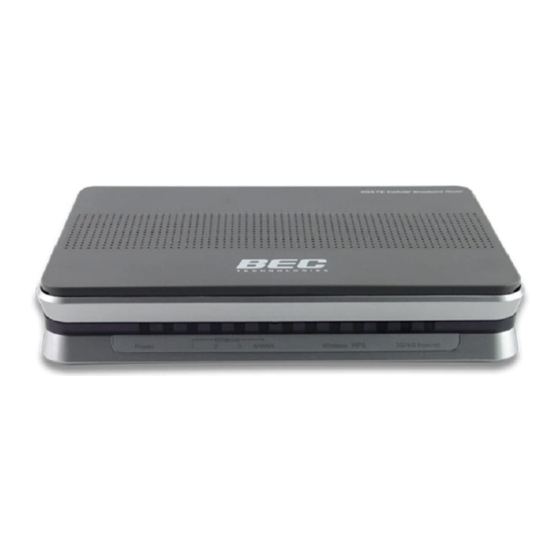

9 BEC 6200WZL 4G/LTE Broadband Router
9 This Quick Installation Guide
9 CD containing User Manual
9 RJ-45 Ethernet Cable
9 Two 3G/4G-LTE detachable antennas
9 Power adaptor
5 6
8
7
MEANING
Screw in the supplied antennas; Main antenna (1), must be
connected (1); Auxiliary antenna (2)
Insert the SIM card with the gold contact facing down. Listen
for a "click" to indicate SIM card is locked in.
Push the SIM card inwards to eject it.
Connect to Fiber/Cable/xDSL Modem with RJ-45 as an alternate
internet source; this can also be used as a regular LAN port
Connect an Ethernet cable to one of four (including the WAN
port) LAN ports when connecting a PC or a 100Mbps network
Reset button restores unit to Pine's factory default
configuration
Press & hold the button for more that 6 seconds to On/Off the
wireless LAN
Connect the supplied Power Adapter to this jack
Power ON/OFF switch
2
9

ANTENNA INSTALLATION

Grasp top of antenna with one hand and
screw the base in with the other
DO NOT rotate the entire antenna around
the unit during installation
Improper installation of the antenna can
cause the connector to snap from the unit
2
4
