Figure 3-2. Install The Unit Into A Rack Enclosure - Comtech EF Data UT-4500 Series Installation And Operation Manual

UT-4500 Series C- and Ku-Band Up Converters
Installation and Startup
Feature Description
1 Custom Rack Enclosure
2 UT-4500 chassis
3 Standard Rack Shelving
4 Rack Enclosure Threaded Front Rail (typical)
5 Unit Front Panel
6 User-supplied Screws

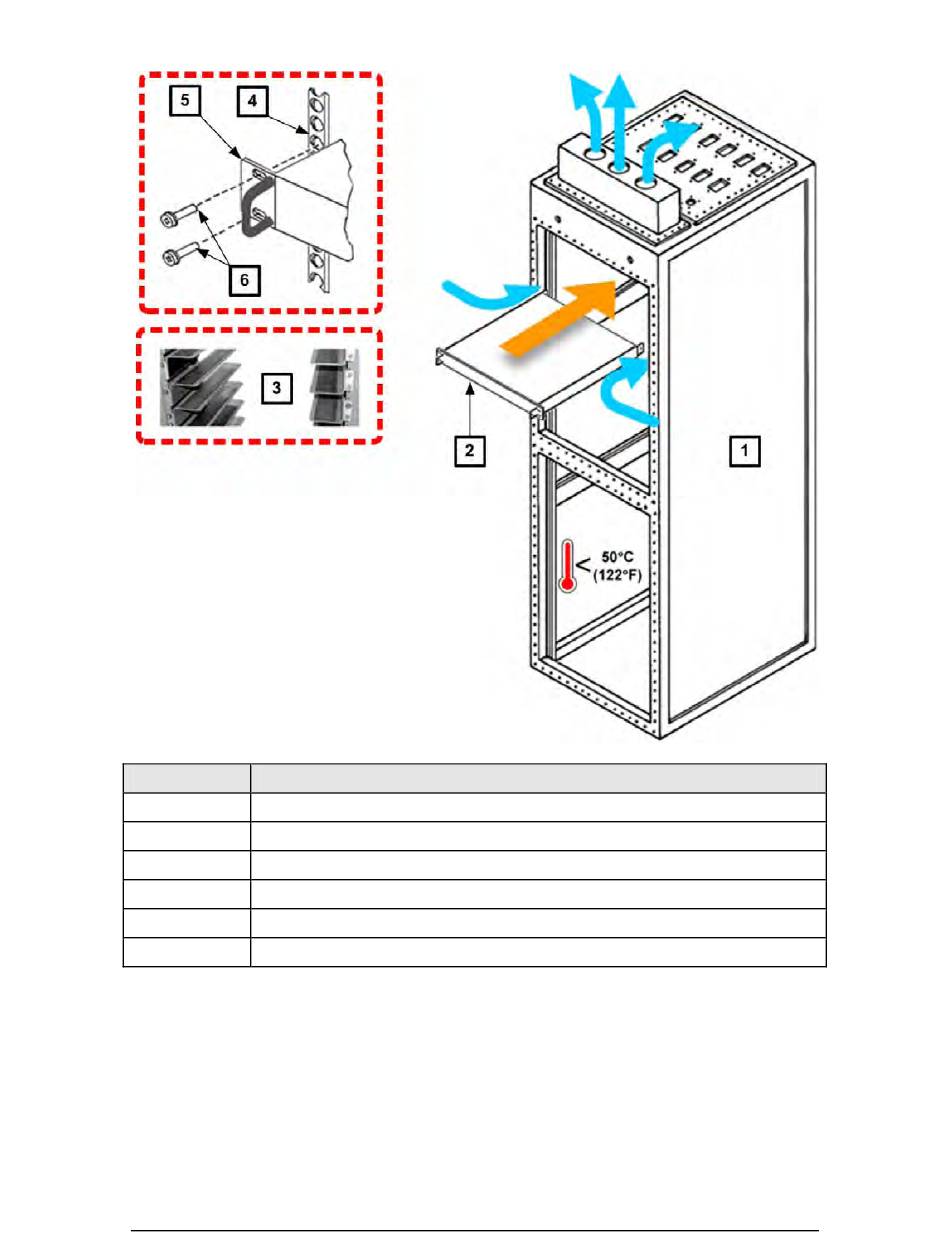

Figure 3-2. Install the Unit into a Rack Enclosure
