Appendix B. MAINTENANCE
TROUBLESHOOTING
AND
B.1 Overview
This appendix serves to assist operator and maintenance personnel in the
checkout, maintenance, and troubleshooting of the UT-4500 Series C- and
Ku-Band Up Converters. Troubleshooting procedures are provided for fault
isolation to the switch module level.

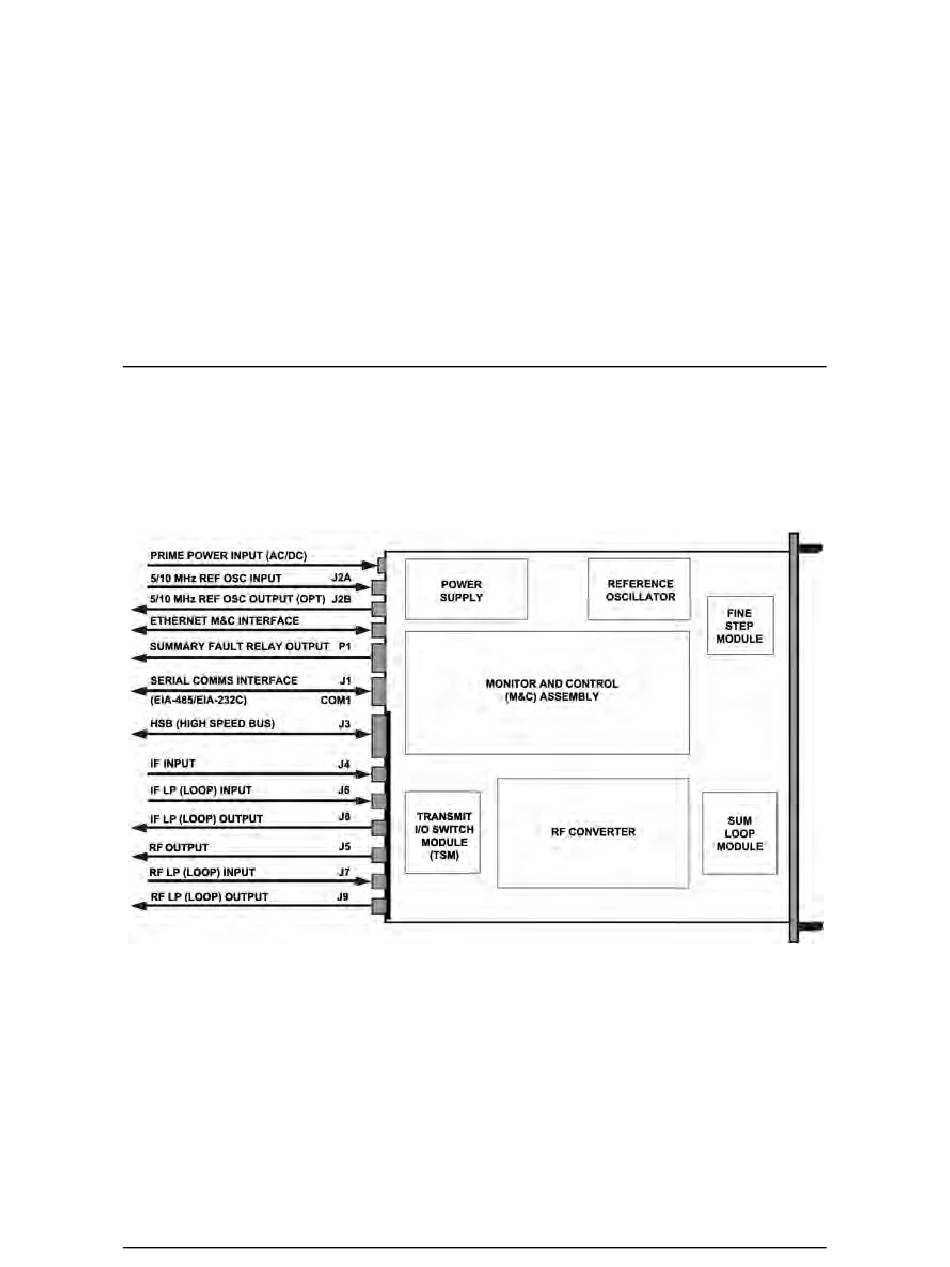

Figure B-1. UT-4500 Signal and Interconnecting Diagram – 1:N Redundancy
"Inline" Unit Example (with TSM)
Figure B-1 shows the rear panel input and output signal routing, cabling
interconnections, and switch module location.
B–1
