Install The Optional Rear Support Brackets Kit; Figure 3-3. Install The Optional Rear-Mounting Support Brackets Kit - Comtech EF Data UT-4500 Series Installation And Operation Manual

UT-4500 Series C- and Ku-Band Up Converters
Installation and Startup

3.2.1 Install the Optional Rear Support Brackets Kit

Feature Description
1 Back of unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
Kit / Quantity
Item
KT/6228-2 KT/6228-3
1 2
2 4
3 2
4 2
5 4
2
6
–

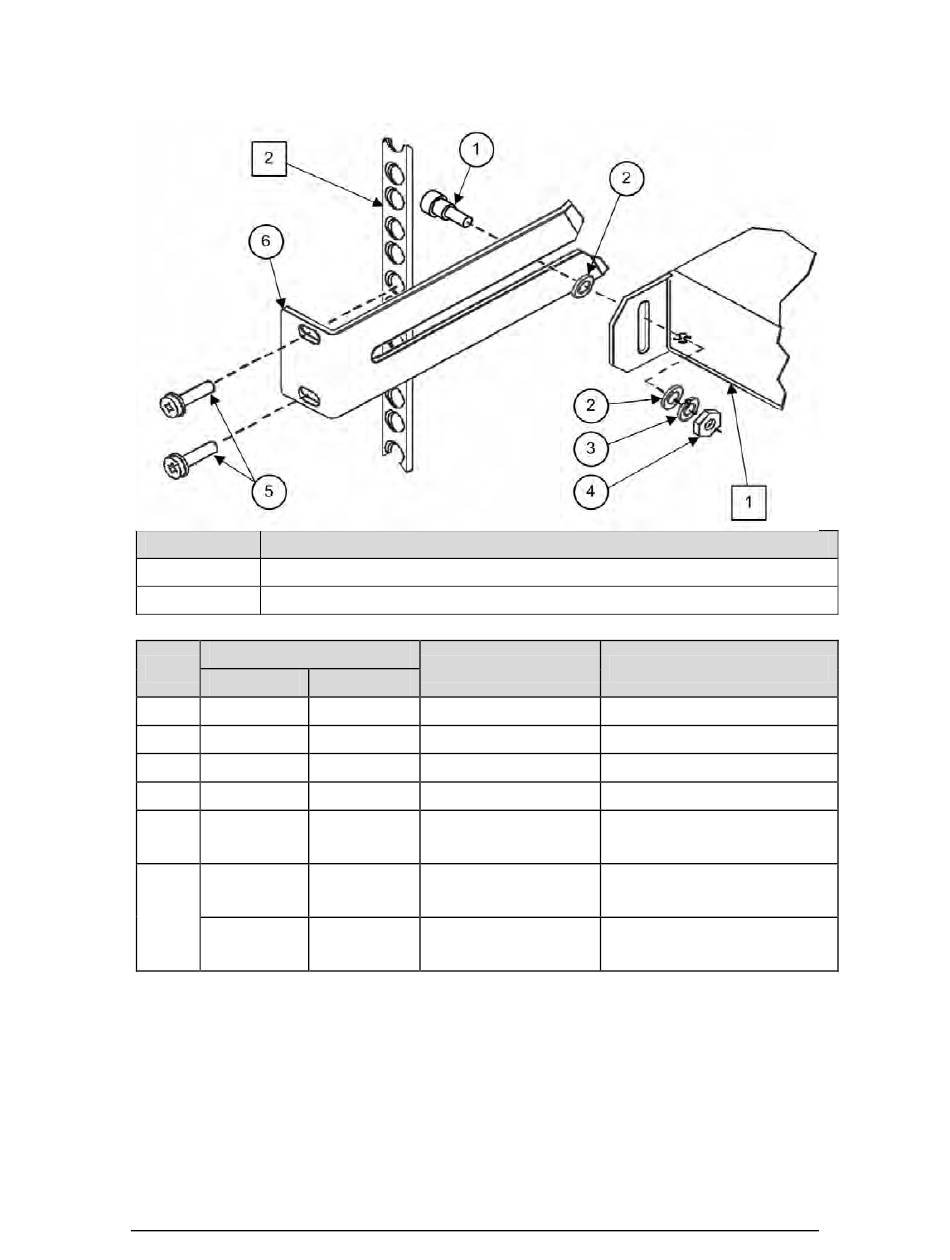

Figure 3-3. Install the Optional Rear-Mounting Support Brackets Kit

CEFD P/N
2 HW/10-32SHLDR
4 HW/10-32FLT
2 HW/10-32SPLIT
2 HW/10-32HEXNUT
4 HW/10-32x1/2RK
– FP/6138-2
2 FP/6138-3
3–5
MN/UT4500.IOM
Revision 3
Description
Shoulder Screw, #10
Flat Washer, #10
Lock Washer, #10
Hex Nut, #10
Bolt, #10, Rear Support
Bracket
Bracket, Rear Support
(4")
Bracket, Rear Support
(10")
