Mechanical Installation

4.2. Mechanical Installation
Placement
• The device is intended to be mounted on top of a machine or cabinet through an M50 (50.5mm) hole using
the included sealing ring and nut.
• The top mounting surface, in contact with the sealing, must be flat with a finish equivalent to Ra 3.2 or finer
and cleaned and free from oils and greases.
• For optimal reception, cellular devices require a zone around them clear of objects that could obstruct or
reflect the signal.
To avoid interference, a minimum distance of 50 cm between Bolt LTE and other cellular devices should be
observed.
Installation
IMPORTANT
Make sure that the sealing ring is correctly placed in the circular groove in the top part of the
housing before tightening the nut.
IMPORTANT
Always hold the BOTTOM part of the unit when untightening the nut, not the top part (the cap).
Tightening torque: 5 Nm ±10 %
All measurements are in mm.

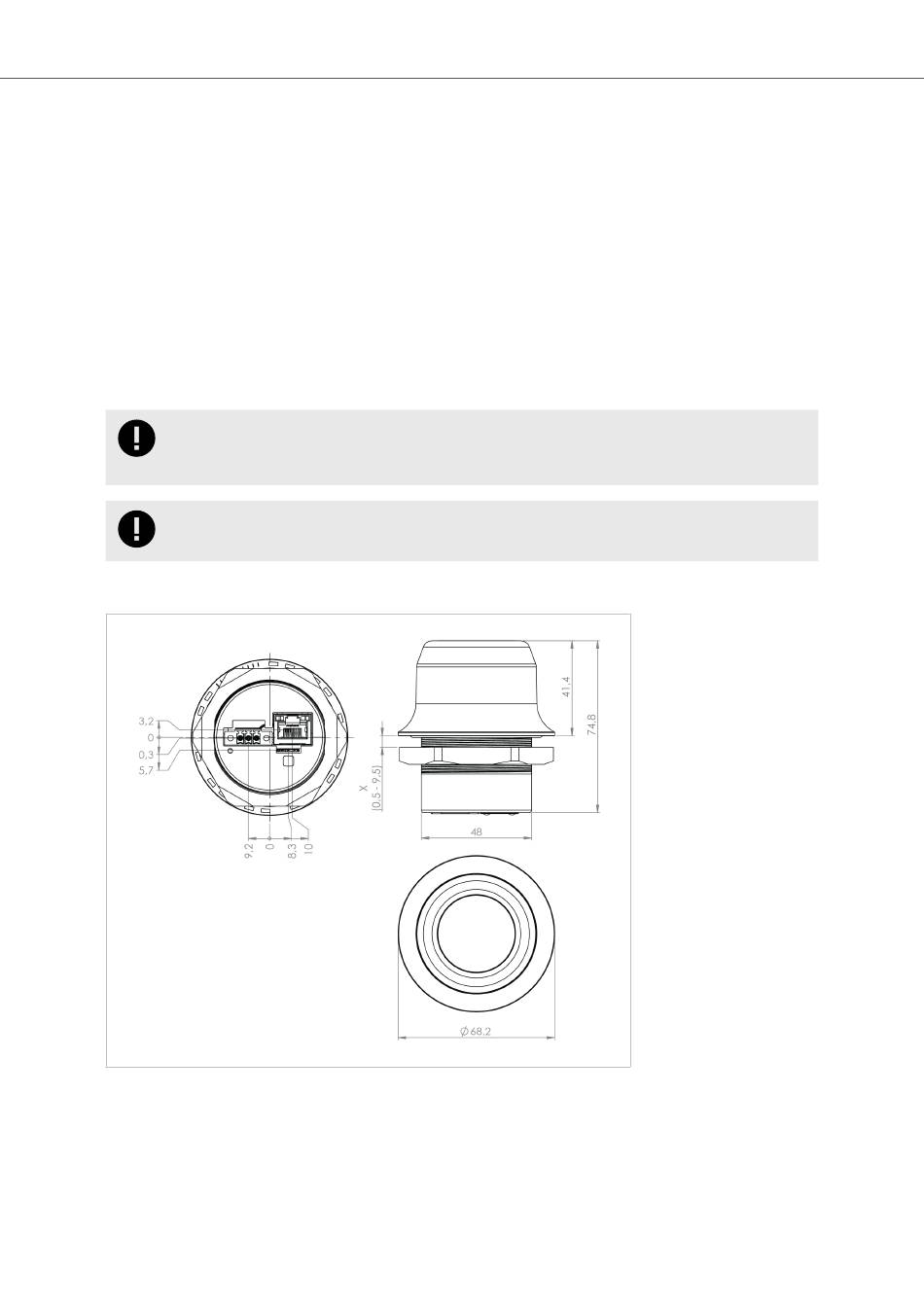

Figure 2. Installation drawing
