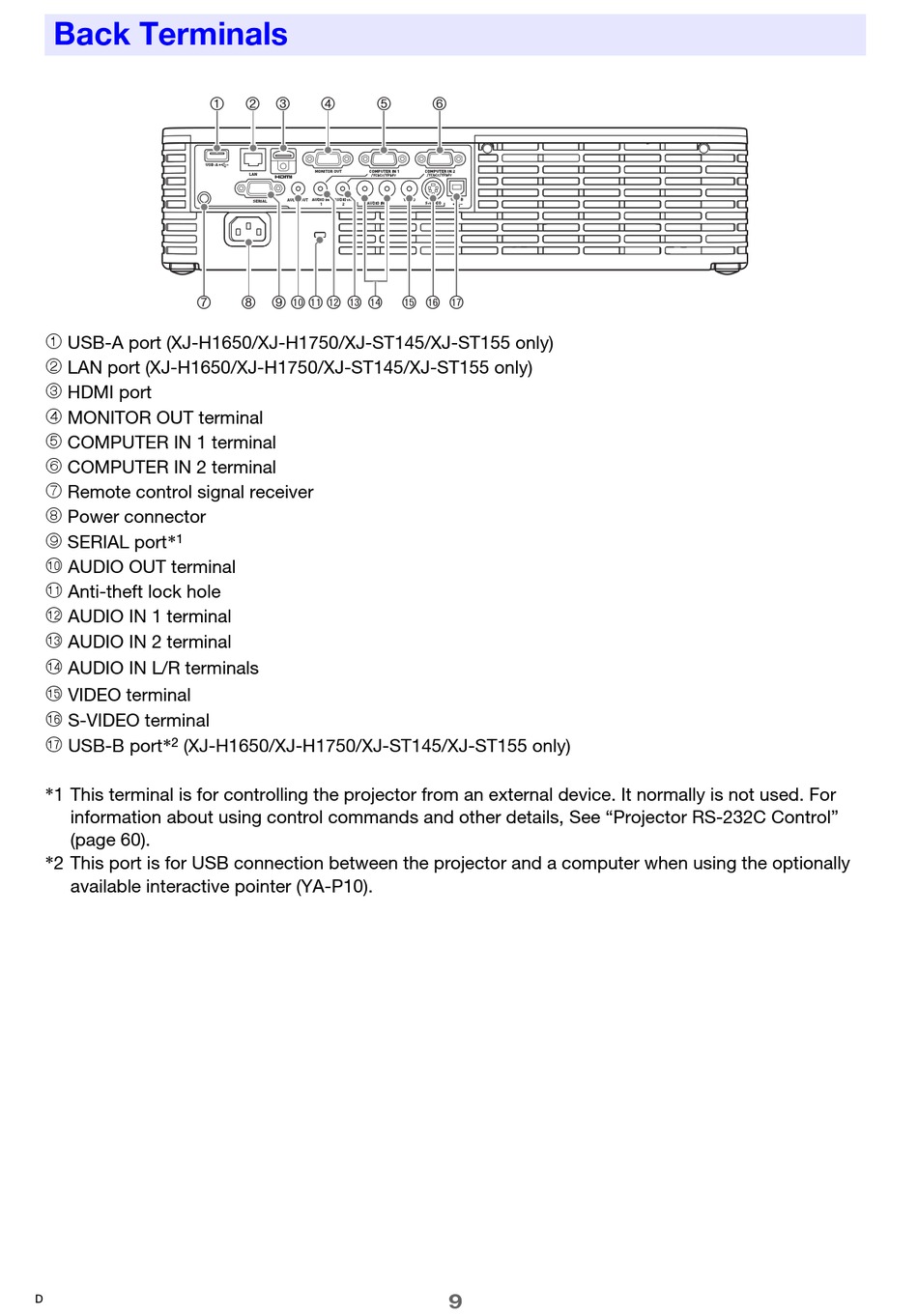

Back Terminals

7
1
USB-A port (XJ-H1650/XJ-H1750/XJ-ST145/XJ-ST155 only)
2
LAN port (XJ-H1650/XJ-H1750/XJ-ST145/XJ-ST155 only)
3
HDMI port
4
MONITOR OUT terminal
5
COMPUTER IN 1 terminal
6
COMPUTER IN 2 terminal
7
Remote control signal receiver
8
Power connector
9
1
SERIAL port*
bk
AUDIO OUT terminal
bl
Anti-theft lock hole
bm
AUDIO IN 1 terminal
bn
AUDIO IN 2 terminal
bo
AUDIO IN L/R terminals
bp
VIDEO terminal
bq
S-VIDEO terminal
br
2
USB-B port*
(XJ-H1650/XJ-H1750/XJ-ST145/XJ-ST155 only)
*1 This terminal is for controlling the projector from an external device. It normally is not used. For
information about using control commands and other details, See "Projector RS-232C Control"
(page 60).
*2 This port is for USB connection between the projector and a computer when using the optionally
available interactive pointer (YA-P10).
D
1
2 3
4
5
8
9 bkbl bm bn
bo
6
bp bq br
9
