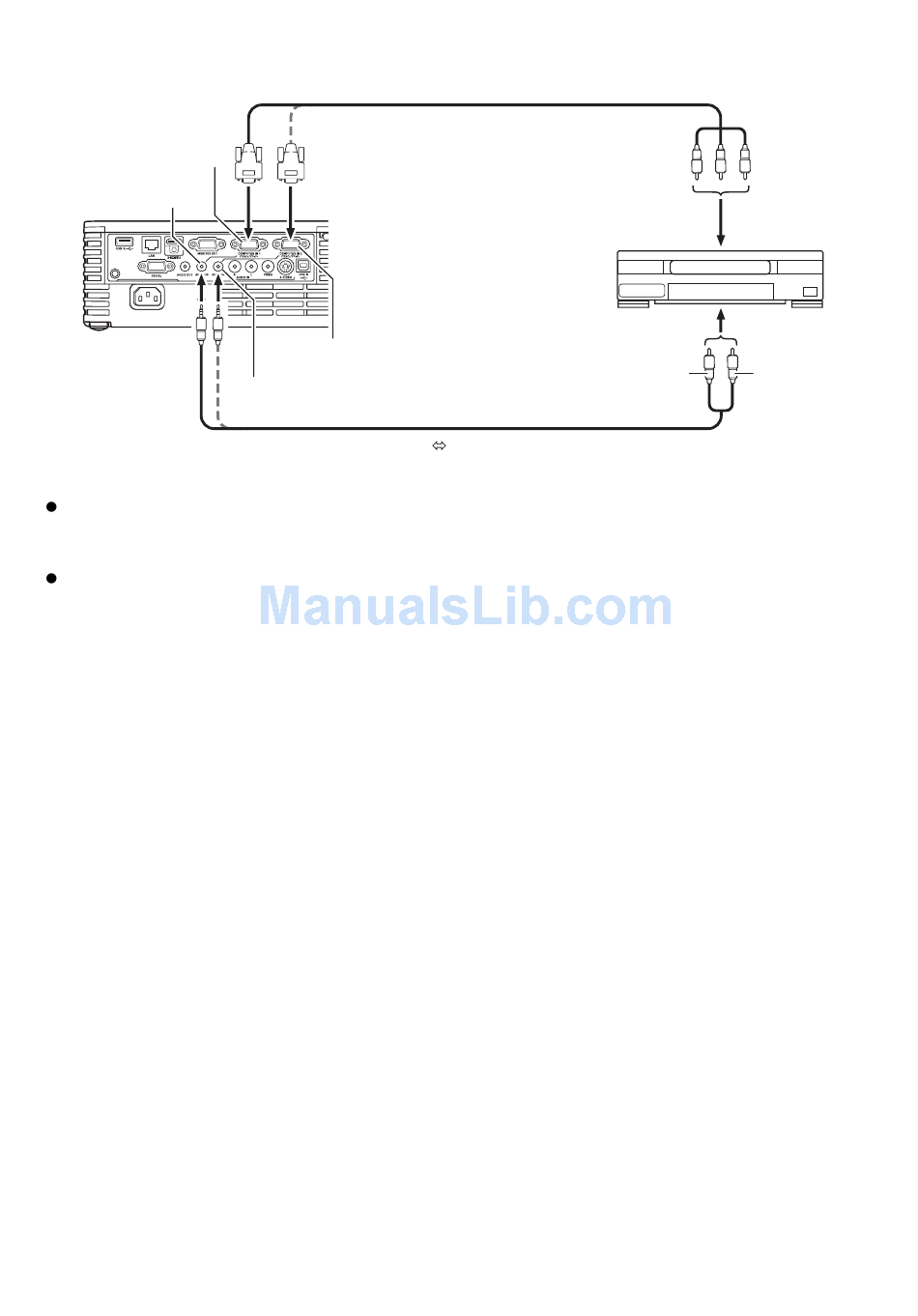

Connection to a component video output

Projector
Video device
Component video cable (commercially available)
COMPUTER IN 1 terminal
AUDIO IN 1 terminal
To component video output
terminals
To AUDIO output terminals
COMPUTER IN 2 terminal
White
Red
AUDIO IN 2 terminal
Stereo mini plug
Pin plug type audio cable
(commercially available)
Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
45
