Casio XJ-S31 User Manual

Casio xj-s31: user guide
Hide thumbs

Advertisement

Quick Links

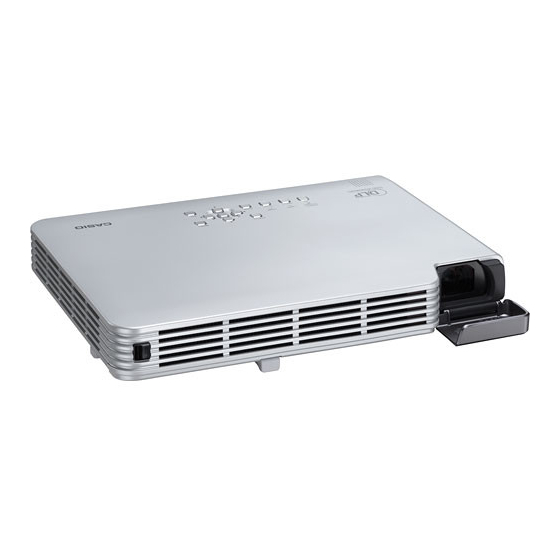

DATA PROJECTOR
XJ-S31/XJ-S36
XJ-S41/XJ-S46
User's Guide
Be sure to read the precautions in the
separate User's Guide (Basic Operation). For
details about setting up the projector and lamp
replacement, see the User's Guide (Basic
Operation).
Be sure to keep all user documentation handy
for future reference.
E

Advertisement

loading

  Also See for Casio XJ-S31

  Related Manuals for Casio XJ-S31

  Summary of Contents for Casio XJ-S31

  • Page 1 XJ-S41/XJ-S46 User’s Guide Be sure to read the precautions in the separate User’s Guide (Basic Operation). For details about setting up the projector and lamp replacement, see the User’s Guide (Basic Operation). Be sure to keep all user documentation handy...
  • Page 2 • CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data due to malfunction or maintenance of this product, or any other reason.
  • Page 3: Table Of Contents

    Password Protecting the Projector ... 13 Inputting a Password ... 13 Using the Password Feature... 13 Entering the Password when Turning On the Projector ... 15 Restoring Projector Settings to Their Initial Factory Defaults... 16 Setup Menu Contents ... 17 Image Adjustment Main Menu ...
  • Page 4: About This Manual

    All of the operations in this manual are explained using the remote controller that comes with the projector. The following key operations can also be performed on the projector instead of the remote controller: [MENU], [ ], [ ], [ ], [ ], [ENTER], [ESC], [ [INPUT], [AUTO], [ZOOM +], [ZOOM –], [FOCUS...
  • Page 5: Operation During Projection

    Operation During Projection This section explains the various types of operations you can perform while the projector is projecting an image. Image Operations During Projection You can perform the following operations while projecting an image. Image brightness adjustment Color mode selection...
  • Page 6: Selecting The Color Mode

    Note (for XJ-S36/XJ-S46 model users) Use the setup menu (page 11) to select the color mode when you have an external device connected to the projector’s USB port. To change the color mode Press the [COLOR MODE] key. This displays the color mode selection window. The currently selected color mode is the one whose button is selected (filled in).
  • Page 7: Momentarily Cutting Off The Input Source Image

    This will capture the image that is on the screen at the moment you press [FREEZE] and stores it in projector memory. That image remains projected on the screen. To restore projection of the image from an input source, press the [ESC] key.
  • Page 8: Displaying A Pointer In The Projected Image

    Displaying a Pointer in the Projected Image You can select from among eight different pointer styles, including various arrow styles, for display in the projected image. Pointers can be used during a presentation to indicate or highlight a specific part of the image. Arrow 1 Note Depending on the pointer style you are using, the pointer may not display properly...
  • Page 9: Changing The Aspect Ratio Of The Projected Image

    Eco Mode Turning on the Eco Mode reduces lamp brightness to save power. The projector’s cooling fan also operates at a slower speed while the Eco Mode is turned on, which results in quieter operation.
  • Page 10: Using The [Func] Key

    • This performs the same operation as pressing the [ASPECT] key ( page 9. Note (for XJ-S36/XJ-S46 model users) When you have an external device connected to the projector’s USB port, use the [FUNC], [ ], [ ], and [ ] keys to control the connected device. For details, see the “USB Function Guide”...
  • Page 11: Configuring Advanced Projector Settings

    Configuring Advanced Projector Settings Your projector has a setup menu that you can use to configure advanced settings. Basic Setup Menu Operations Displaying the Setup Menu Pressing the [MENU] key displays the menu shown below in the center of the projection screen.
  • Page 12: Basic Setup Menu Example

    Note Certain settings on the setup menu cannot be changed while there is no input signal to the projector. Because of this, you should configure setup menu settings after selecting an input source and starting projection. This example covers basic steps only. For more detailed information, see “Setup Menu Contents”...
  • Page 13: Password Protecting The Projector

    Power On Password” setting to configure power on password settings. Inputting a Password The password of your projector is not really a “word” made up of letters, but rather a sequence of remote controller key inputs. The following is the 8-key sequence that represents the initial factory default password.
  • Page 14 You will not be able to use the projector if you forget the password for some reason. If you forget the password, you will need to bring the following two items to your CASIO distributor to have the password cleared. Note that you will be charged to have the password cleared.
  • Page 15: Entering The Password When Turning On The Projector

    After you are finished, press the [MENU] key to exit the setup menu. Entering the Password when Turning On the Projector When you turn on the projector while password protection is turned on will cause a password input dialog box to appear on the projection screen. All projector operations will be accessible to you after you input the correct password and press the [ENTER] key.
  • Page 16: Restoring Projector Settings To Their Initial Factory Defaults

    Restoring Projector Settings to Their Initial Factory Defaults You can use the procedures in this section to restore all of the settings on a particular main menu or all of the settings on the setup menu to their initial factory defaults.
  • Page 17: Setup Menu Contents

    To restore all settings on the setup menu to their initial factory defaults Press the [MENU] key to display the setup menu. Use the [ ] key to select “Restore All Defaults”, and then press the [ENTER] key. This displays a confirmation message asking if you want to initialize all settings. Use the [ ] key to select “Yes”.
  • Page 18: Image Adjustment Main Menu

    Image Adjustment Main Menu Setting Name Input Brightness RCVU Source Specific Contrast RCVU Source Specific Sharpness Source Specific Saturation Source Specific Tint Source Specific Color Mode RCVU Source Specific Color Balance RCVU Source Specific Setting Unit Use this sub-menu to adjust the brightness of the projected image.
  • Page 19 Optimized for still images. In particular, this setting should be used when projecting still images from a digital camera connected to the projector’s VIDEO terminal. Use this sub-menu to return all of the sub-menu items on the Image Adjustment main menu to their initial default settings.
  • Page 20: Volume Adjustment Main Menu

    Specific Setting Unit Use this sub-menu to adjust the volume level of the projector’s speaker. Changing this setting when there is no input signal changes the volume setting of the currently selected signal source. Use this sub-menu to return Volume to its initial default setting.
  • Page 21: Screen Settings Main Menu

    Select this option to project from the back of the screen. This setting flips the front projected image horizontally. Single Use this sub-menu to configure the projector for use in an installation in which it is positioned upside down. Flips the projected image horizontally and vertically.
  • Page 22 Source Defaults Specific Unit Use this sub-menu to specify what should be projected when there is no input signal to the projector. Blue*: Select this option to project a blue screen. Black: Select this option to project a black screen.
  • Page 23: Input Settings Main Menu

    Use this sub-menu to specify manually the type of signal being input from the projector’s AV terminal. Auto*: Select this setting to have the projector switch the video signal system automatically in accordance with the input signal from the video device that is connected to the AV terminal.
  • Page 24: Option Settings 1 Main Menu

    Use this sub-menu to turn the Eco Mode on or off. Select this option to reduce lamp brightness and save power. This setting also reduces the speed of the projector’s cooling fan, which reduces operation noise. Off: Select this option to project at maximum brightness.
  • Page 25 Select this option to turn on Auto Power Off. Off: Select this option to turn off Auto Power Off. You can configure the projector to require input of a password before operation is enabled. For details, see “Password Protecting the Projector” on page 13.
  • Page 26: Option Settings 2 Main Menu

    Restore Menu RCVUN Single Defaults *1 When plug-and-play is turned on, the XJ-S36/XJ-S46 projector will make that device the input source automatically. For details about plug-and-play, see “USB Function Guide” on the bundled CD-ROM. Setting Unit Use this sub-menu to turn zoom memory on or off. Zoom...
  • Page 27: Usb Settings Main Menu Items (Xj-S36/Xj-S46 Only)

    USB Settings Main Menu Items (XJ-S36/XJ-S46 Only) The USB Settings main menu is available only when there is an external device connected to the USB port of the XJ-S36/XJ-S46 model projector. For details, see “USB Function Guide” on the bundled CD-ROM.
  • Page 28: Restore All Defaults Main Menu

    Restore All Defaults Main Menu Setting Name Input Restore All RCVUN Single Defaults Unit Operating RCVUN Single Time Setting Unit This sub-menu returns all sub-menu items on all main menus to their initial default settings. This operation can be performed regardless of the currently selected input source and regardless of whether or not a signal is currently being input.
  • Page 29: Appendix

    Remote Controller Signal Range When performing an operation on the remote controller, point it at the remote control signal receiver on the back or front of the projector. The following illustration shows the range of the remote controller signal. ± 30 degrees max.
  • Page 30: Projection Distance And Screen Size

    Projection Distance and Screen Size Screen Size 200 5.7 m to 11.3 m (18.70 feet to 37.07 feet) 12 m 10 m (39.37 feet) (32.81 feet) (26.25 feet) The following table shows the relationship between the distance and projected image size. Projection Size Diagonal Screen Size...
  • Page 31: Full-Screen Display Of An Rgb Image

    The projector outputs images using XGA (1024 pixels × 768 pixels) video resolution. When the input signal from the computer connected to the projector is not an XGA signal, “Resize Image To Fit” automatically enlarges or reduces the image so it matches the projector’s video resolution and fills the entire screen.
  • Page 32: Supported Signals

    Supported Signals RGB Signal Signal Name VESA 640 × 480/60 640 × 480/72 640 × 480/75 640 × 480/85 800 × 600/56 800 × 600/60 800 × 600/72 800 × 600/75 800 × 600/85 1024 × 768/60 1024 × 768/70 1024 ×...
  • Page 33 Video Signal Signal Name Frequency (kHz) NTSC NTSC4.43 PAL-M PAL-N PAL60 SECAM * Listing of a device in the above table does not guarantee that you will be able to display its images correctly. Horizontal Vertical Frequency (Hz) 15.7 15.7 15.6 15.7 15.6...
  • Page 34 MA0705-A...
