Goodrive800 Pro Series Inverter Unit Hardware Manual
When pushing in/out the inverter unit, use one foot to apply force to the bottom of the unit while holding

the handle to prevent the unit from tipping over, falling over, hitting or injury. See Figure 3-24.
When installing or replacing the inverter unit, wear gloves and safety shoes to prevent against scratching

or smashing.
Fingers should not
be out of this plane
to avoid pressure
injuries.
Grip the
handle firmly.
When pushing in /out
the unit, use one
foot to apply force to
the unit bottom
while holding the
handle to prevent
the unit from tipping
over.
(3) Ensure that the unit is pushed into place. See Figure 3-25.
202202 (V1.0)

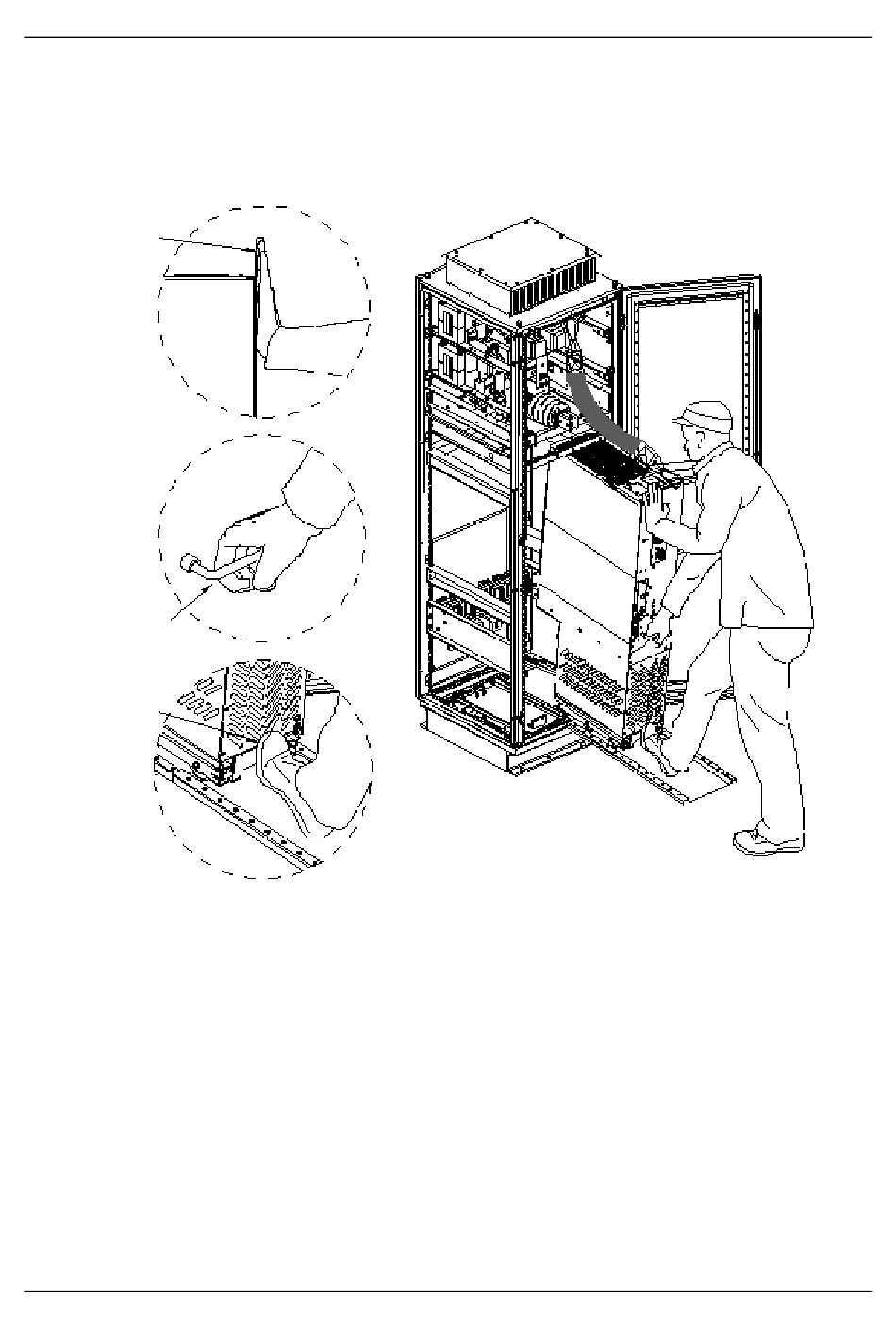

Figure 3-24 Unit entry to the cabinet
Mechanical installation
33
