3.3 Installation procedure

The installation procedure is as follows:
Step 1 Perform unpacking inspection. For details, see 3.3.1 Unpacking inspection.
Step 2 Transport before unpacking. For details, see 3.3.2 Transportation.
Step 3 Unpack. For details, see 3.3.3 Unpacking.
Step 4 Lift the modules. For details, see 3.3.4 Lifting.
Step 5 Install the modules. For details, see 3.3.5 Installation.

3.3.1 Unpacking inspection

After receiving the product, perform the following steps to ensure the product use safety.
202202 (V1.0)
RH: less than 90% Condensation is
not allowed.

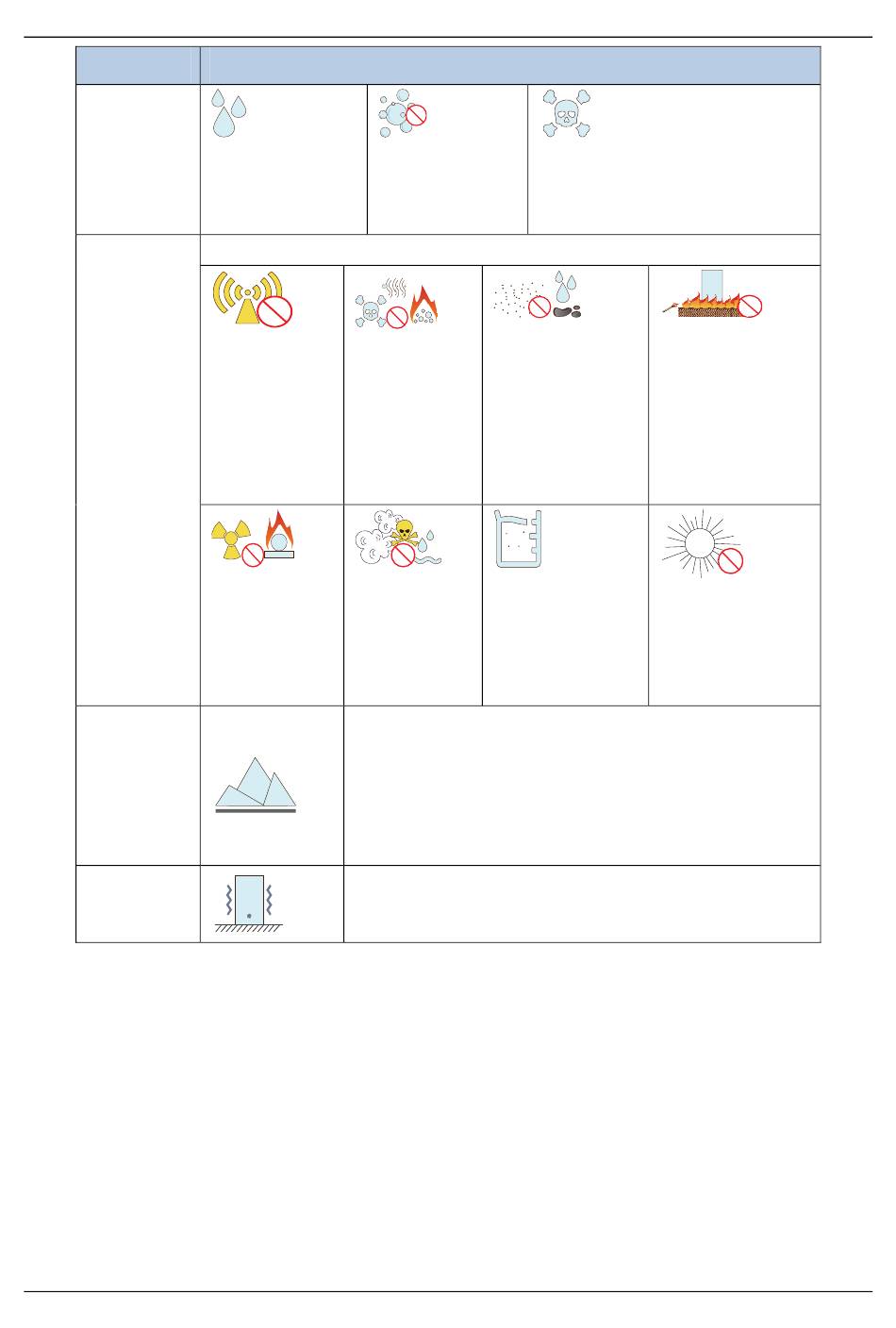

Install the VFD in a place:
Away from Away from oil
electromagnetic mist, corrosive
gases, or
radiation
sources combustible
gases
Without Without hazard
radioactive gases or liquids
substances or
combustible
objects
Lower than 1000 meters

When the altitude exceeds 1000m, derate by 1% for every

additional 100m.
When the altitude exceeds 3000m, consult INVT local

dealer or office.
The max. ACC speed cannot exceed 5.8m/s
Condition
The max. RH cannot exceed 60% in
the environment where there are
corrosive gases.
Without the chance
for foreign objects
such as metal
powder, dust, oil
and water to fall
into the VFD
With low salt
content
Mechanical installation
Do not install the
VFD onto
combustible
objects.
Without direct
sunlight
(0.6g).
