Goodrive800 Pro Series Inverter Unit Hardware Manual
Figure 3-19 shows the installation of two A8i inverter units without the precharge function in a cabinet.

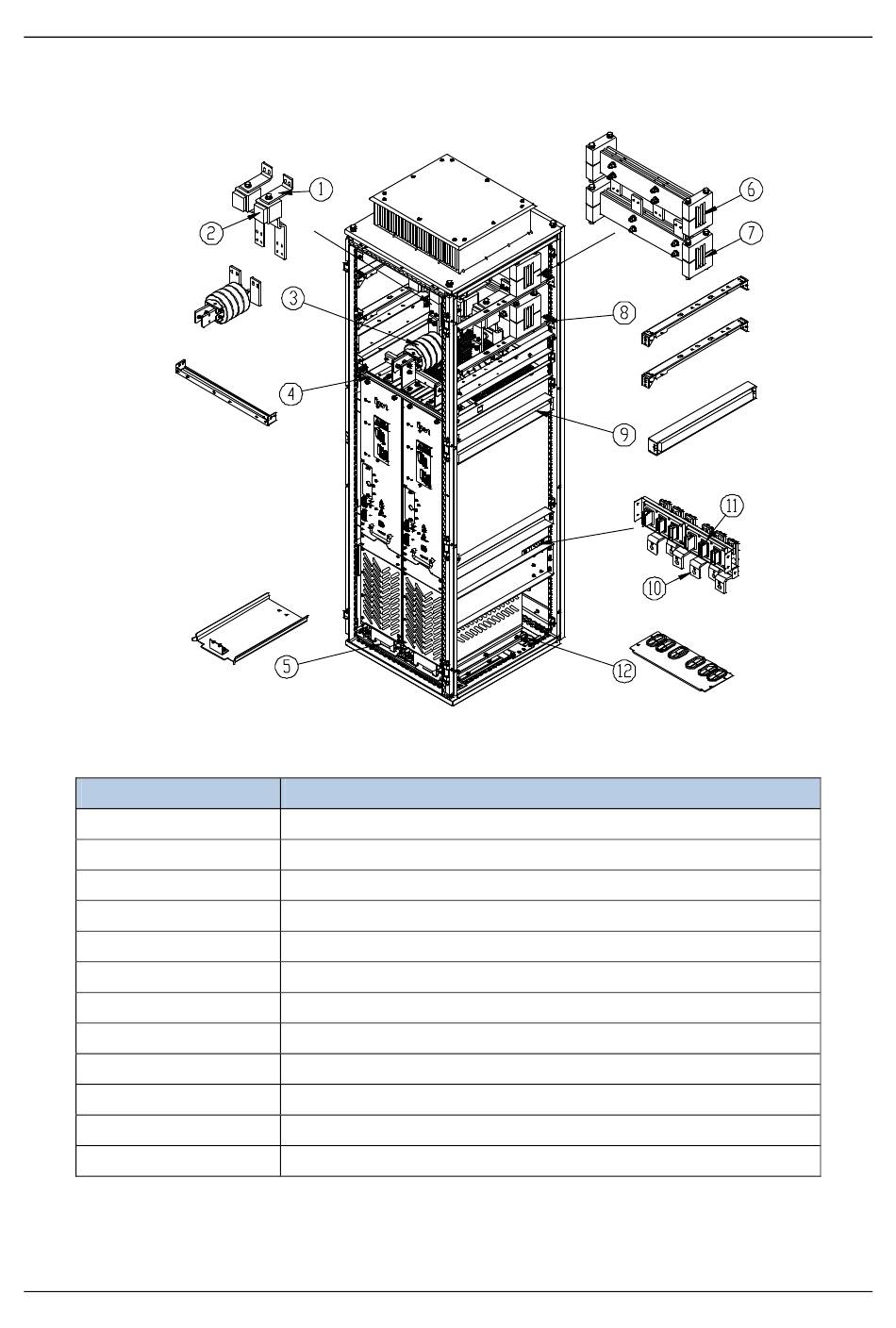

Figure 3-19 Installing two A8i inverter units with the precharge function in a 600mm-wide cabinet
No.
1
2
3
4
5
6
7
8
9
10
11
12
Note: A 40x40 sealing sponge must be used at the position corresponding to the air baffle in the
front/back door panel, which prevents air duct reflow.
202202 (V1.0)
Name
Input copper bar
DC fuse
Magnet ring assembly
Unit-top fixing beam
Unit-bottom fixing plate
(+) busbar and busbar clamp
(-) busbar and busbar clamp
Busbar clamp support
Side air baffle assembly (with sealing sponge)
Output copper bar
Fast connector female end
Bottom outgoing hole
Mechanical installation
