SNMP Manager Functions

The SNMP Manager allows the user to view alarm status, set date/time, issue controls, and perform a

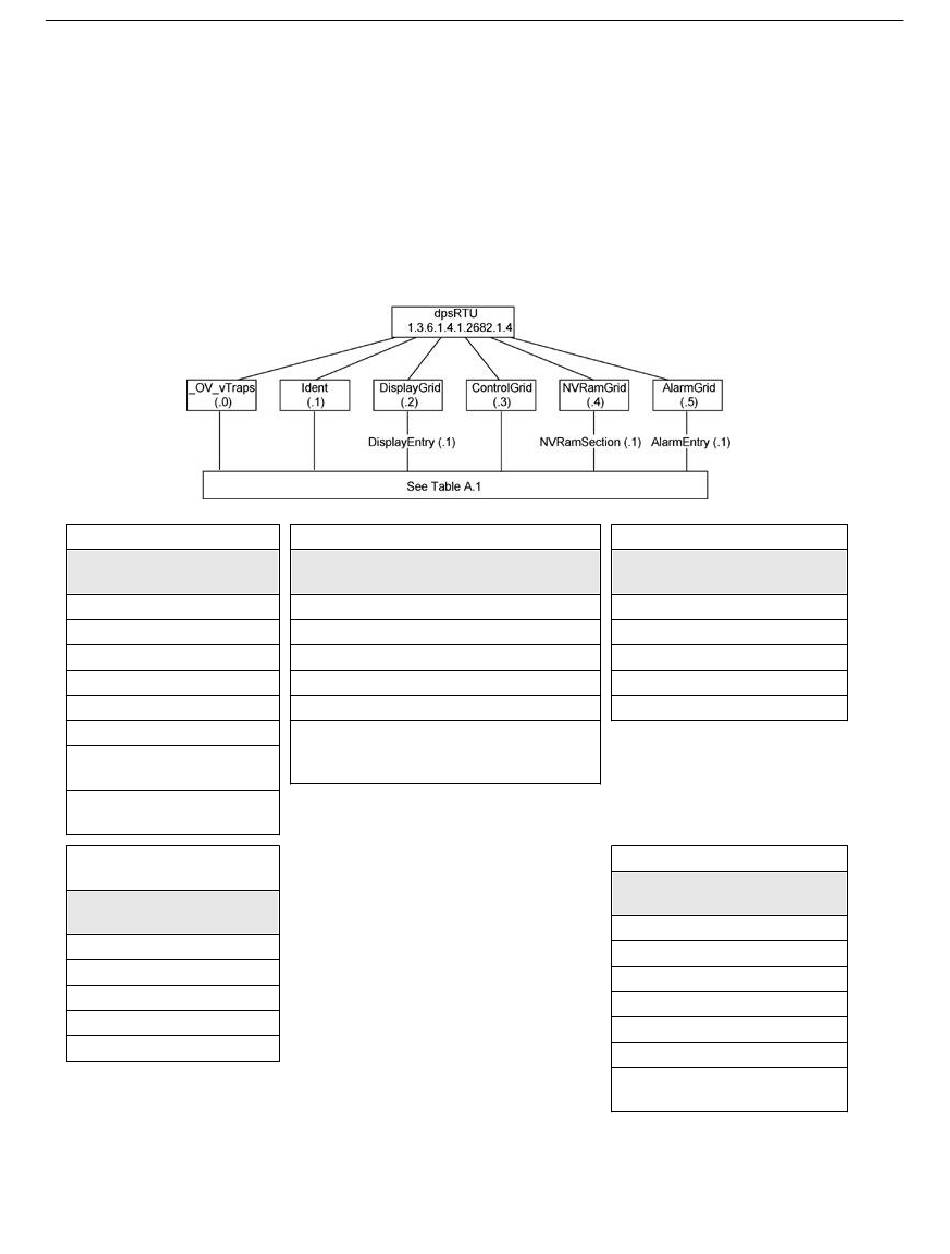

resync. The display and tables below outline the MIB object identifiers. Table 14.3 begins with dpsRTU;
however, the MIB object identifier tree has several levels above it. The full English name is as follows:
root.iso.org.dod.internet.private.enterprises.dps-Inc.dpsAlarmControl.dpsRTU. Therefore, dpsRTU's full
object identifier is 1.3.6.1.4.1.2682.1.4. Each level beyond dpsRTU adds another object identifying
number. For example, the object identifier of the Display portion of the Control Grid is
1.3.6.1.4.1.2682.1.4.3.3 because the object identifier of dpsRTU is 1.3.6.1.4.1.2682.1.4 + the Control
Grid (.3) + the Display (.3).
Tbl. B1 (O.)_OV_Traps points
_OV_vTraps
(1.3.6.1.4.1.2682.1.4.0)
PointSet (.20)
PointClr (.21)
SumPSet (.101)
SumPClr (.102)
ComFailed (.103)
ComRestored (.014)
P0001Set (.10001) through
P0064Set (.10064)
P0001Clr (.20001) through
P0064Clr (.20064)
Tbl. B3 (.3) ControlGrid
points
ControlGrid
(1.3.6.1.4.1.2682.1.4.3)
Port (.1)
Address (.2)
Display (.3)
Point (.4)
Action (.5)
The NetGuardian OID has changed from 1.3.6.1.4.1.2682.1.2 to 1.3.6.1.4.1.2682.1.4 Updated MIB files
are available on the Resource CD or upon request.
Tbl. B2 (.1) Identity points
Ident
(1.3.6.1.4.1.2682.1.4.1)
Manufacturer (.1)
Model (.2)
Firmware Version (.3)
DateTime (.4)
ResyncReq (.5)*
* Must be set to "1" to perform the resync
request which will resend TRAPs for any
standing alarm.
Tbl. B3 (.2) DisplayGrid points
DisplayEntry
(1.3.6.1.4.1.2682.1.4.2.1)
Port (.1)
Address (.2)
Display (.3)
DispDesc (.4)*
PntMap (.5)*
Tbl. B5 (.5) AlarmEntry points
AlarmEntry
(1.3.6.4.1.2682.1.4.5.1)
Aport (.1)
AAddress (.2)
ADisplay (.3)
APoint (.4)
APntDesc (.5)*
AState (.6)
* For specific alarm points, see
Table B6
