Triangle Tube's ProtoNode Startup Guide
Appendix E.
Reference

Appendix E.1. Specifications

One 6-pin Phoenix connector, one RS-485
+/- ground port, power +/- frame ground
Electrical
port
Connections
One 3-pin RS-485 Phoenix connector, one
RS-485 +/- ground port
One Ethernet-10/100 Ethernet port
Pending CE (EN55022;EN55024; EN60950), UL916, Pending FCC Class A Part 15, DNP3
Conformance Tested, OPC Self-tested for Compliance, RoHS Compliant, CSA 205 Approved
Approvals:
BTL Marked
Power
Multi-mode power adapter: 9 - 30VDC or 12 - 24VAC
Requirements
Physical
11.5 cm L x 8.3 cm W x 4.1 cm H (4.5 x 3.2 x 1.6 in.)
Dimensions
Weight:
0.2 kg (0.4 lbs)
Operating
-40°C to 75°C (-40°F to167°F)
Temperature:
Surge Suppression
EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT
Humidity:
5 - 90% RH (non-condensing)
(Specifications subject to change without notice)
Appendix E.1.1.
Compliance with UL Regulations
For UL compliance, the following instructions must be met when operating ProtoNode.
The units shall be powered by listed LPS or Class 2 power supply suited to the expected operating
temperature range.
The interconnecting power connector and power cable shall:
Comply with local electrical code.
Be suited to the expected operating temperature range.
Meet the current and voltage rating for ProtoNode/Net
Furthermore, the interconnecting power cable shall:
Be of length not exceeding 3.05m (118.3")
Be constructed of materials rated VW-1 or FT-1 or better
If the unit is to be installed in an operating environment with a temperature above 65 °C, it should be
installed in a Restricted Access Area requiring a key or a special tool to gain access
This device must not be connected to a LAN segment with outdoor wiring.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
ProtoNode FPC-N34

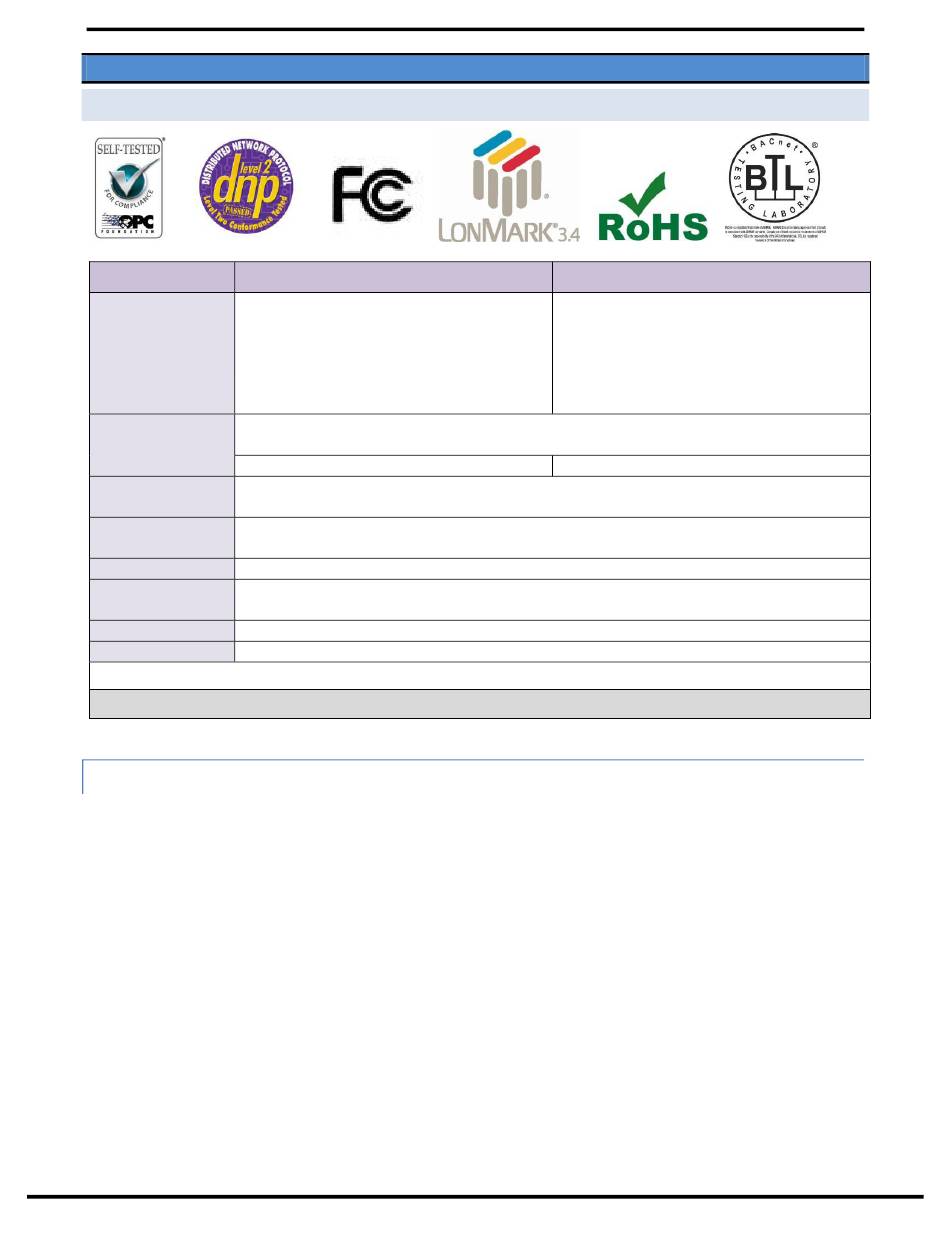

Figure 27: Specifications

Email: support@protocessor.com
ProtoNode FPC-N35
One 6-pin Phoenix connector, one RS-485
+/- ground port, power +/- frame ground
port
One Ethernet 10/100 BaseT port
One FTT-10 LonWorks port
LonMark Certified
Page 39 of 40
