Triangle Tube's ProtoNode Startup Guide
3.2.1

Biasing the Modbus RS-485 Network

An RS-485 network with more than one device needs to have biasing to ensure proper communication.
The biasing needs to be done on one device.
The ProtoNode has 530 Ohm resistors that can be used to set the biasing. The ProtoNode's default
positions from the factory for the Biasing jumpers are OFF.
The OFF position is when the 2 RED biasing jumpers straddle the 4 pins closest to the outside of the
board of the ProtoNode. See
Only turn biasing ON:
o
IF the BMS cannot see more than one device connected to the ProtoNode
o
AND you have checked all the settings (Modbus COM settings, wiring, and DIP switches).
To turn biasing ON, move the 2 RED biasing jumpers to straddle the 4 pins closest to the inside of the
board of the ProtoNode.

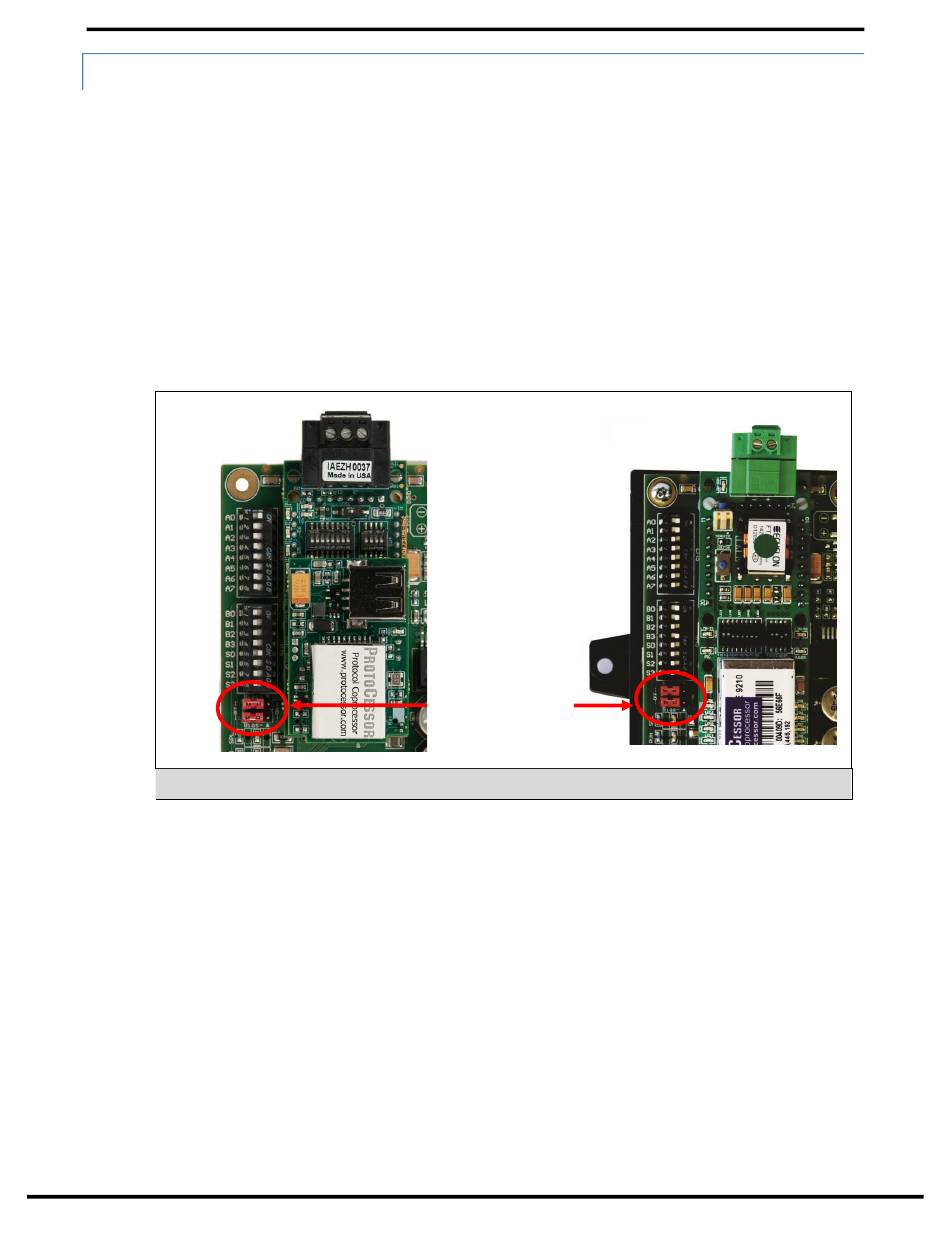

Figure 9: Modbus RS-485 Biasing Jumpers on the ProtoNode N34 (left) and ProtoNode N35 (right)
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Figure
9.
RS-485 Bias Jumpers
Email: support@protocessor.com
Page 15 of 40
