BACnet/IP and Modbus TCP: Setting IP Address for Field Network

From the Web Configurator landing page
the bottom right side of the page to access the FST Web GUI.
The FST Web GUI page will be presented.
From the FST Web GUI's landing page, click on "Setup" to expand the navigation tree and then select
"Network Settings" to access the IP Settings menu.
Enter the new IP address for the ProtoNode's Ethernet port in the "N1 IP address" field.
If necessary, change the Subnet Mask setting in the "N1 Netmask" field.
If necessary, change the IP Gateway setting in the "Default Gateway" field.
Note: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the
IP address of the router that it is connected to.
Click the "System Restart" button at the bottom of the page to apply changes and restart the
ProtoNode.
Unplug Ethernet cable from PC and connect the ProtoNode to the network hub or router.
Record the IP address assigned to the ProtoNode for future reference.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
(Figure
18), click on the "Diagnostics & Debugging" button in

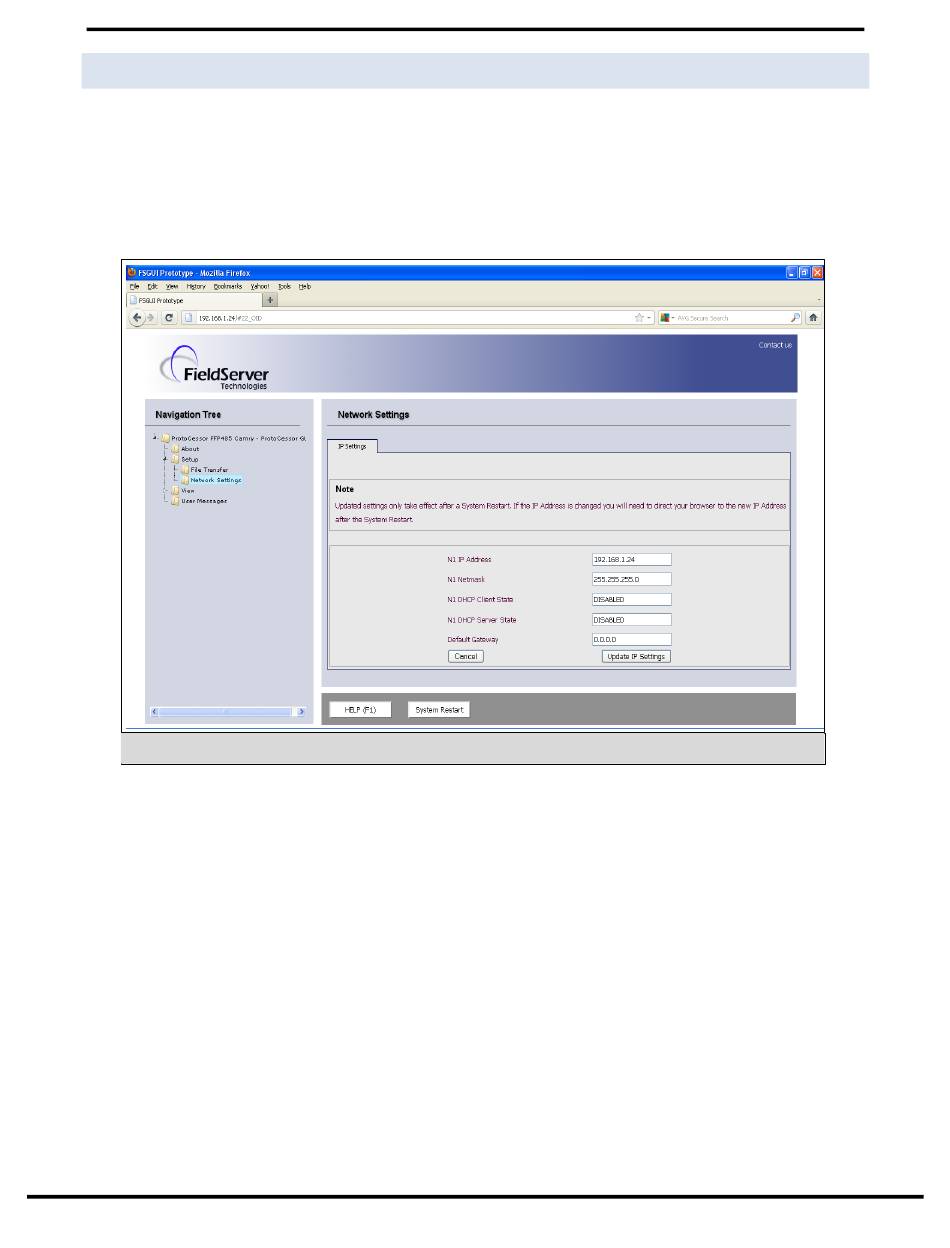

Figure 19: Changing IP Address via FST Web GUI

Email: support@protocessor.com
(Figure
19)
