Triangle Tube's ProtoNode Startup Guide
2.3.1.2
LonWorks DIP Switch Settings
The following chart describes the DIP switch settings for the Prestige and Keystone to support LonWorks on a
ProtoNode FPC-N35.
Cover doesn't need to be removed
Profile -
1 Prestige to Lonworks
2 Prestige to Lonworks
3 Prestige to Lonworks
4 Prestige to Lonworks
5 Prestige to Lonworks
6 Prestige to Lonworks
7 Prestige to Lonworks
8 Prestige to Lonworks
1 Keystone to Lonworks
2 Keystone to Lonworks
3 Keystone to Lonworks
4 Keystone to Lonworks
5 Keystone to Lonworks
6 Keystone to Lonworks
7 Keystone to Lonworks
8 Keystone to Lonworks
NOTE: When setting DIP Switches, please ensure that power to the board is OFF.
2.3.2
BACnet MS/TP (FPC-N34): Setting the MAC Address BACnet Networks
•
Only 1 MAC address is set for ProtoNode regardless of how many devices are connected to
ProtoNode.
Set the BACnet MS/TP MAC address of the ProtoNode to a value between 1 to 127 (MAC Master
•
Address); this is so that the BMS Front End can find the ProtoNode via BACnet auto discovery.
Note: Never set a BACnet MS/TP MAC Address from 128 to 255. Addresses from 128 to 255 are
•
Slave Addresses and can not be discovered by BMS Front Ends that support auto discovery of BACnet
MS/TP devices.
•
Set DIP switches A0 – A7 to assign MAC Address for BACnet MS/TP for the ProtoNode FPC-N34.
Please refer to Appendix D.1 for the complete range of MAC Addresses and DIP switch settings.
•
NOTE: When setting DIP Switches, please ensure that power to the board is OFF.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
FPC-N35-103-401-0823

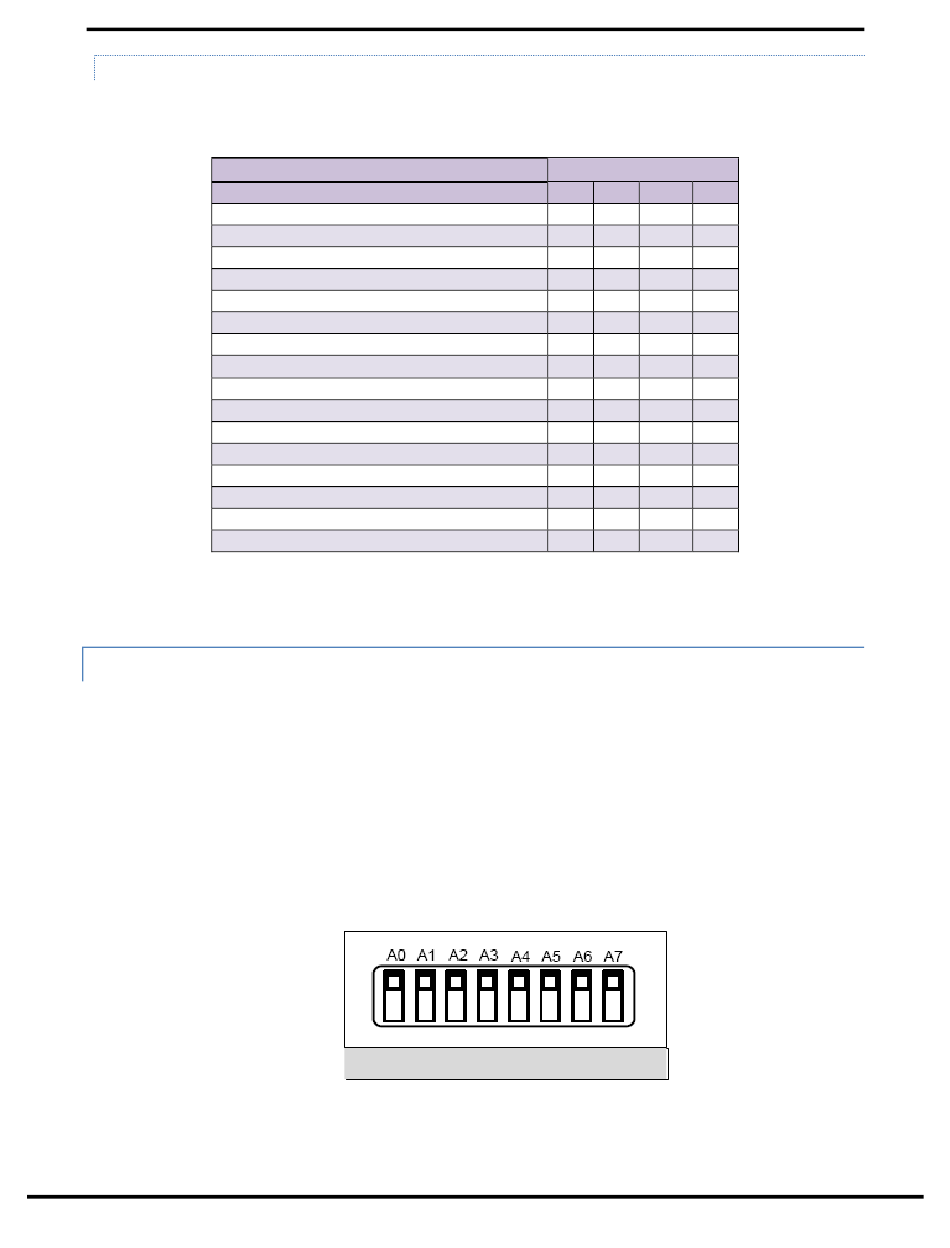

Figure 4: MAC Address DIP Switches
Email: support@protocessor.com
ProtoCarrier DIP Switches
S0
S1
S2
S3
Off
Off
Off
Off
On
Off
Off
Off
Off
On
Off
Off
On
On
Off
Off
Off
Off
On
Off
On
Off
On
Off
Off
On
On
Off
On
On
On
Off
Off
Off
Off
On
On
Off
Off
On
Off
On
Off
On
On
On
Off
On
Off
Off
On
On
On
Off
On
On
Off
On
On
On
On
On
On
On
