Triangle Tube's ProtoNode Startup Guide
2.3.5
BACnet MS/TP (FPC-N34): Setting the Serial Baud Rate (DIP Switch B0 – B3)
DIP Switches B0 – B3 can be used to set the serial baud rate to match the baud rate provided by the
Building Management System for BACnet MS/TP.
DIP Switches B0 – B3 are disabled on ProtoNode FPC-N35 (FPC-N35 LonWorks).
The baud rate on ProtoNode for Metasys N2 is set for 9600. DIP Switches B0 – B3 are disabled for
Metasys N2 on ProtoNode FPC-N34.
NOTE: When setting DIP Switches, please ensure that power to the board is OFF.
2.3.5.1

Baud Rate DIP Switch Selection

ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
B0 B1 B2 B3

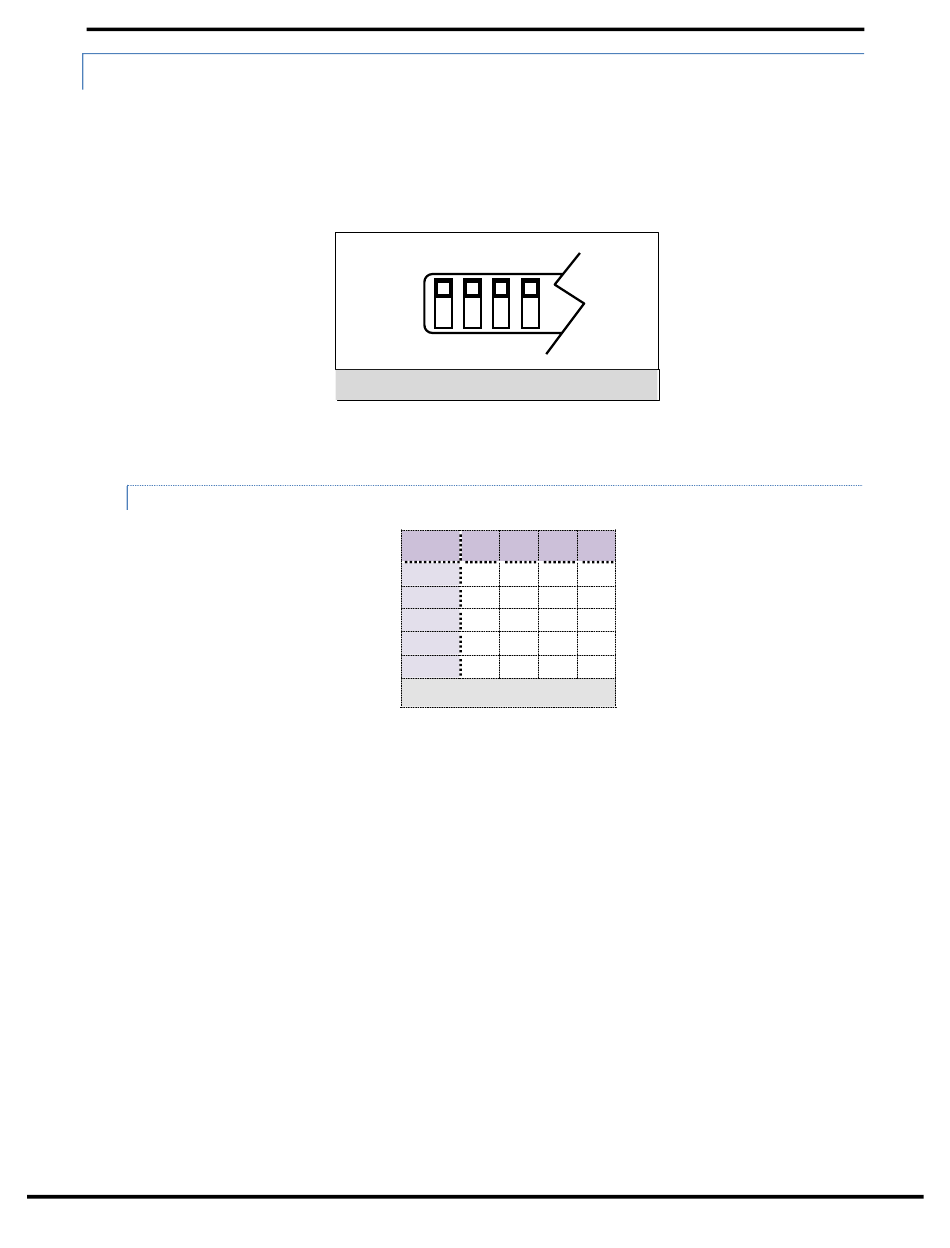

Figure 5: Baud Rate DIP Switches

Baud
B0
B1
9600
On
On
19200
Off Off
38400
On
On
57600
Off Off
76800
On Off

Figure 6: Baud Rate

Email: support@protocessor.com
B2
B3
On
Off
Off
On
Off
On
On
On
On
On
Page 12 of 40
