Triangle Tube's ProtoNode Startup Guide
4.2
BACnet MS/TP and BACnet/IP:
Instances
After setting your PC to be on the same subnet as the ProtoNode (Section 4.1), open a web browser on
your PC and enter the IP address of the ProtoNode; the default address is 192.168.1.24.
If the IP address of the ProtoNode has been changed by previous configuration, you will need to get the
assigned IP address from the network administrator.
The Web Configurator will be displayed as your landing page.
Node_Offset field will be presented displaying the current value (default = 50,000).
Change the value of Node_Offset to establish the desired Device Instance values, and click SUBMIT.
o
Given that: Device Instance = Node_Offset + MAC address
Then: Node_Offset (required) = Device Instance (desired) – MAC address
o
For example:
o
Device 1 has a Modbus Address of 1
Device 2 has a Modbus Address of 2
o
o
Device 3 has a Modbus Address of 3
o
MAC address (Bank "A" DIP switches) = 11
o
Desired Device Instance for 1
o
Node_Offset (required) = 1,011 – (MAC address) = 1,011 – 11 = 1,000
o
The Node_Offset value will be applied to all devices.
o
Device 1 Instance will then be = 1,000 + MAC address = 1,000 + 11 = 1,011
o
Device 2 Instance will then be = Previous Value + 1 = 1,011 + 1 = 1,012
o
Device 3 Instance will then be = Previous Value + 1 = 1,012 + 1 = 1,013
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Setting Node_Offset
st
device = 1,011

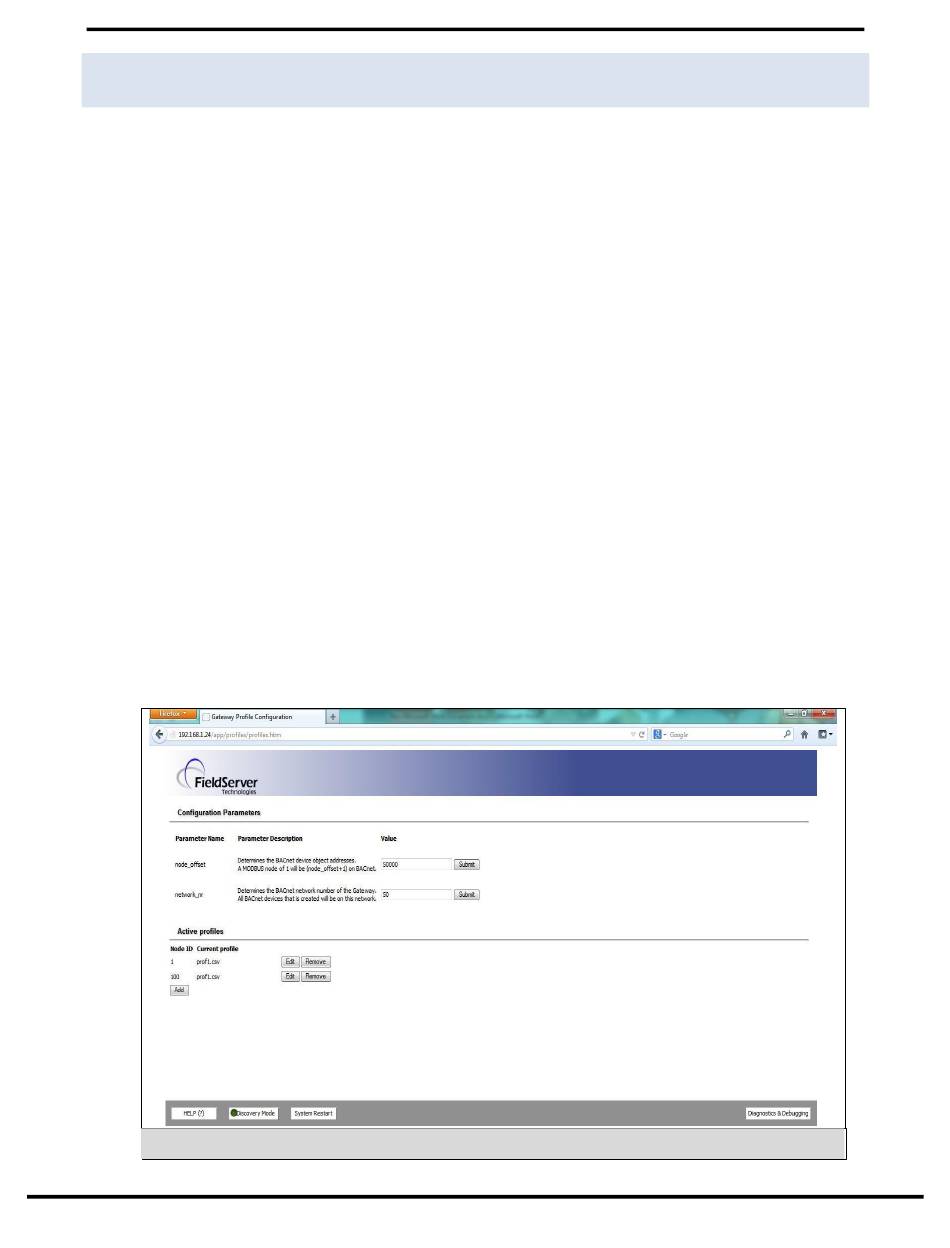

Figure 17: Web Configurator screen

Email: support@protocessor.com
Page 20 of 40
to Assign
Specific Device
17)
(Figure
