Accessing the FST Web GUI from the Web Configurator

After setting your PC to be on the same subnet as the ProtoNode (Section 4.1), open a web browser on
your PC and enter the IP address of the ProtoNode; the default address is 192.168.1.24.
If the IP address of the ProtoNode has been changed by previous configuration, you will need to get the
assigned IP address from the network administrator.
The Web Configurator will be displayed as your landing page.
Below the Active Profiles heading you should see profiles listed for connected devices. If no profiles are
present, then the wiring, baud rate, and DIP switch settings must be checked, because there is a
problem with device communications. All the active profiles must show the correct Node-ID's before
proceeding.
To access the FST Web GUI, click on the "Diagnostics & Debugging" button in the bottom right side of
the page.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com

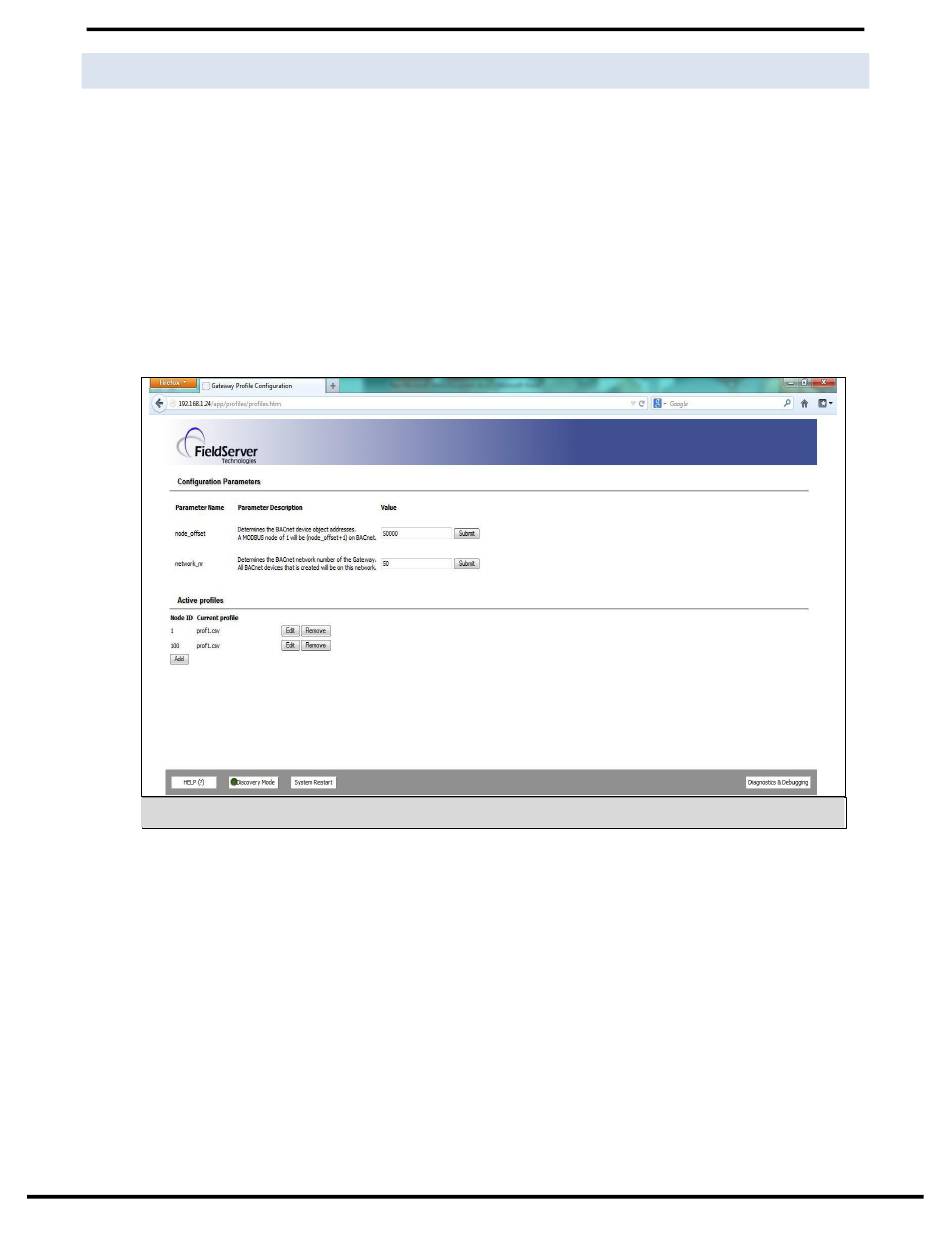

Figure 18: Web Configurator screen with Active Profiles

Email: support@protocessor.com
Page 21 of 40
(Figure
18)
