- Page 1 FieldServer X-25 Start-Up Guide APPLICABILITY & EFFECTIVITY Effective for all systems manufactured after March 2009 Sierra Monitor Company Kernel Version: 5.12 Document Revision:...
-
Page 2: Table Of Contents
Appendix A.3. Material Service Orders (MSO) Procedure ... 11 Appendix B. Limited Warranty ... 12 FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Table of Contents... -
Page 3: Equipment Set-Up
Power Supply Mounting The FS-X25 Series FieldServer is supplied with an accessory bag which allows selection of adhesive feet (for standing on a shelf) or mounting plates for wall or panel mount. A DIN Rail Mounting Kit (P/N FS-8915-28) may be ordered separately. -
Page 4: Specifications
CE EN55022, EN 55024 (Specifications subject to change without notice) FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com Page 4 of 12... -
Page 5: Product Description

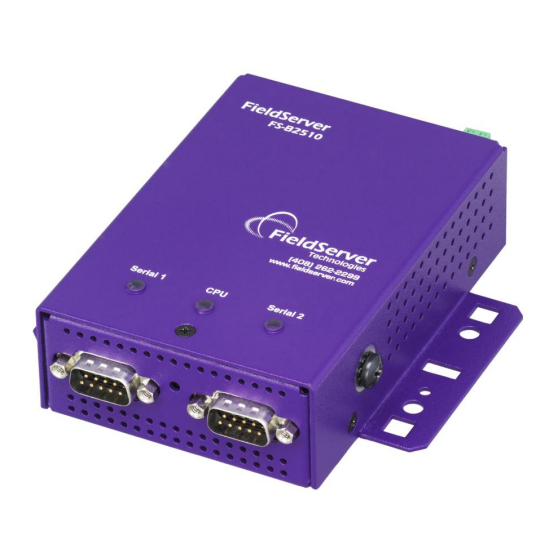

Serial 1, Serial 2 CPU communication activity FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com LED on: 100 megabit connection LED off: 10 megabit connection... -
Page 6: Connection To The Device
The cable used (serial cross-over cable) is available at any electronics retailer/distributor. FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com (Used when “3 wire”... -
Page 7: Pinouts For Rs-485 Connection
(not supplied) or a direct Ethernet cable (supplied). Figure 2: Ethernet Connection port FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com... -
Page 8: Operation
Disable any wireless Ethernet adapters on the PC/Laptop, It is important that the PC/Laptop is on the same subnet as the FieldServer. The FS-x25 does not have a default IP address, but it will be 192.168.2.xxx. Refer to the FieldServer Utilities Manual for information on how to change the FieldServer’s IP address. -
Page 9: Connection To The Fieldserver Using Rui (Ruinet)
Select Start|Programs|FieldServer Utilities, double click on the Remote User Interface icon or double click on the Remote User Interface Icon on the desktop. If Ruinet does not automatically bring you to the main menu, select the FieldServer by typing the 2-digit number to the left of the title name. -
Page 10: Test And Commission The Fieldserver
FieldServer FS-X25 Start-Up Guide Type "L" (for local filename) to specify the name and extension of the file to be sent to the FieldServer. Hit <Enter> when done. The Remote User Interface Utility will automatically select config.csv for download of csv files. On rare occasions where other files need to be downloaded to the FieldServer type “O”... -
Page 11: Appendix A. Troubleshooting Tips
Ensure that the IP address is 192.168.2.xxx and the netmask 255.255.255.0 Ensure that the PC and FieldServer are on the same IP Network, or assign a Static IP Address to the PC on the 192.168.2.0 network using the Remote User Interface Utility. Refer to the FieldServer Utilities manual for information. -
Page 12: Appendix B. Limited Warranty
In all cases FieldServer Technology’s responsibility and liability under this warranty shall be limited to the cost of the equipment. The purchaser must obtain shipping instructions for the prepaid return of any item under this warranty provision and compliance with such instruction shall be a condition of this warranty.
