S
ERVICE

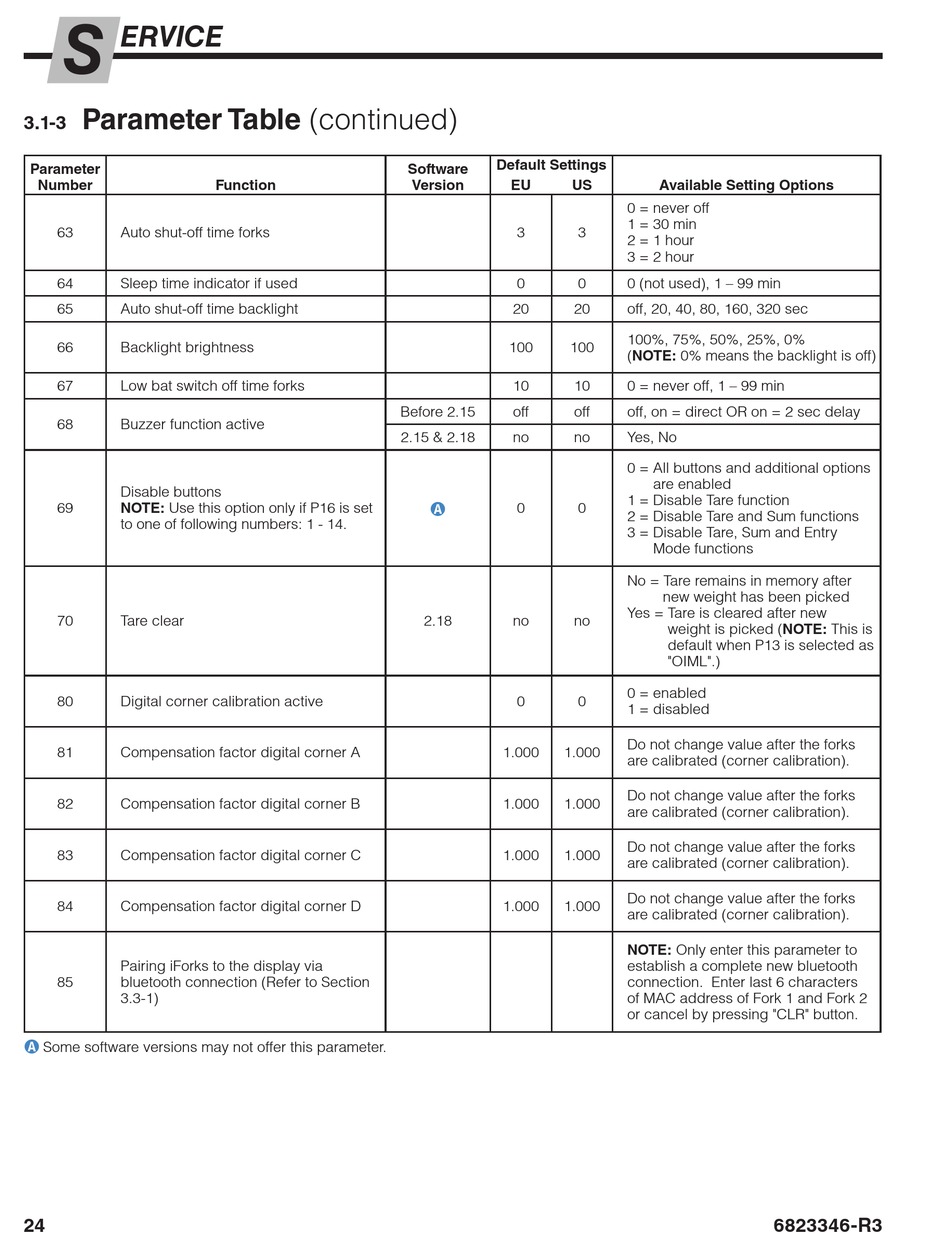

Parameter Table (continued)
3.1-3
Parameter
Number
63 Auto shut-off time forks
64 Sleep time indicator if used
65 Auto shut-off time backlight
66 Backlight brightness
67 Low bat switch off time forks
68 Buzzer function active
Disable buttons
69 NOTE: Use this option only if P16 is set
to one of following numbers: 1 - 14.
70 Tare clear
80 Digital corner calibration active
81 Compensation factor digital corner A
82 Compensation factor digital corner B
83 Compensation factor digital corner C
84 Compensation factor digital corner D
Pairing iForks to the display via
85 bluetooth connection (Refer to Section
3.3-1)
Some software versions may not offer this parameter.
A
24
Function
Default Settings
Software
Version EU US
3 3
0 0
20 20
100 100
10 10
Before 2.15 off off
2.15 & 2.18 no no
0 0
A
2.18 no no
0 0
1.000 1.000
1.000 1.000
1.000 1.000
1.000 1.000
Available Setting Options
0 = never off
1 = 30 min
2 = 1 hour
3 = 2 hour
0 (not used), 1 – 99 min
off, 20, 40, 80, 160, 320 sec
100%, 75%, 50%, 25%, 0%
(NOTE: 0% means the backlight is off)
0 = never off, 1 – 99 min
off, on = direct OR on = 2 sec delay
Yes, No
0 = All buttons and additional options
are enabled
1 = Disable Tare function
2 = Disable Tare and Sum functions
3 = Disable Tare, Sum and Entry
Mode functions
No = Tare remains in memory after
new weight has been picked
Yes = Tare is cleared after new
weight is picked (NOTE: This is
default when P13 is selected as
"OIML".)
0 = enabled
1 = disabled
Do not change value after the forks
are calibrated (corner calibration).
Do not change value after the forks
are calibrated (corner calibration).
Do not change value after the forks
are calibrated (corner calibration).
Do not change value after the forks
are calibrated (corner calibration).
NOTE: Only enter this parameter to
establish a complete new bluetooth
connection. Enter last 6 characters
of MAC address of Fork 1 and Fork 2
or cancel by pressing "CLR" button.
6823346-R3
