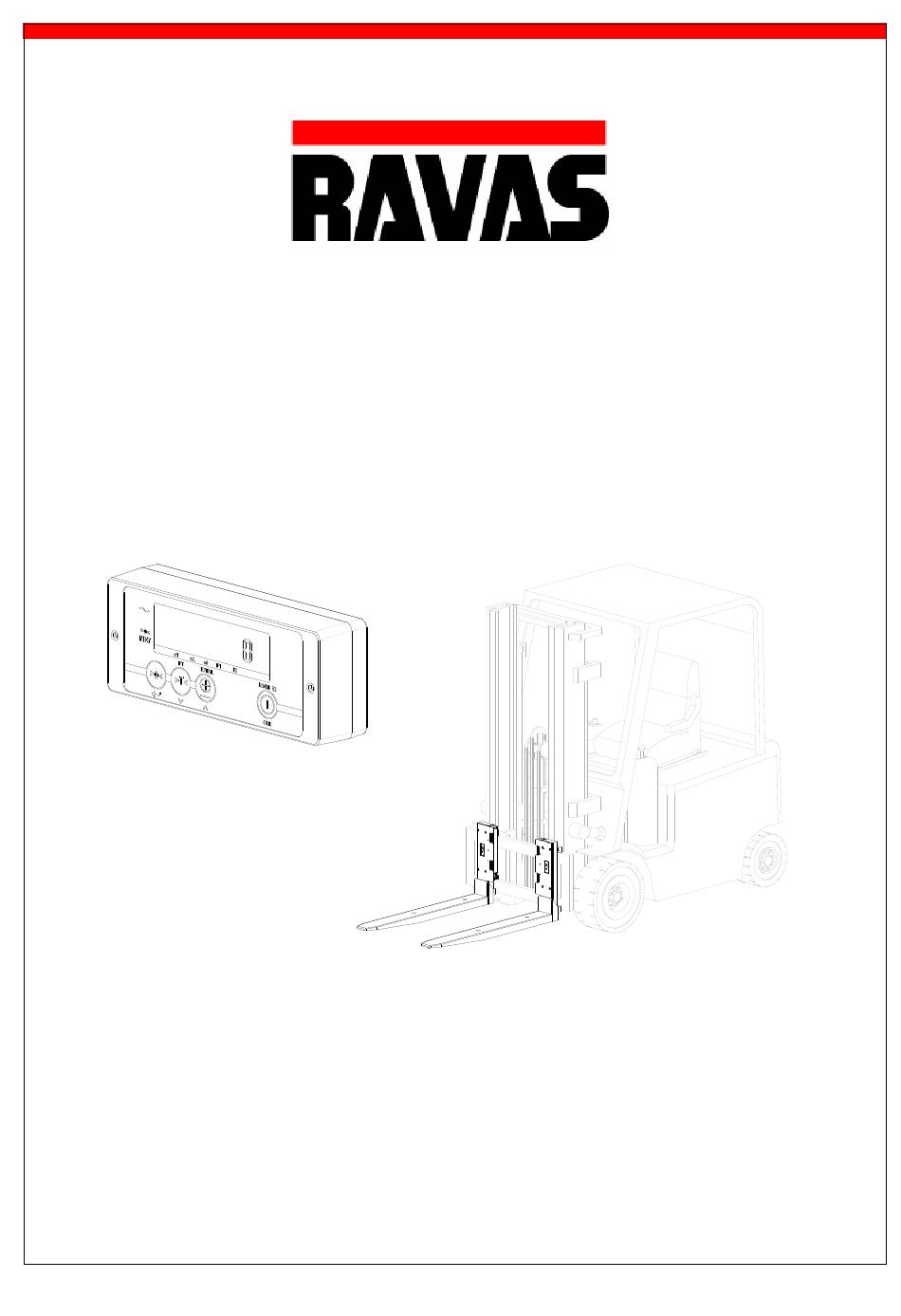

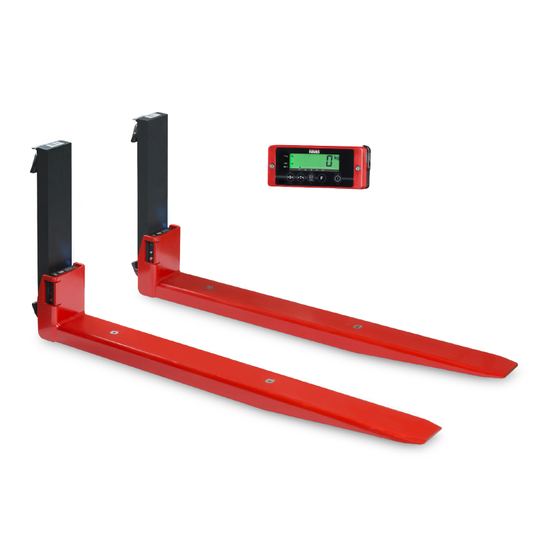

- Page 1 USER MANUAL iForks-Economy 2.0 iForks-Economy 2.0 USER MANUAL –...
- Page 2 We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the parts are processed and disposed off in the right manner.
-
Page 3: Table Of Contents
5.8.2 Net weighing: manual tare PT 5.9 Adding and reset 5.10 KG-LB switch 5.11 User settings 5.11.1 Set the auto shut-off time indicator 5.11.2 Set the sleep mode time indicator 5.11.3 Set backlight (intensity in %) iForks-Economy 2.0 USER MANUAL –... -
Page 4: Introduction
Follow the contents of the manual precisely. Always do things in the correct order. This manual should be kept on a safe and dry place. In case of damage or loss the user may request a new copy of the manual from RAVAS. Warnings & Safety measures When using the iForks, please observe the instructions and guidelines contained in this manual carefully. -
Page 5: System Setup
System setup iForks Installing the iForks The standard forks must be taken off the carriage plate. The are placed on the carriage plate. iForks Locking the iForks-Economy 2.0 USER MANUAL –... -
Page 6: Installing The Indicator
Find a suitable position for the indicator: 1. at the cabin’s roof. 2. on the right side of the cabin, mounted onto a side-rail. 3. on the dashboard. Installation of the indicator bracket & support. Installation indicator and printer bracket (=option) iForks-Economy 2.0 USER MANUAL –... -
Page 7: Placing Battery Packs In The Iforks
4. Push the locking clips down to secure the battery packs. iForks Switching on the 1. Switch on the forks by pressing 2. The blue LED on both the blue buttons on both forks. iForks will start blinking automatically. iForks-Economy 2.0 USER MANUAL –... -
Page 8: Switching On Indicator
Weigh! Switching off the system TOTAL KG/LB 8 sec. 3 sec. Switch off the indicator by pressing the on/off key for 3 seconds. Switch off the forks by pressing the blue buttons for 8 seconds. iForks-Economy 2.0 USER MANUAL –... -
Page 9: Changing The Batteries
(left and right) will flash at the same time. LOW BATTERY Working mode Twice every 10 sec. Sleep mode Twice every 10 sec. iForks Changing the battery packs of the 4.2.1 Take out both battery packs iForks-Economy 2.0 USER MANUAL –... - Page 10 The red LED turns off and the green LED will illuminate. IMPORTANT: Charge both batteries simultaneously. 4 hours iForks 4.2.3 Replace the battery packs of the (see step 4.4, page 9) iForks-Economy 2.0 USER MANUAL –...
-
Page 11: Changing The Batteries Of The Indicator
Be sure the batteries are positioned Remove the battery holder correctly. Check the polarity! and remove the empty batteries. Close the battery cover of the indicator housing and lock by screwing clockwise. iForks-Economy 2.0 USER MANUAL –... -
Page 12: Use
Use (accurate weighing) 3 - 5 min. After 3 to 5 minutes the load cells have reached the operational temperature. Don’t lift loads before the zero-point correction has been executed min -10°C max 40°C 15°F 105°F iForks-Economy 2.0 USER MANUAL –... -
Page 13: Zero Check Before A Weighing
Before each weighing it is necessary to check whether the system is unloaded and free. If the indicator does not determine the zero point automatically, it must be done manually using the >0< key. Weighing position NOT OK iForks-Economy 2.0 USER MANUAL –... -
Page 14: Establish Wireless Communication And Weigh
If the indicator does not determine the zero point automatically, it must be done manually using the >0< key. 1000 TOTAL KG/LB System is ready to weigh. Before the next weighing, check the zero point again. iForks-Economy 2.0 USER MANUAL –... -
Page 15: Auto-Reconnect Function
< 20 sec. Just wait for maximum 20 seconds. The wireless link will re-connect automatically. TOTAL KG/LB > 20 sec. If the wireless link does not re-connect, then first restart the forks, and then restart the indicator. iForks-Economy 2.0 USER MANUAL –... -
Page 16: 5.4 Auto Shut-Off Indicator
Countdown starts: If there is no action for 30 min., the countdown starts. Press any key during countdown to cancel auto-shut-off and go back to the weighing mode. TOTAL KG/LB TOTAL KG/LB - Indicator off iForks-Economy 2.0 USER MANUAL –... -
Page 17: Auto Shut-Off Iforks
Auto shut-off TOTAL KG/LB TOTAL KG/LB iForks 2 hour no weighing ! - Indicator off TOTAL KG/LB Switch on the iForks: Restart the indicator: press the on/off key. press the blue button on both forks. iForks-Economy 2.0 USER MANUAL –... -
Page 18: Indicator Functions
ZERO the weight shown is within the zero range the display is showing the net weight displayed weight in kilograms displayed weight in pounds low battery indicator low battery fork 1 low battery fork 2 iForks-Economy 2.0 USER MANUAL –... - Page 19 Operation of a key is not accepted unless the weighing system is stable (and the “load stable” pointer lights up). This means that the indicator only executes commands with a stable load. For a detailed description of the functions check our operational manual CODE ENTRY RELAY Indicator 4100 at www.myravas.com. iForks-Economy 2.0 USER MANUAL –...
-
Page 20: Error Messages
ErrF1 Problem with fork 1 (no communication) Restart indicator. Restart forks & indicator ErrF2 Problem with fork 2 (no communication) Restart indicator. Restart forks & indicator ‐‐‐‐ Load cell signal negative Lift up the forks from the ground Battery of indicator is empty Replace the 4 AA batteries +F1 Battery of fork 1 is empty Replace both battery packs and charge both battery packs +F2 Battery of fork 2 is empty Replace both battery packs and charge both battery packs DISPLAY MESSAGES Display Meaning BltF1 Successful Wireless link with fork 1 No error BltF2 Successful Wireless link with fork 2 No error iForks-Economy 2.0 USER MANUAL –... -
Page 21: Gross / Tare / Net Weight
Net / Tare / Gross weight EXPLANATION: Net(1) + Tare(2) = Gross(3) 6.8.1 Net weighing: automatic tare TOTAL KG/LB TOTAL KG/LB TOTAL KG/LB The indicator is set to zero. The “NET” pointer shows that the tare weight is activated. iForks-Economy 2.0 USER MANUAL –... - Page 22 TOTAL KG/LB 1000 The display shows the net value of the weighed load. TOTAL KG/LB TOTAL KG/LB The gross weight is displayed again. 1000 iForks-Economy 2.0 USER MANUAL –...
-
Page 23: Net Weighing: Manual Tare Pt
Press the up or down key until the desired value is reached. TOTAL KG/LB TOTAL KG/LB Press the up or Press ENTER down key until to activate the the desired value tare weight. is reached. iForks-Economy 2.0 USER MANUAL –... - Page 24 TOTAL KG/LB 1000 The “NET”pointer lights up TOTAL KG/LB TOTAL KG/LB 1000 iForks When the are completely unloaded, the tare value is displayed negatively. iForks-Economy 2.0 USER MANUAL –...
- Page 25 TOTAL KG/LB TOTAL KG/LB The gross weight is displayed again. iForks-Economy 2.0 USER MANUAL –...
-
Page 26: Adding And Reset
KG/LB TOTAL KG/LB Press the TOTAL key to add the load weight to the total weight. 1000 If a printer is installed, a printout will be made. The gross, net and tare weights are printed. iForks-Economy 2.0 USER MANUAL –... - Page 27 TOTAL KG/LB 3 sec. The subtotal can be checked by pressing the TOTAL key for 3 sec. 3 sec. TOTAL = RESET TOTAL & PRINT KG/LB = RESET TOTAL iForks-Economy 2.0 USER MANUAL –...
-
Page 28: Kg-Lb Switch
5.10 KG - LB switch TOTAL KG/LB TOTAL KG/LB 8 sec. KG/LB KG/LB TOTAL KG/LB Or press KG/LB again to return to KG. iForks-Economy 2.0 USER MANUAL –... -
Page 29: User Settings
These user settings can be changed if TOTAL key for desired. See next pages. 10 sec. EXIT & SAVE 3 sec. Back to weigh mode EXIT without SAVING Back to weigh mode iForks-Economy 2.0 USER MANUAL –... -
Page 30: Set The Auto Shut-Off Time Indicator
5.11.1 Set the auto shut-off time indicator (delay time in minutes) 0 min = indicator always on 5.11.2 Set the sleep mode time indicator (delay time in minutes) 0 min = indicator always on iForks-Economy 2.0 USER MANUAL –... -
Page 31: Set Backlight (Intensity In %)
5.11.3 Set backlight (intensity in %) 0 % = backlight off iForks-Economy 2.0 USER MANUAL –...
