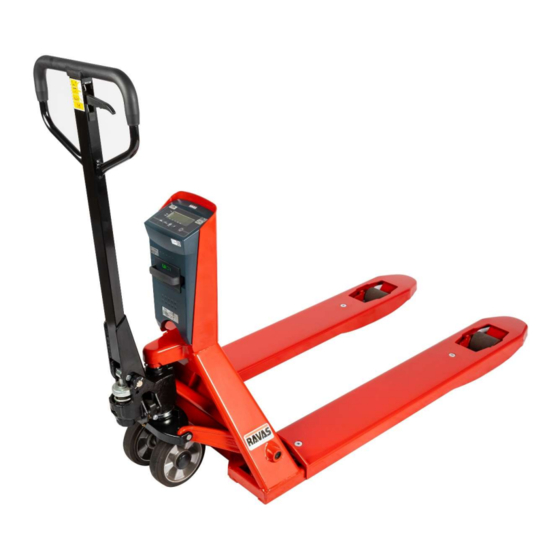

RAVAS-110
OWNERS MANUAL
We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis
that the parts are processed and disposed off in the right manner.
More information can be found on our website www.ravas.com.
Rev.20201102
Printing/typographical errors and model changes reserved
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ravas 100 Series
Summary of Contents for Ravas 100 Series

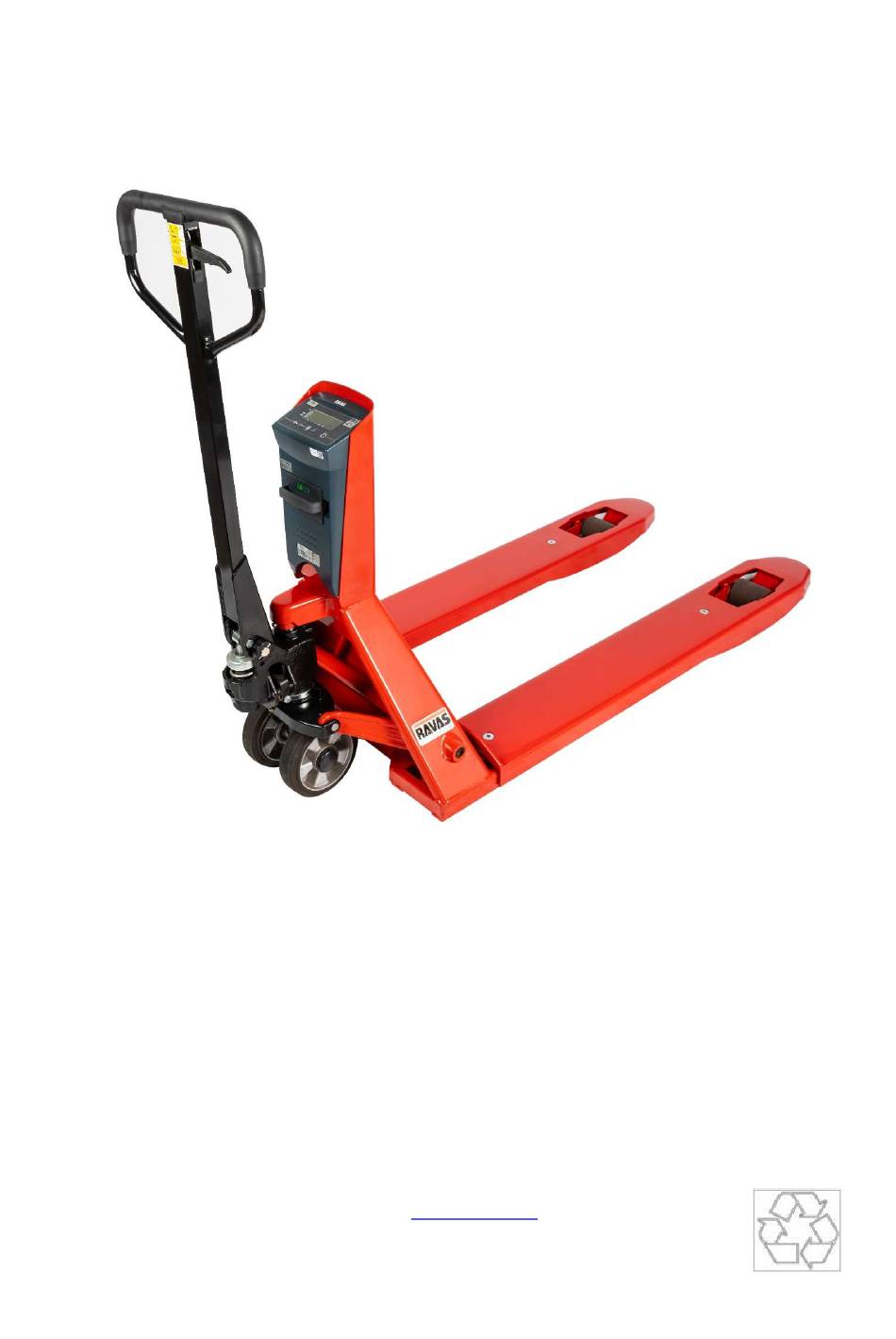

- Page 1 RAVAS-110 OWNERS MANUAL We would like to inform you about the fact that this RAVAS product is 100% recyclable on the basis that the parts are processed and disposed off in the right manner. More information can be found on our website www.ravas.com.
-
Page 2: Operation Manual
OPERATORS MANUAL RAVAS 110 INDEX PAGE 1. Safety Instructions 2. System Setup 3. Operation Manual Accurate Weighing Touch Panel Display Net + Tare = Gross On / Off Error Messages Zero and Tare Functions Manual Tare Summing Total and reset 4. - Page 3 The unit may be loaded with weights up to 5000 lb. However we advise you not to move any weights above 1650 lb. (750 kg) with the unit. RAVAS is not responsible for injury that may result when moving heavy loads.
- Page 4 2. SYSTEM SET UP Installation of pump handle (Your local dealer may have done this) Make sure the lever is pushed down to the Thread the chain through the hole in the “pump” position. triangle and through the hole in the axle. Place the handle bar onto the triangle and Push the silver part “A”...
- Page 5 Installing the batteries (Your local dealer may have done this) The power supply to the system takes place through 4 AA batteries. When used normally, the batteries will last for about 1 year. When the voltage level of the batteries is running low, the display will show “LO-BA“. When the batteries are completely empty, the weighing system shuts off.
-
Page 6: Table Of Contents
3. OPERATION MANUAL INDEX PAGE Accurate Weighing Touch Panel Display Net + Tare = Gross On / Off Error Messages Zero and Tare Functions Manual (Preset) Tare Summing Total and reset... -
Page 7: Accurate Weighing
Accurate Weighing -2 ... -
Page 8: Touch Panel Display
Touch Panel Indicator Tare Gross... -
Page 9: On / Off
On / Off... -
Page 10: Error Messages
Error Messages max. -
Page 12: Zero And Tare Functions
Zero and Tare Functions... -
Page 13: Manual (Preset) Tare
3.7 Manual Tare Entry... -
Page 14: Summing
Summing... -
Page 15: Total And Reset
Total and Reset... - Page 16 4 TROUBLESHOOTING No power Change 4x AA batteries cells See page 11 batteries Batteries have been entered the wrong way. Accuracy Check if there is a Load left and right fork with for example body weight repeatability mechanical problem. and see if weight changes when you are in different positions on the scale.
- Page 17 The potentiometers Move the board and but pressure with fingers on the with which we potentiometers while looking at the display to see if it calibrate the output of reacts. Do not touch the contact itself. the load cells, are mechanical parts therefore, higher risk components...
- Page 18 Not summing Operator error Load is not stable. Scale needs to be unloaded before accepting new print. System will not print weights that are smaller than the graduation. HELP HELP 2 Scale is overloaded Take load from scale. If there is no load do the same messages checks as you do with HELP 3 and 7.
- Page 19 5 CALIBRATION CALIBRATION INSTRUCTIONS INDICATOR 110 DETERMINE THE SOFTWARE VERSION Switch the system on. ❏ The indicator shows the following sequence: 8888.8 (testing LCD segments) 7.x (software version) 13425 (the calibration number) (current weight, standard weigh mode). DEFINING ZERO ...
- Page 20 Single point calibration Return to the lowest value. ❏ The indicator shows the value of the first calibration point, the lowest indication bar is flashing. Load the weighing system with a known weight and enter this weight on the indicator by pushing the 0/T...
- Page 21 Attention: during the start-up sequence of the indicator a calibration number is briefly shown in the display. This number is changed automatically after each calibration. In case of legal for trade systems, this number is recorded by the approving official, so that one can always verify whether a later calibration has been done by non-authorised persons.
