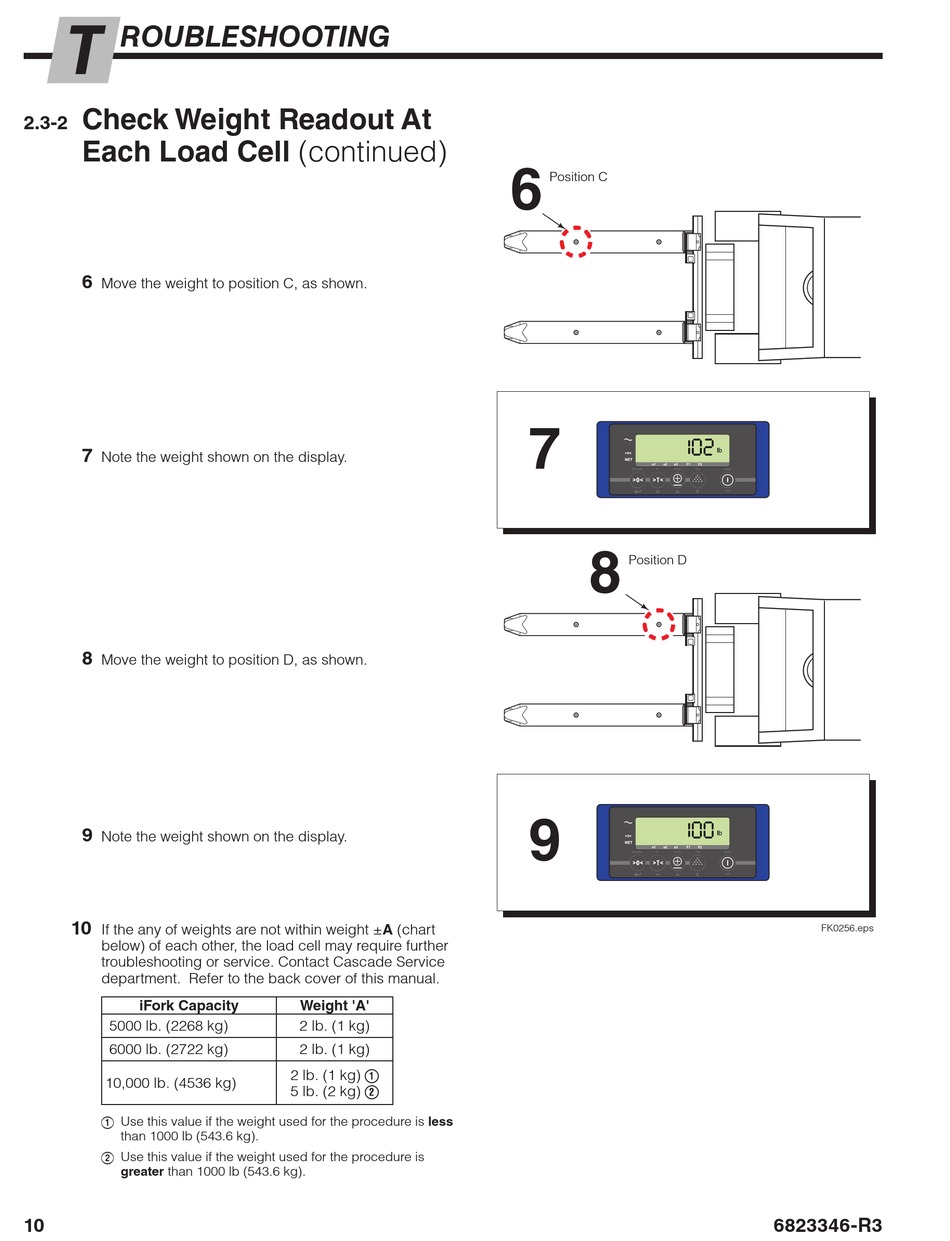

Ravas iForks Service Manual page 12

T
ROUBLESHOOTING
Check Weight Readout At
2.3-2
Each Load Cell (continued)
6
Move the weight to position C, as shown.
7
Note the weight shown on the display.
8
Move the weight to position D, as shown.
9
Note the weight shown on the display.
10
If the any of weights are not within weight ±A (chart
below) of each other, the load cell may require further
troubleshooting or service. Contact Cascade Service
department. Refer to the back cover of this manual.
iFork Capacity
5000 lb. (2268 kg)
6000 lb. (2722 kg)
10,000 lb. (4536 kg)
Use this value if the weight used for the procedure is less
1
than 1000 lb (543.6 kg).
Use this value if the weight used for the procedure is
2
greater than 1000 lb (543.6 kg).
10
Weight 'A'
2 lb. (1 kg)
2 lb. (1 kg)
2 lb. (1 kg)
1
5 lb. (2 kg)
2
6
Position C
7
8
Position D
9
FK0256.eps
6823346-R3
