Ravas iForks Service Manual page 14

T
ROUBLESHOOTING
Debug Mode (Continued)
2.3-2
5

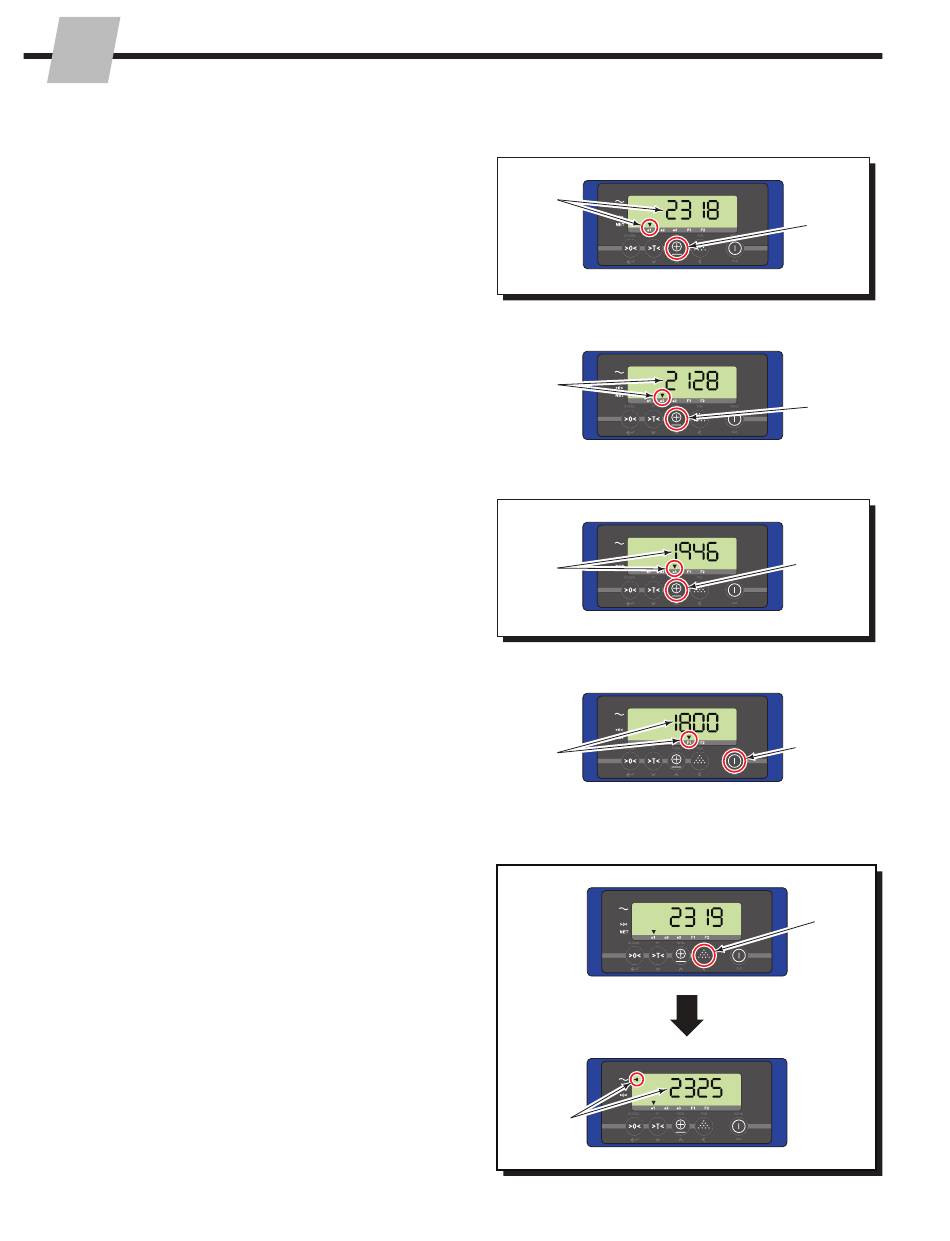

The display will show the AD count for Corner A.
An arrow over e1 will show.
6
Press the "Total" button to view the next AD count.
7
The display will show the AD count for Corner B.
An arrow over e2 will show.
8
Press the "Total" button to view the next AD count.
9
The display will show the AD count for Corner C.
An arrow over e3 will show.
10
Press the "Total" button to view the next AD count.
11
The display will show the AD count for Corner D.
An arrow over F1 will show.
12
To exit Debug mode, press "On/Off" button to leave
debug mode. The display will go back to weighing
mode.
To View Digital Corner Calibration Values:
Typically, parameter 80 (digital corner calibration) is
enabled and parameters 81-84 (a compensation factor for
each corner) can range from 0.98 to 1.020. Original AD
counts are multiplied by a compensation factor (one of
parameters 81-84) after a corner calibration is performed.
Example of a load cell:
AD Count: 2319
Compensation Factor: 1.0026
Calibrated AD Count: 2325
To view the calibrated AD count perform the following:
1
During Steps 5, 7, 9, and/or 11, in the previous section,
press the "Sampling" button to view the calibrated AD
count.
2
An arrow appears next to the tilde symbol (~) on
the display. This indicates that the AD count has a
compensation factor applied.
NOTE: To view parameter values, refer to Section 3.1 for
accessing parameters.
12
5
7
9
11
FK0243.eps
2
FK0244.eps
6
8
10
12
1
6823346-R3
