SERVICE MANUAL
iForks
1
SERVICE MANUAL
–iForks

Advertisement

Table of Contents
loading

Related Manuals for Ravas iForks

Summary of Contents for Ravas iForks

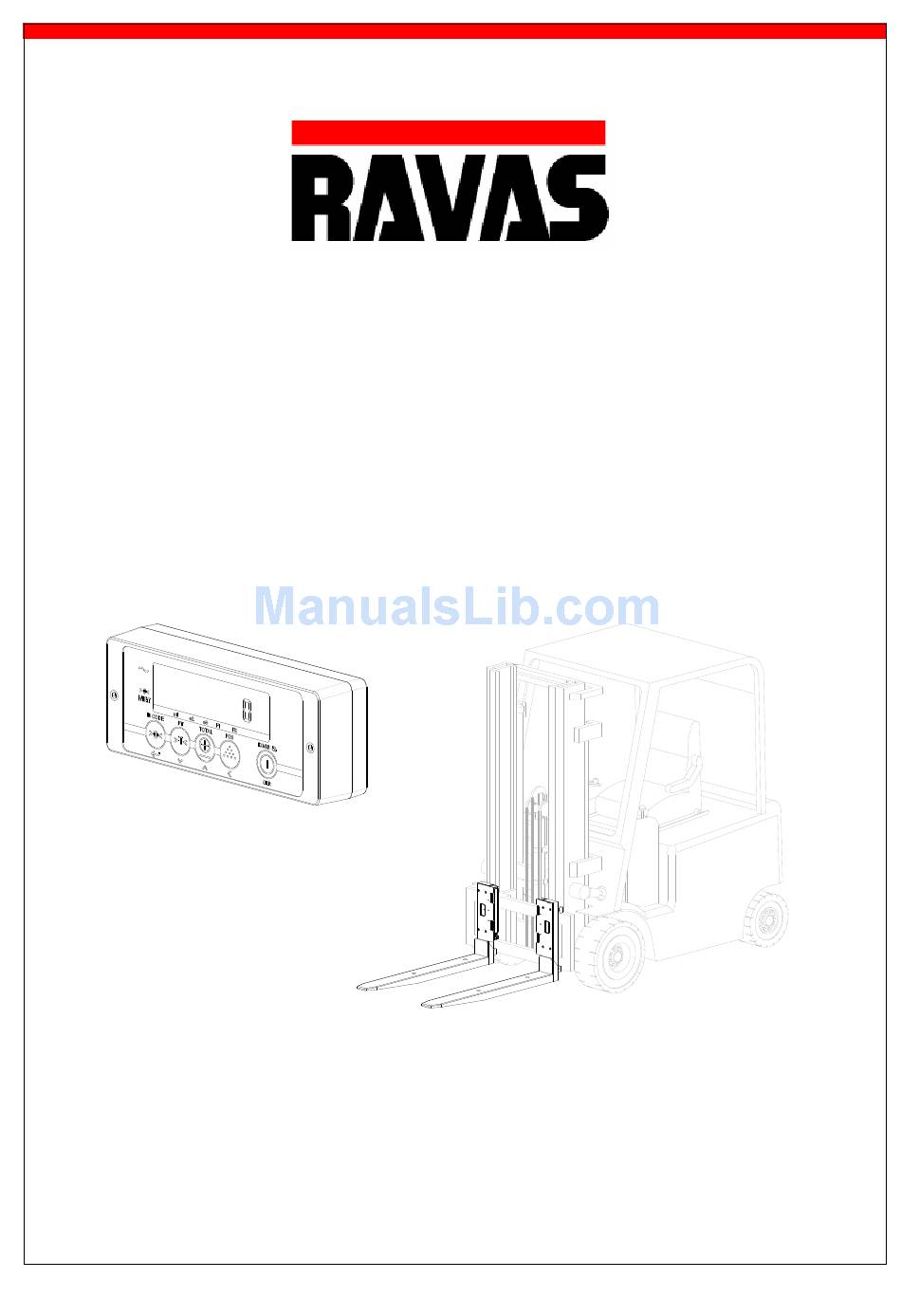

  • Page 1 SERVICE MANUAL iForks SERVICE MANUAL –iForks...

  • Page 2: Table Of Contents

    After Calibration procedure activate correction sensor P40= CS_FA Remove JP1 for calibration lock. We would like to inform you about the fact that this RAVAS product is 100 % recyclable on the basis that the parts are processed and disposed off in the right manner.

  • Page 3: Calibration

    TOTAL KG/LB > 10 sec. >10 sec. may vary per version may vary per version 3 sec time out and the display will show 0.0 Press key 3 sec to store 3 sec. calibration timeout recovery memory SERVICE MANUAL –iForks...

  • Page 4: Corner Calibration

    In case indicator is off, start up the indicator. Press the on/off key. Else continue with 3. Check if the calibration- jumper is installed on the Put an empty pallet on iForks. board of the indicator. > 3sec. ID CODE TOTAL KG/LB >...
  • Page 5 KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Put load M (100–500kg), for example 200 kg, on position A of the pallet. ID CODE TOTAL KG/LB Put load M (100–500kg) on position B of the pallet. SERVICE MANUAL –iForks...
  • Page 6 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Put load M (100–500kg) on position C of the pallet. ID CODE TOTAL KG/LB Put load M (100–500kg) on position D of the pallet. SERVICE MANUAL –iForks...
  • Page 7 SERVICE MANUAL –iForks...

  • Page 8: Weight Calibration

    Press the on/off key. Else continue with 3. Check if the calibration- M = total calibration weight loaded onto the jumper is installed on the iForks (incl. pallet if used) board of the indicator. > 3 sec. ID CODE TOTAL KG/LB >...
  • Page 9 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Change if needed ! ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB SERVICE MANUAL –iForks...
  • Page 10 ID CODE TOTAL KG/LB 3 sec. ID CODE TOTAL KG/LB Move the pointer to e2 ID CODE TOTAL KG/LB Change the value if needed, by pressing the >0< key shortly. (see also steps 9 - 12) SERVICE MANUAL –iForks...
  • Page 11 Change gravitation value if needed (enter Press key 3 the g-value of the sec to store current location) calibration recovery Or confirm with enter memory SERVICE MANUAL –iForks...

  • Page 12: Parameter Settings

    2.18: Setting com2.1 & 2.2 2.18: End character com2.2 only cr/lf/crlf End character com2 cr/lf/crlf Protocol com2 0(PC bi-directional);1(PC Excel format on print command);2 (remote display);3 (printer protocol with power control);4 (printer protocol without power control);5 (not used);6 (PC Excel Format SERVICE MANUAL –iForks...
  • Page 13 Scale id number 0 - 9999 Software version parameters not active for iForks, because Dual Bluetooth installed on COM1. ** Sequence when COM2.1&COM2.2 are both activated, first printing (COM2.1) and then communication with Bluetooth to PDA (COM2.2). Leave the parameter-menu and store all entries by pressing 2 times shortly on the CLR key.

  • Page 14: To Backup Initial Parameter Settings + Calibration

    Use the arrow keys up & down & shift to go to parameter setting 91 Press the enter key  The display shows Set—for 10 seconds  The display shows P92  Push the on/off key 2 times to leave the parameter setting menu SERVICE MANUAL –iForks...

  • Page 15: Indicator Startup Routine - Software Version

    3. Indicator startup routine - software version 2.18 Sequence in the display, when powering ON the iForks indicator:  Full display “88888” (Same as in 2.15)  Software version number: 1.20C  CF number (New starting from 2.18)  CA number (New starting from 2.18) ...
