Check Weight Readout At Each Load Cell - Ravas iForks Service Manual

T
ROUBLESHOOTING
Check Weight Readout At
2.3-2
Each Load Cell
Use this procedure to determine if the display is showing
instability problems (weight changes).
NOTE: For this procedure, a weight of at least 50 lb.
(23 kg) is required.
1
If required, turn on display. Verify that the display is
zeroed.
2

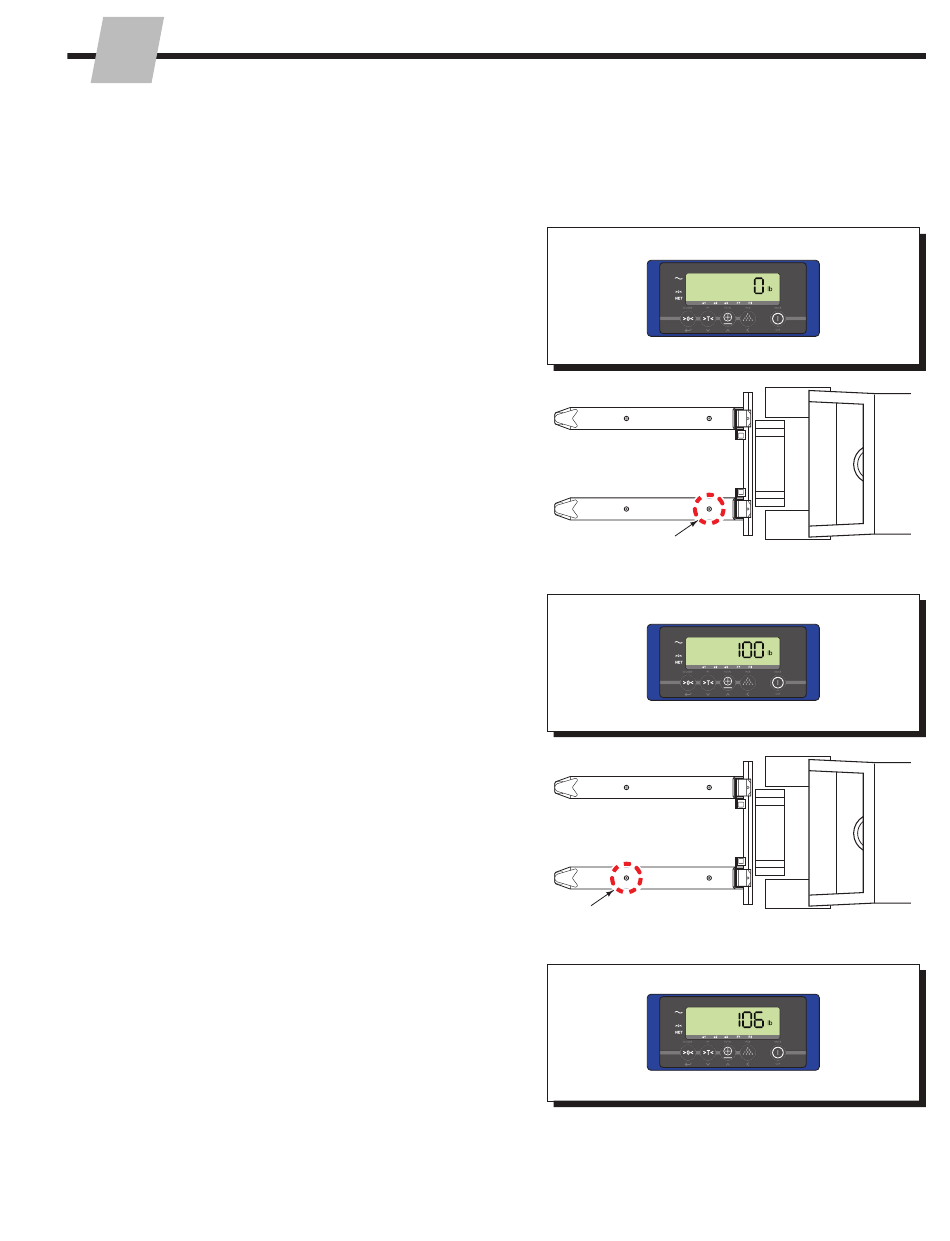

Place a known weight on position A, as shown.
3
Note the weight shown on the display.
4
Move the weight to position B, as shown.
5
Note the weight shown on the display.
Procedure continued on next page
