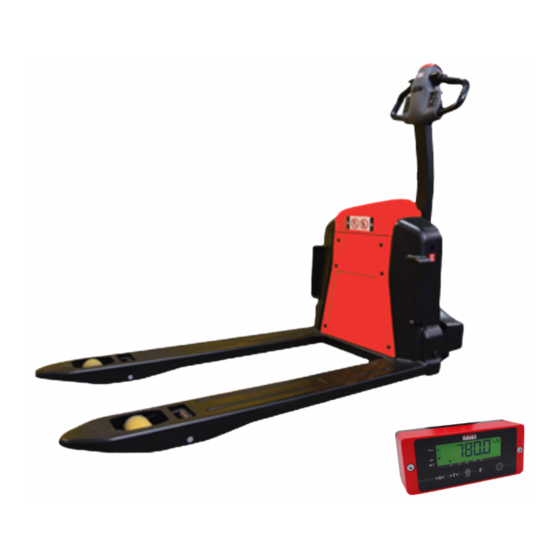

iJack - 40
iJack - 40
(4,000 LBS. Capacity)
(4,000 LBS. Capacity)
Owner's Manual
www.ravas.com
www.ravas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iJack-40 and is the answer not in the manual?

Questions and answers

Related Manuals for Ravas iJack-40

Summary of Contents for Ravas iJack-40

  • Page 1 - 40 iJack - 40 (4,000 LBS. Capacity) (4,000 LBS. Capacity) Owner’s Manual www.ravas.com www.ravas.com...
  • Page 2 We would like to inform you about the fact that this RAVAS product is 100” recyclable on the basis that the parts are processed and disposed of in the right manner.

  • Page 3: Table Of Contents

    OPERATION MANUAL IJACK-40 INDEX PAGE 1. iJack-40 Features 2. iJack-40 Specs 3. Safety Instructions 4. The Weighing Electric Pallet Truck 5. 320 Indicator 6. Indicator Functions 7. Indicator Calibration 8. Touch Panel Indicator 9. Printer (Opton) 10. Relay (Option) 11. Trouble Shooting 12.

  • Page 4: Ijack-40 Features

    FEATURES Safe Optimized Structure, Easy Operation The iJack-40 Uses the Second Generation Drive Technology and Brushless DC Motor. The Metal Protective Cover of the Battery There is No Need to Replace the Carbon Can Be Flipped Over, Which Can Effectively Brush and the Drive is More Powerful.
  • Page 5 SPECS - iJack 40 Distinguishing Mark Manufacturer RAVAS Model Designation iJack 40 Drive Unit Electric Operator Type Pedestrian Rated Capacity Lbs. 4,000 Load Center Distance 23.62 Axle Center to Fork Face 37.40 Wheelbase Weights Service Weight (Include Battery) Lbs. Axle Loading with Load, Driving Side/Loading Side Lbs.
  • Page 6 www.ravas.com...

  • Page 7: Safety Instructions

    3. No weighing operations allowed if any objects are in the vicinity; around, or close to the load 4. RAVAS is not responsible for physical harm done to the operator because of the presence of the indicator. 5. Any modifications done to the system must be approved in writing from the supplier, prior to any work being completed.

  • Page 8: The Weighing Electric Pallet Truck

    2º the indicator will automatically shut off. An uneven floor will have a greater effect on weighing ability. An even floor is optimal. The most accurate weighing result is obtained when the center of gravity of the load is placed evenly between the forks. www.ravas.com...
  • Page 9 However, high-pressure cleansing in combination with warm water or chemical cleansers will lead to the entry of moisture and therefore negatively influence the operation of the system. - Only specialists may perform any welding. This is to avoid damage to electronics and load cells. www.ravas.com...

  • Page 10: Indicator

    BENEFITS ƒ Code entry, lb/kg toggle ƒ Relay for automatic dosing ƒ Display with backlight ƒ Internal clock for date/time ƒ For warehousing, dosing and mixing ƒ Bluetooth 4.0 for RAVAS WeightsApp Top quality Advanced functions FUNCTIONS STANDARD SPECIFICATIONS ƒ Automatic and manual zero correction ƒ...

  • Page 11: Indicator Functions

    1 (option multi range) low bat indicator displayed weight is in range 2 (option multi range) displayed weight is in range 3 (option multi range) www.ravas.com...
  • Page 12 And change to lb and kg switch clear entry Important Operation of a key is not accepted unless the weighing system is stable (and the “load stable” pointer lights up). This means that the indicator only executes commands with a stable load. www.ravas.com...

  • Page 13: Indicator Calibration

    Net / Tare / Gross weight EXPLANATION: Net(1) + Tare(2) = Gross(3) Net weighing: automatic tare ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB The indicator is set to zero. The “NET” pointer shows that the tare weight is activated. www.ravas.com...
  • Page 14 KG/LB ID CODE TOTAL KG/LB The gross weight is displayed again. NOTE: for OIML approved RAVAS 320 the tare will be erased automatically when the weight returns to gross zero! For the next weighing the tare must be activated again.
  • Page 15 Press the up or down key until the desired value is reached. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up Press ENTER or down key to activate the until the tare weight. desired value is reached. www.ravas.com...
  • Page 16 ID CODE TOTAL KG/LB The “NET”pointer lights up. ID CODE TOTAL KG/LB NOTE: for OIML approved RAVAS 320 the tare will be erased automat- ically when the weight returns to gross zero! For the next weighing ID CODE TOTAL KG/LB the tare must be activated again.
  • Page 17 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the TOTAL key to add the load weight to the total weight. If a printer is installed, a printout will be made. The gross, net and tare weights are printed. www.ravas.com...
  • Page 18 NOTE: In case the total is not manually used or reset, the system will do this automatically as soon as the total number has reached 99 or as soon as the total weight has reached a value of 99999 kg. www.ravas.com...

  • Page 19: Touch Panel Indicator

    ▼ displayed weight is in range 1 ▼ displayed weight is in range 2 ▼ displayed weight is in range 3 stp1 ▼ setpoint 1 is activated stp2 ▼ setpoint 2 is activated www.ravas.com...
  • Page 20 “load stable” pointer lights up). This means that the indicator only executes commands with a stable load. WARNING When the weighed load surpasses the pre-set maximum, the display shows: “ERR02”. In order to prevent damage to the indicator or load cells, the weighing system must be unloaded immediately. www.ravas.com...

  • Page 21: Printer (Opton)

    34.5 kg 1200.0 kg PcWt 1.234 kg. 12345 PCs PcWt 1.234 kg 12345 PCs 10/07/03 17:45 10/07/03 17:45 Total printout (always without code) Tot. B/G 1234.5 kg. Tot. T 34.5 kg. Tot. N 1200.0 kg. Tot. Nr. 10/07/03 17:45 www.ravas.com...

  • Page 22: Relay (Option)

    Four different applications are possible; 1 – overload check gross weight 2 – overload check net weight 3 – dosing/filling with manual tare & start 4 – dosing/filling with auto tare & start OVERLOAD CHECK Gross Weight / Net Weight www.ravas.com...
  • Page 23 Press  to change to the next digit.  Repeat this procedure until the required value is displayed.  Press  to accept the new value.  The set-point value is activated and the display returns to the weighing mode.  The display shows “tare”.  www.ravas.com...
  • Page 24 1 is on. Press  to accept the old value.  The value for set-point 1 is activated. The display shows the last entered value  for set-point 2 with the left digit blinking. The pointer for set-point 2 is on. www.ravas.com...
  • Page 25 The relays are closed. Pointers stp1 and/or stp2 will be turned on. Press the CE key to stop the procedure.  The display shows “done” for a few seconds and will return in the normal  weighing mode. The net weight is displayed.  www.ravas.com...

  • Page 26: Troubleshooting

    If the indicator shows the same reading, the load scale will give different cells are OK. reading depending Tap with a hammer onto the load cells. Do not be how it is loaded. afraid to break it. Repeat the test for each load cell. www.ravas.com...
  • Page 27 Move the board and but pressure with fingers on the with which we potentiometers while looking at the display to see if it calibrate the output of reacts. Do not touch the contact itself. the load cells are mechanical parts and are sensitive to humidity, shocks and vibration. www.ravas.com...
  • Page 28 Take out the battery pack and replace to see if it starts up afterwards. Not summing Operator error Load is not stable. Scale needs to be unloaded before accepting new print. System will not print weights that are smaller than the graduation. www.ravas.com...
  • Page 29 OimL Automatic Action not allowed (only legal for trade version) ntEP Automatic Audit trail no out of range SCALL Contact RAVAS Service department Contact Wrong combination of firmwares ESoFt your dealer EConF P96 not set Contact your dealer ERROR MESSAGES RELATED TO INDICATOR 320-BLE ONLY...

  • Page 30: Parameter Settings

    If no change was made, the display will return into the normal weighing mode. In the following pages the different parameters are explained and the standard settings are given. Parameters that are not used yet will not be accessible or displayed with underscores. www.ravas.com...
  • Page 31 8 (net overload delayed), 9 (gross overload delay not authorize to change gross setting), 10 (net overload delay not authorize to change net setting),11 (gross overload+errors), 12(gross overload+err, no changes allowed), 13(gross overload+err, delayed), 14(gross overload+err, no changes allowed, delayed) www.ravas.com...
  • Page 32 Number of linefeeds comport Handshake com1 soft (Xon/Xoff);hard (CTS) soft printout format for com1 and stand;total;conf stand com2 header lines added 0 - 3 Baudrate comport 2 600-1200-2400-4800-9600-19200 9600 Databits comport 2 8_n_1;8_n_2;7_n_1;7_n_2;7_E_1;7_E_2;7_o_1;7_o_2 8_n_1 32-33 Not used End character comport 2 CR/LF/CRLF www.ravas.com...
  • Page 33 0= always on 63-64 Not used Auto shut off time backlight 0; 20; 40; 80; 160; 320 seconds Backlight brightness 100; 75; 50;20;0 % Not used Buzzer function No/yes Disable keys 2, 3 and 4 (only if P16= active) www.ravas.com...
  • Page 34 New delivered boards will have the EU settings. Recall factory settings calibration Read out last 10 error messages Not used Factor used only 00000 Printout parameter setup Pr-C1: Pr-C2 Pr-C1 Key test function (buzzer and Scale ID number 0-999 Firmware version (last available version 215A www.ravas.com...
