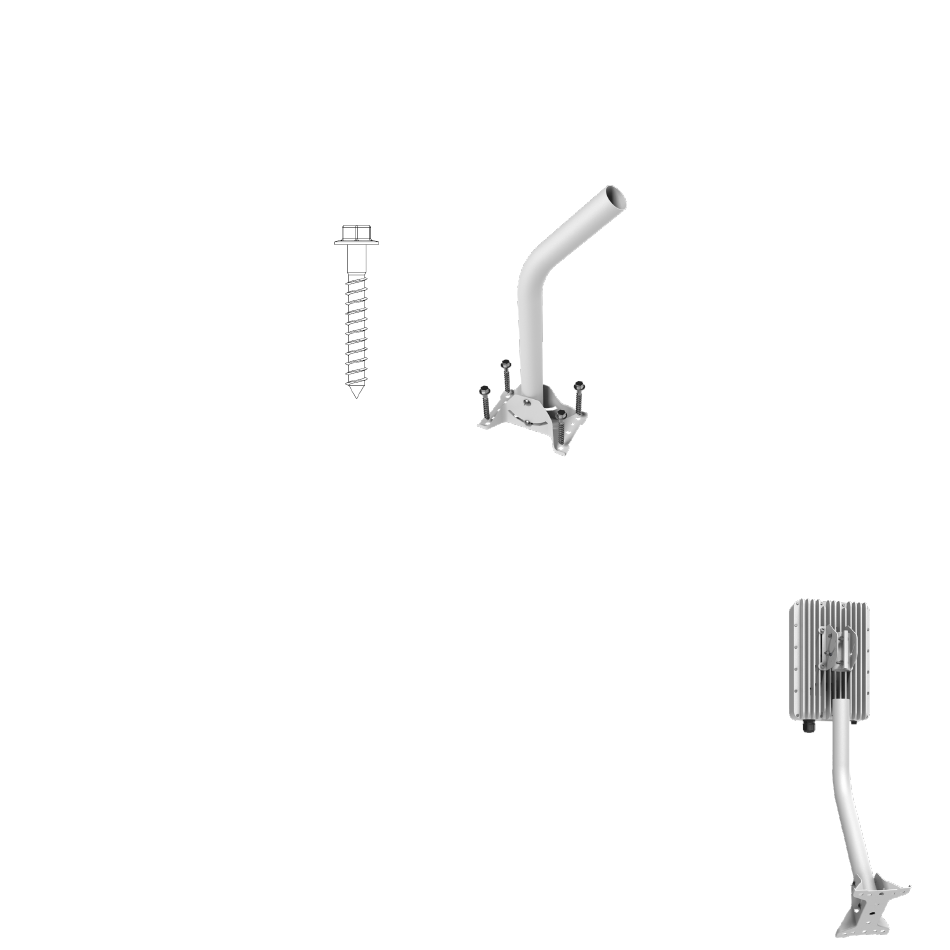

Securing the J-arm mount
The J-arm mount is adjustable and can be mounted on vertical, horizontal, and slanted
exterior surfaces.
The mount is attached using the four roof mount lag screw in the corners of the base.
1. Pre-drill holes in the surveyed location.
2. Attach the mount using a hex driver to tighten the lag screws.
NOTE: Concrete anchors are provided if mounting to concrete or brick.
Attaching the device to the J-arm mount
1. Attach the device elevation bracket to the J-arm mount and tighten
the square neck bolts along the back to 2.0 Nm (1.48 ft/lb) using a
ratcheting socket wrench.
2. Secure the ground wire to an appropriate earth ground.
Roof mount lag screw
