Option #3: Wall Mount Installation

Holes for M6 21mm bracket
mount bolts and washers (4)
Zenith bracket
Hex flange head bolts
with PEM nuts zenith
to azimuth bracket (4)

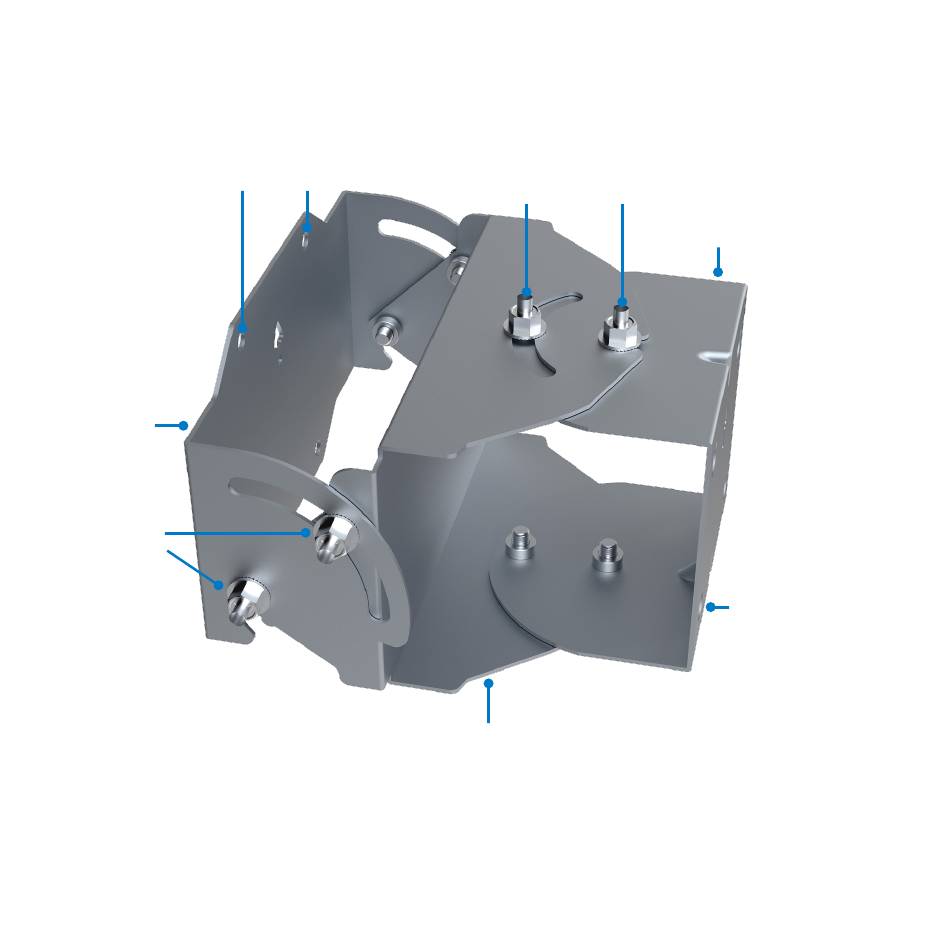

Assembling the wall mount bracket

1. Attach the azimuth bracket to the zenith bracket using four flange head bolts and
PEM nuts.
2. Attach the azimuth bracket to the wall bracket using four flange head bolts and PEM
nuts.
Hex flange head bolts
with PEM nuts azimuth
to wall bracket (4)
Azimuth bracket
Wall bracket
Hole for hex flange lag bolts (4)
