Pre-installation

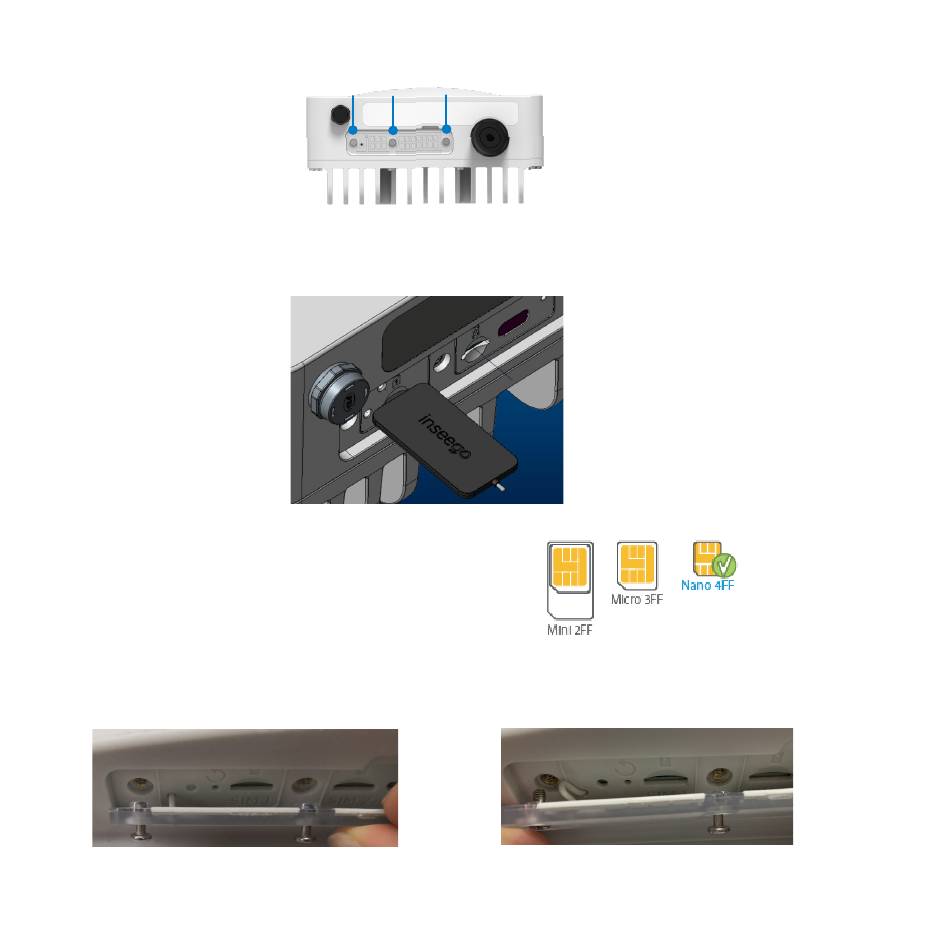

1. Unscrew the protective shield over the SIM slots using a Phillips-head screwdriver.
2. Use the included SIM tool to insert a Nano 4FF SIM card into the appropriate SIM slot.
Be careful to not use excessive force.
NOTE: This device supports only Nano SIM cards.
3. Reattach the protective shield cover to a torque of 0.49 Nm (0.36 ft/lb), making sure
the tether passes through the hole of the rear housing and is not bent or bunched.
Correct tether placement
WARNING! If the tether is bunched, it could prevent the compartment from being effectively sealed.
Incorrect tether placement
3
