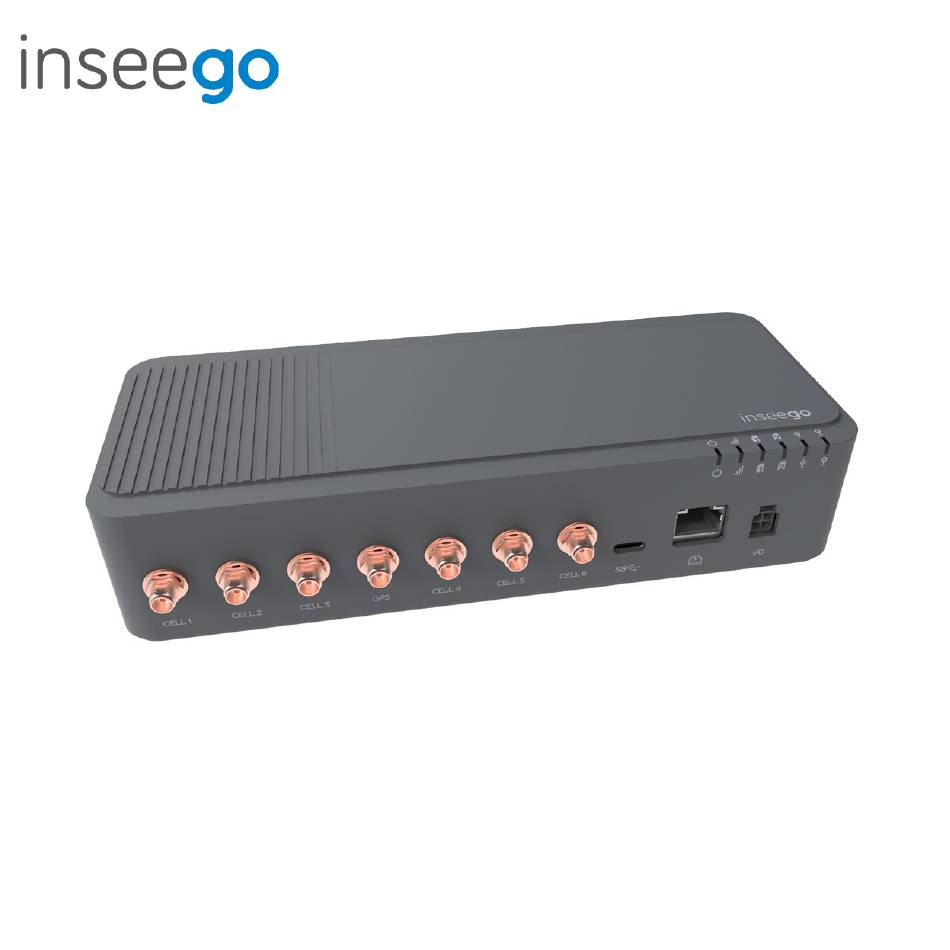

- Page 1 Inseego Wavemaker PRO 5G Industrial Gateway S2000e Quick Start Guide...
-

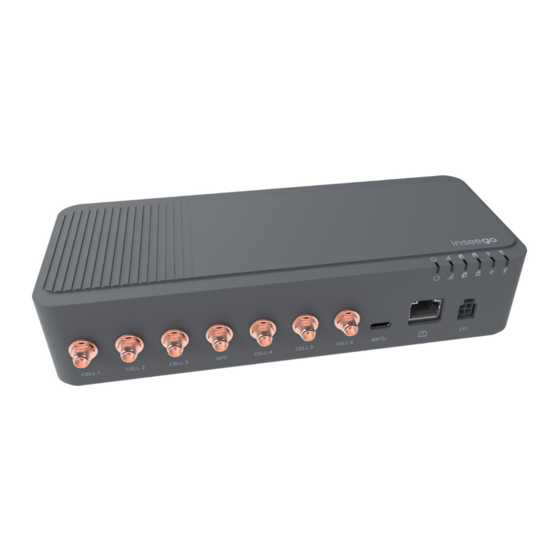

Page 2: Front View
This guide provides instructions for setting up, connecting, and configuring your 5G Industrial Gateway S2000e. Front View LED Indicators Cellular Signal SIM2 Device Status SIM1 GNSS GNSS Connector for L1/L5 Coverage Six Cell Connectors 2.7Gbps USB 3.1 Type C - Supports 4-Pin Power and GPIO External USB Modem, Tethering, 5Gbps Ethernet with... -
Page 3: Indicator Leds
Indicator LEDs LED Color Operation Meaning Device Status Solid Starting Up or Updating White Slow Blink* Low Power Mode Solid Device On, No Connection Yellow Solid Device On, External Connection Green Solid Device On, Internal LTE Connection Blue Solid Device On, Internal 5G Connection Cellular Signal Solid RSRP >/= -102 dBm... -
Page 4: Setting Up Your
This guide provides instructions for setting up, connecting, and configuring your 5G Industrial Gateway S2000e. Setting Up Your S2000e One: Install SIM Cards Step • Lift the tab to open the SIM cover on the back of the device. Dual 4FF Nano SIM •... - Page 5 Two: Connect Antennas Step Torque all applicable antennas to 5 in-lbs to securely fasten.
- Page 6 Mount Bracket Kit) – DIN rail (DIN Rail Mount Bracket Kit) NOTE: For information on installation options, see the User Guide available online at https://www. inseego.com/download/S2000e_user_guide.pdf. • Use the Inseego Mobile App to orient and fine tune antennas for the best signal.
- Page 7 Once your 5G Industrial Gateway is connected to a device that supports web browsing, you can use multiple options to monitor and manage your 5G Industrial Gateway: Inseego Mobile App - Use the same mobile app you used to install – your S2000e to perform basic device monitoring and management.
- Page 8 WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH ACTION MAY VOID THE WARRANTY. THE DEVICE IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR TUNING IS REQUIRED. CONTACT INSEEGO TECHNICAL SUPPORT FOR INFORMATION ABOUT SERVICING YOUR WIRELESS COMMUNICATION DEVICE.
- Page 9 © 2021 Inseego Corp. All Rights Reserved. PN 14945396 Rev 1...
